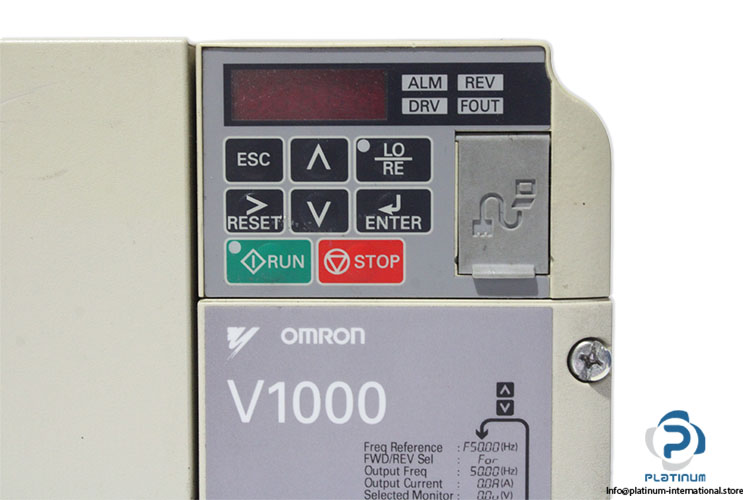

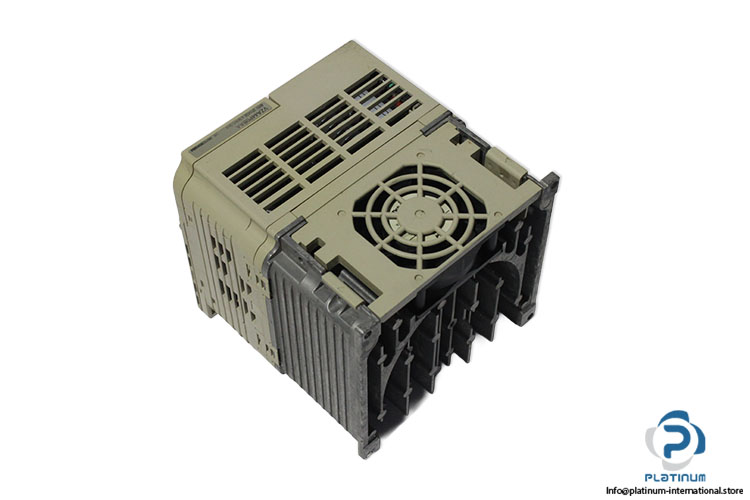

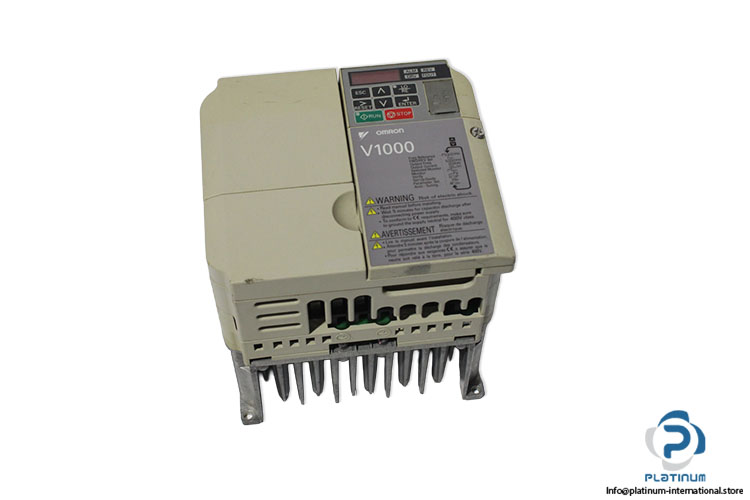

Yaskawa CIMR-VZ4A0011BAA AC Frequency Drive
Used
In stock1 unitReady to ship
Compact Vector Control Drive Yaskawa V1000 compact vector control drive with three-phase 380–480 V AC input, up to 5.5 kW motor capacity, and variable frequency output up to 400 Hz for industrial motor control and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

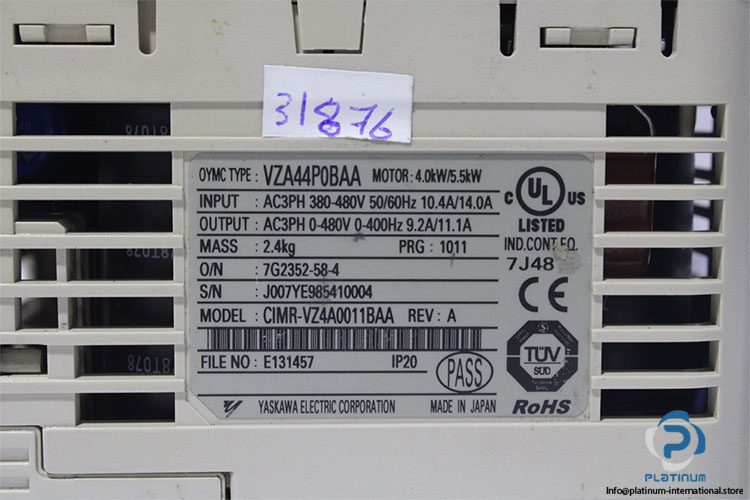

| Series | V1000 |
| REV. | A |
| Part No. | 7G2352-58-4 |
| Serial No. | J007YE985410004 |
| Progress No. | 1011 |
| File No. | E131457 |

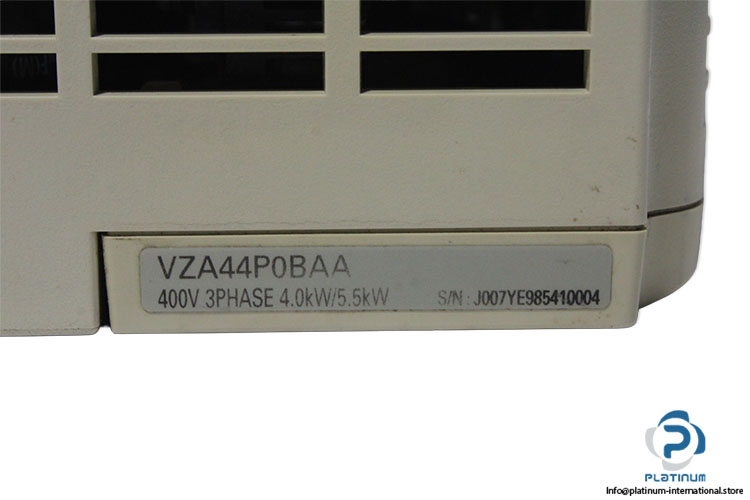

| OYMC Model | VZA44P0BAA |
| Input Voltage | 380 to 480 V AC/3-phase |
| Input current | 10.4 A/14 A |
| Input frequency | 50/60 Hz |
| Output Voltage | 0 … 480 V AC/3-phase |
| Output Frequency | 0 … 400 Hz |
| Output Current | 9.2A/11.1A |
| Motor Power | 4.0kW/5.5kW |
| Protection degree | IP20 |
| Ambient temperature | -10 to +50°C |
| Certificate | TUV, cULus, CE, ROHS |
| Dimensions | 128 x 140 x 143 mm |
| Condition | Used |
| Stock Key | CON003 |
| SKU | 1098001 |
| Weight | 2,13 |
