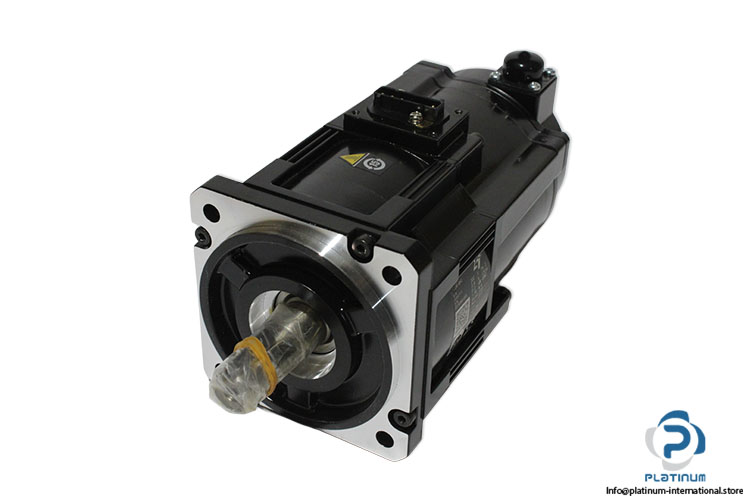

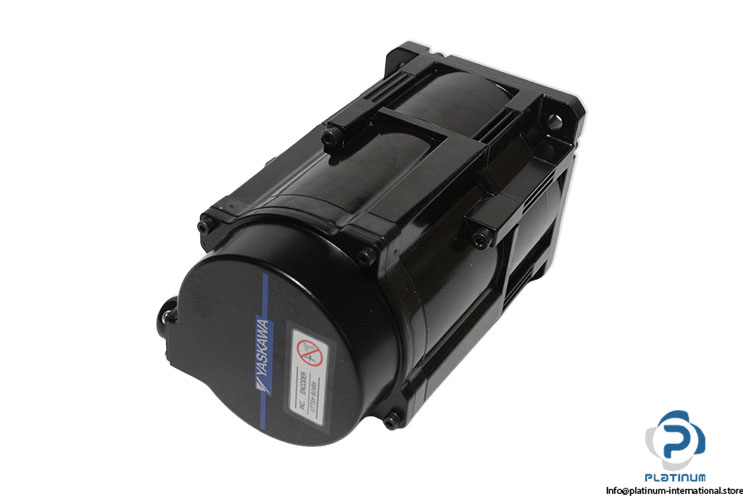

Yaskawa SGM7G-03AFA6C AC Servomotor

In stock2 unitsReady to ship

AC Servomotor YASKAWA AC servomotor with 0.3 kW rated output, 24-bit incremental encoder, integrated 24 VDC holding brake, and precision motion control performance for industrial automation applications.

Manufacturer
YASKAWA
SKU
1100383
Category
Servo Motors
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

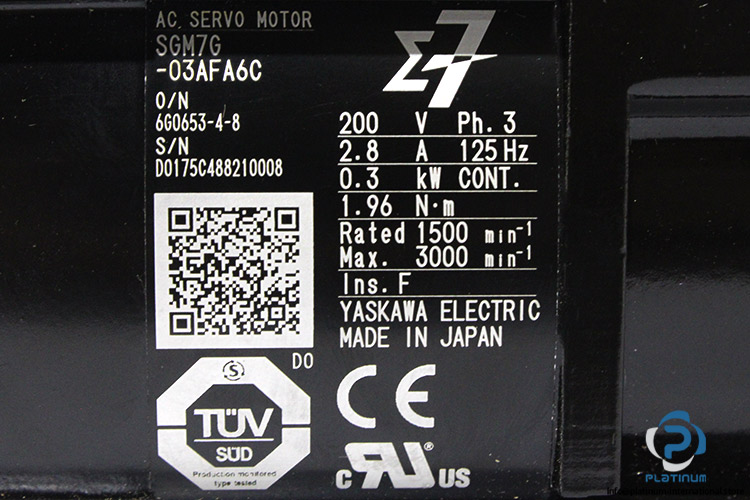

Part No.6G0653-4-8
S/ND0175C488210008
Input power supply200 V
Rated output0.3 kW
Rated Current2.8 A
Frequency125 Hz
Shaft endStraight with key and tap
Encoder resolution24 bit
Rated torque1.96 Nm
Instantaneous maximum torque5.88 Nm
Rated Motor Speed1500 1/min
Maximum motor speed3000 1/min
Motor Moment of Inertia2.48 x10?4 kg·m²
Flange Dimension (LC)90 mm
Flange Diameter (LA)100 mm
Shaft End Diameter (S)16 mm
Shaft End Length (Q)30 mm
Encoder typeIncremental
OptionsWith holding brake (24 VDC)
Height45 mm
Width90 mm
Depth199 mm
CertificationTÜV SÜD
StandardCE

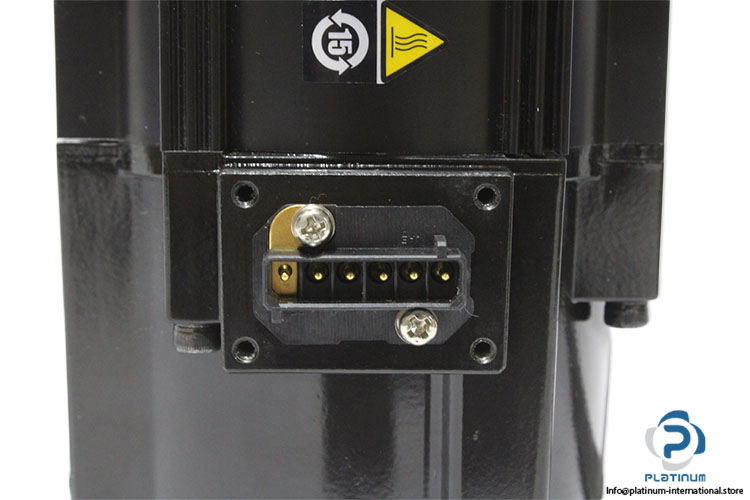

ConnectionRectangular Plug Connector power
Encoder ConnectionEncoder circular connector

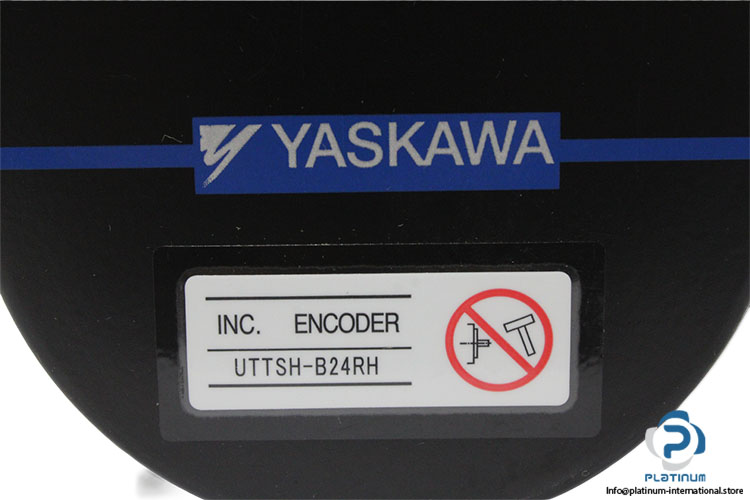

Attached withUTTSH-B24RH INC. ENCODER
Stock keyCON003
ConditionNew
SKU1100383
Weight4,26
