Yaskawa SGMSH-20DCA6F-OY AC Servo Motor
New
Available on request
AC SERVO MOTOR
Yaskawa SGMSH-20DCA6F-OY is a super high power rate 2 kW AC servo motor with 6.36 Nm rated torque, 400 V input, 3000 r/min speed, and 17-bit encoder options for high-precision control.2kW400VAbsoluteACAutomationCompatibleDriveEncoderFlange-MountedHighIncrementalIndustrialmotorPowerServoSGMSH-20DCA6F-OYSuperTorqueYaskawa
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

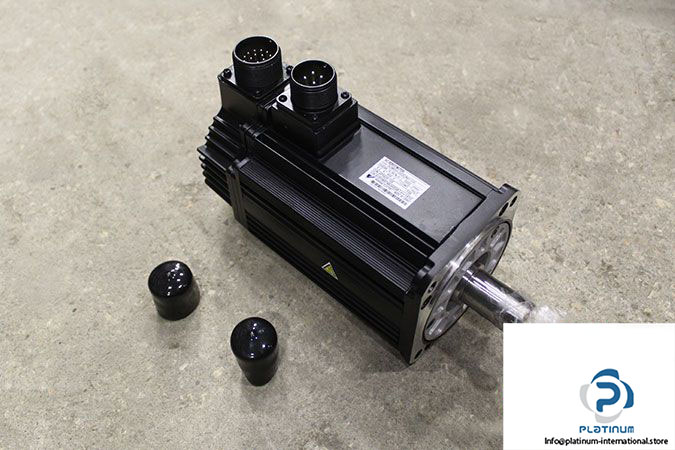

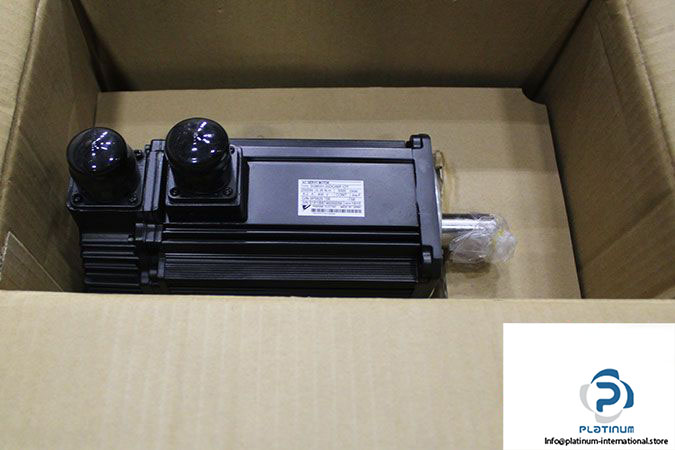

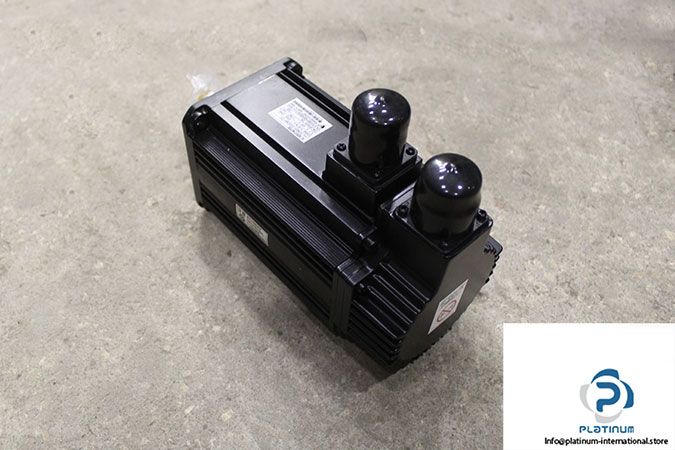

YASKAWA SGMSH-20DCA6F-OY AC SERVO MOTOR
The SGMSH-20DCA6F-OY from Yaskawa Electric is a super high power rate AC servo motor engineered for dynamic precision, high torque, and durability in continuous industrial operations. It features advanced encoder options, flange mounting, and superior torque characteristics.
Manufacturer: Yaskawa Electric
Type: AC Servo Motor

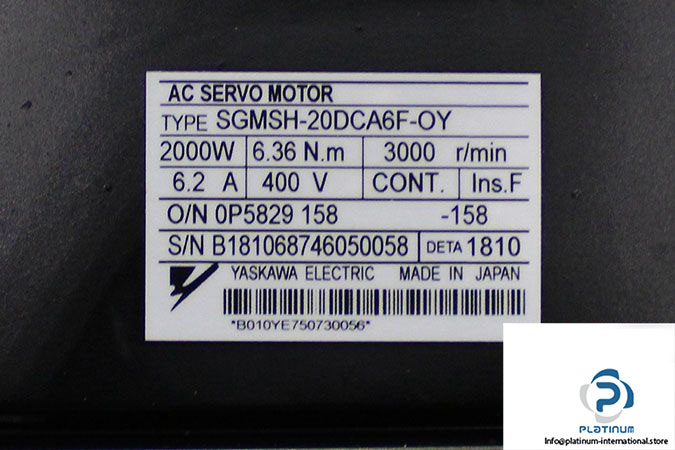

Model: SGMSH-20DCA6F-OY
Order No.: 0P5829 158-158
Serial No.: B181068746050058
Ref No.: B010YE750730056
| Motor Type | SGMSH (Super High Power Rate Type) |
| Rated Voltage | 400 V |
| Rated Current | 6.2 A |
| Rated Speed | 3000 r/min |
| Max. Speed | 5000 r/min |
| Rated Power | 2 kW |
| Rated Torque | 6.36 Nm |
| Torque Constant | 1.12 N·m/A |
| Instantaneous Peak Torque | 19.1 Nm |
| Instantaneous Max. Current | 19.5 A |
| Applicable Encoder | Standard: Incremental Encoder (17 bits); Optional: Absolute Encoder (17 bits) |
| Design | Shaft End, Straight, Key, Tapped |
| Brake / Oil Seal | Dust Seal |
| Time Rating | Continuous |
| Ambient Temperature | 0 to +40 °C |
| Insulation Class | F |
| Mounting | Flange-Mounted |
