Yokogawa EJA110E-JHSWJ-914NN Pressure Transmitter
New
In stock1 unitReady to ship
999,99$

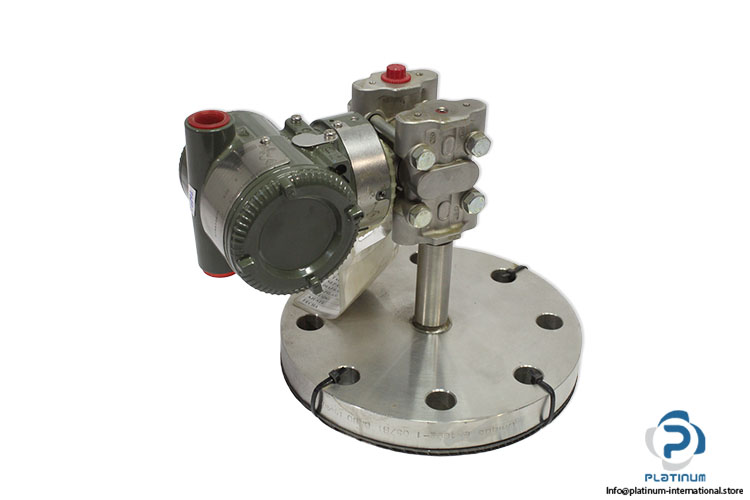

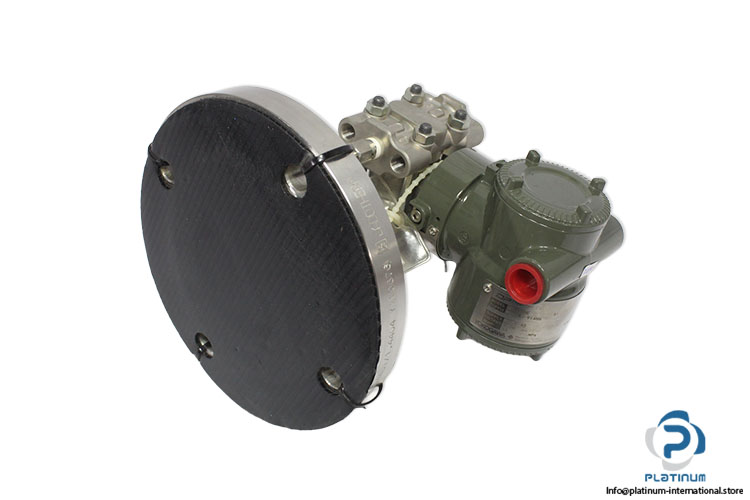

YOKOGAWA EJA110E Dpharp Pressure Transmitter The YOKOGAWA EJA110E Dpharp Pressure Transmitter is a high-accuracy differential pressure transmitter designed for critical industrial process measurement applications. Featuring advanced digital sensing technology, SIL2/SIL3 certification, 316L stainless steel wetted parts, and fast 90 ms response time for reliable performance.
3164-20mAAutomationDevicedifferentialIndusIndustrialInstrumentationLevelMeasurementPressureProcessSensorSSTTransmitter
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Style | S1 |
| SN | 91RA19574 |

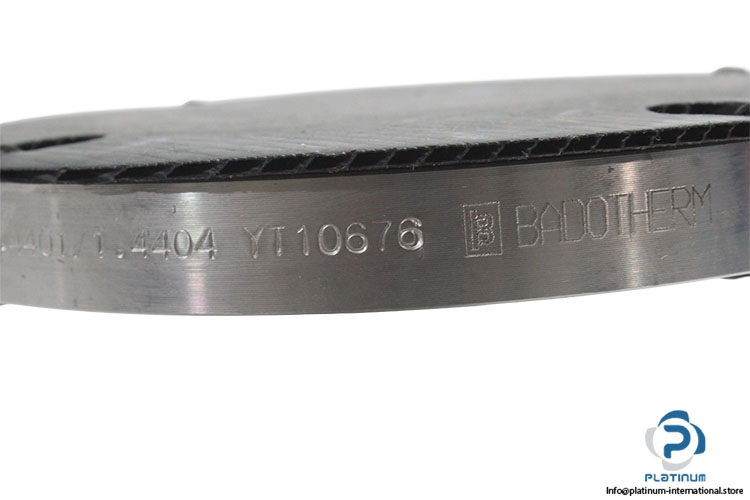

| Code | YT10676 |

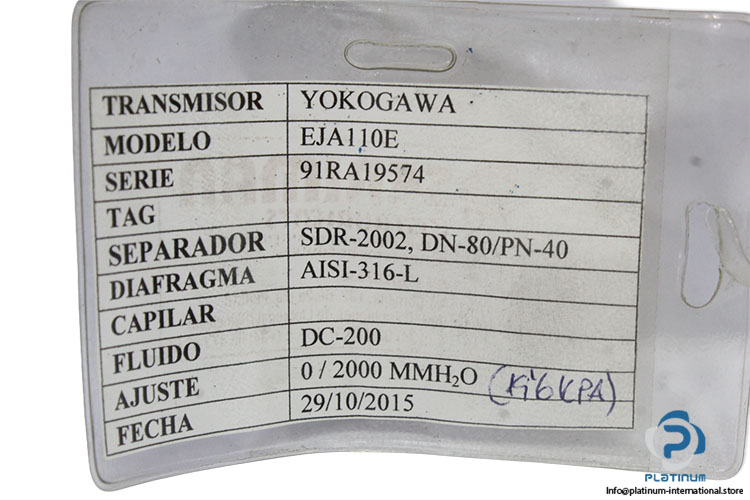

| SUFFIX Code | JHSWJ-914NN |

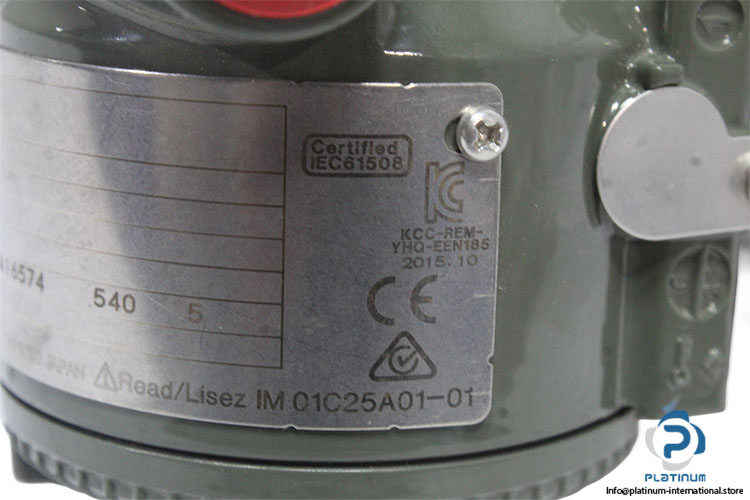

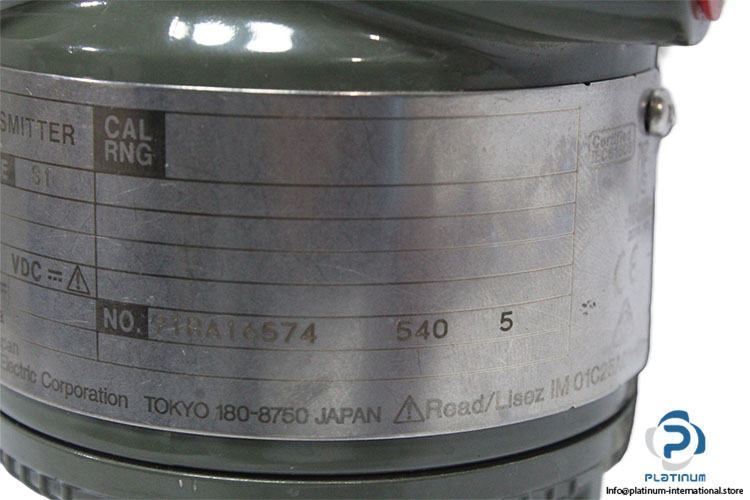

| Ref No | 91RA16574 540 5 |
| Separator | SDR-2002, DN-80/PN-40 |
| Diaphragm | AISI-316-L (316L Stainless Steel wetted parts) |
| Fluid | DC-200 (Silicone oil fill) |
| Adjust | 0 / 2000 mmH2O (19.6 kPa) |
| Max. operating pressure | 16 Mpa |
| Supply voltage | 10.5-42 vdc |
| Output Signal | 4-20 mA |

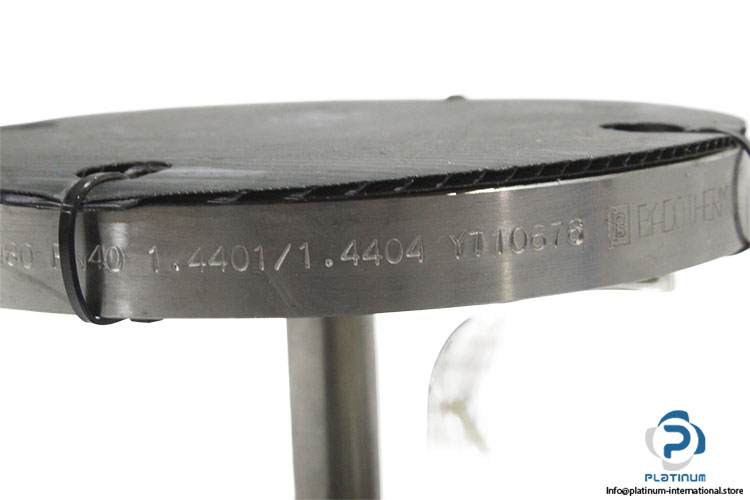

| Material | 1.4401/1.4404 |
| Wetted Parts Materials | 316L SST |
| Measurement Range | 5 … 500 KPA |
| Amplifier housing | Cast aluminum alloy |
| Nut Material | carbon steel |
| Electrical Connection | M20 |

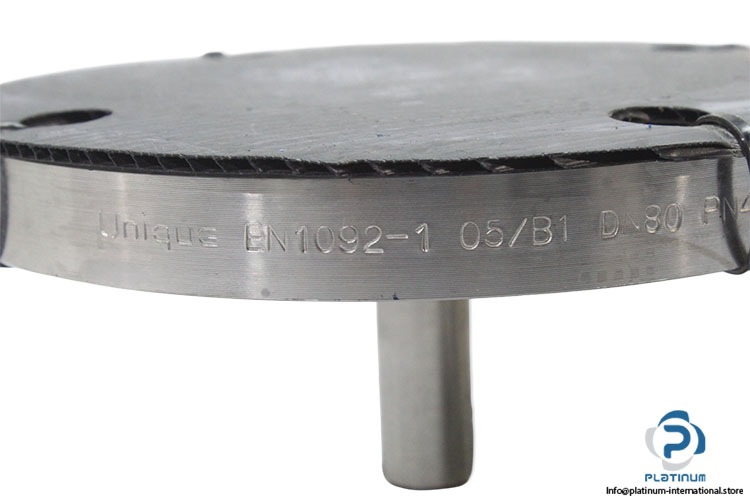

| Standard | EN1092-1 |
| Accuracy | 0.055% (0.04% Accuracy optional) |
| Stability | 0.1% Stability |
| Response Time | 90 ms |
| Certified | Exida and TUV SIL 2 / SIL3 |
| MWP | 2,300 psi (MWP 3,600 psi option) |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1099036 |
| Weight | 11,75 |
