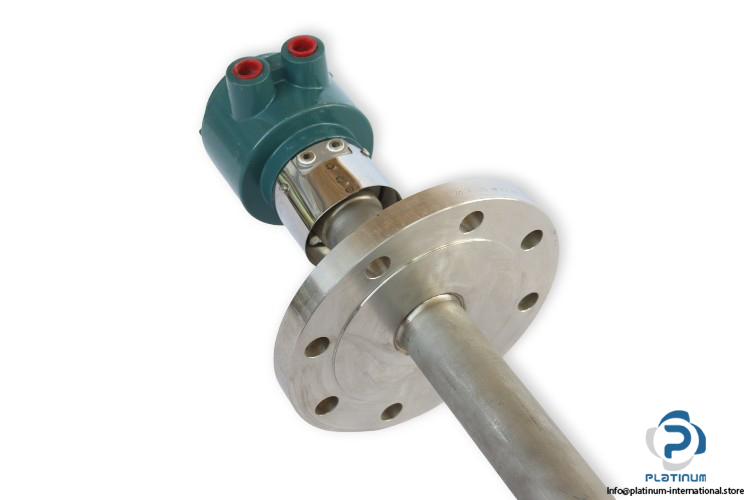

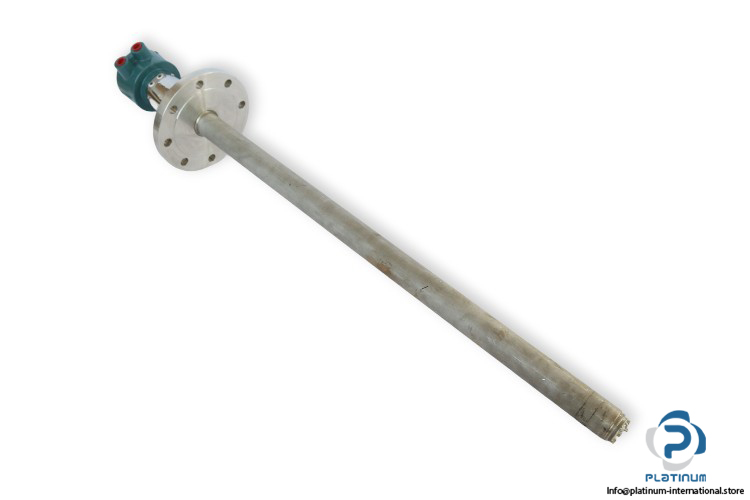

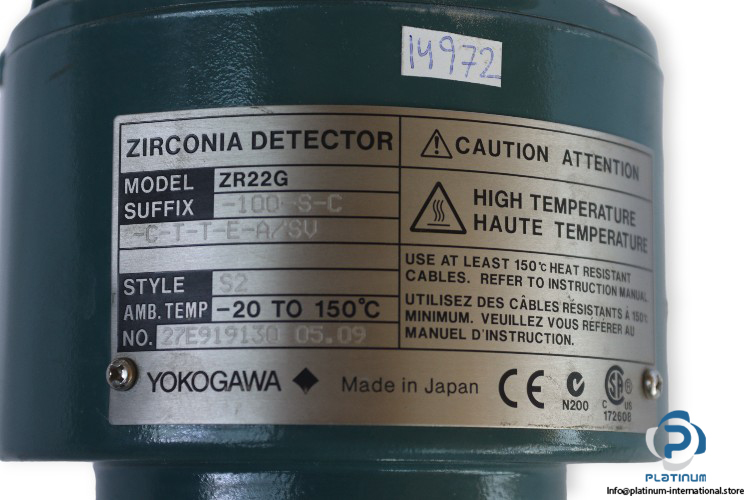

YOKOGAWA ZR22G-100-S-C-C-T-T-E-A/SV OXYGEN & HUMIDITY ANALYZER DETECTOR

Manufacturer: YOKOGAWA
Type: Oxygen & Humidity Analyzer Detector
Model: ZR22G100SCCTTEASV

Series: ZR22G
Measurement Object: Oxygen Concentration In Combustion Exhaust Gas and Mixed Gas (Excluding Inflammable Gases)
Measurement System: Zirconia System
Measurement Range: 0.01 … 100 vol% O2
Process Pressure: 1 … 16 Bar
Sample Gas Temperature: 0 … 700 °C
Sample Gas Pressure: -5 … 250 kPa
Output Signal: 4 … 20 mA
Load Resistance Max.: 550 Ω
Sensor Tube Length: 1 m

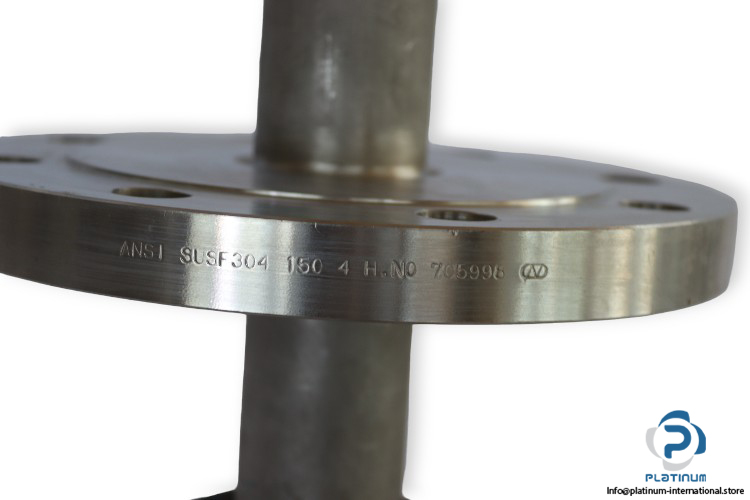

Flange: ANSI Class 150 4 RF
Gas Thread: 1/4 NPT (Female)
Connection Box Thread: 1/2 NPT
Material: Stainless Steel
Protection Class: IP66
Ambient Temperature: -20 … 150 °C
Length, Diameter: 1292, 124 mm
