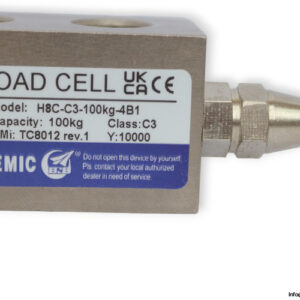

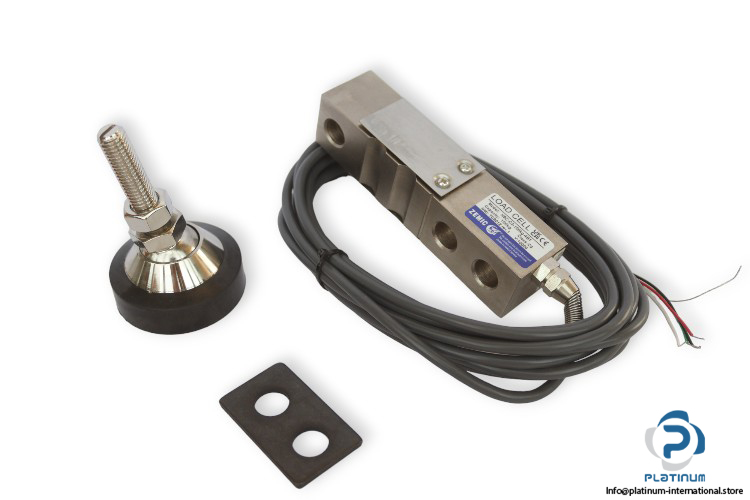

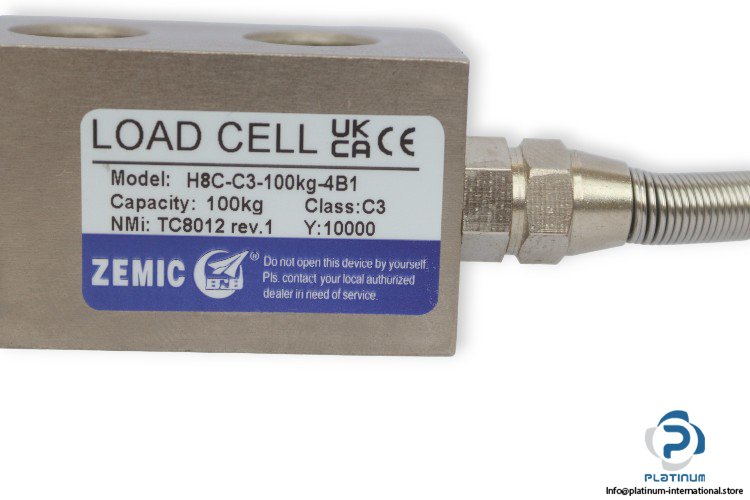

Zemic H8C-C3-100KG-4B1 Load Cell

Manufacturer: ZEMIC
Type: Load Cell
Model: H8CC3100KG4B1

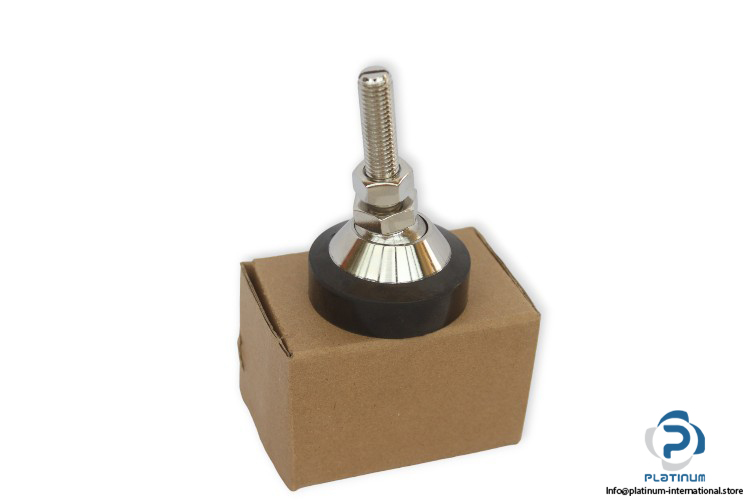

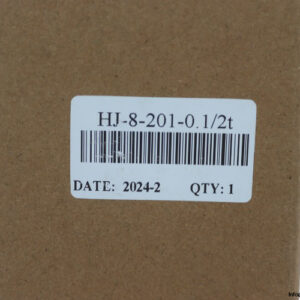

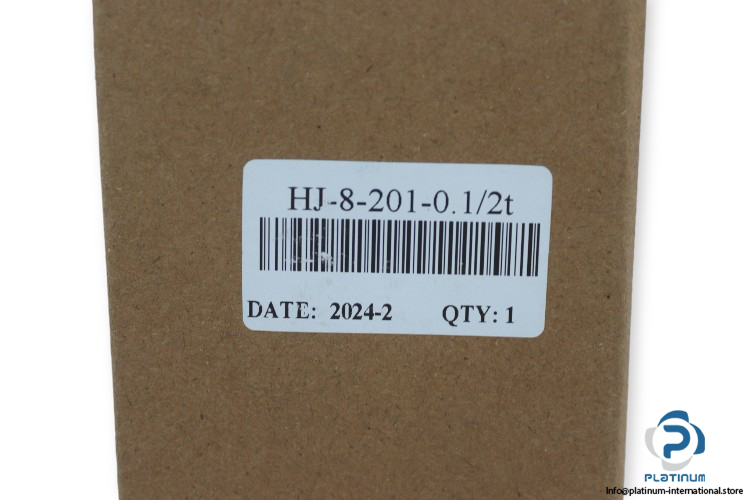

Foot Model: HJ82010.12T

Maximum Weight Limit (E Max): 100 Kg
Material: Nickel Plated Alloy Steel
Voltage Max.: 5 … 12 V
Output Sensitivity: 3.0 mV/V
Input/Output Resistance: 350 Ω
Cable Type: Shielded, 4 Conductor Cable, 4-Wire
Cable Diameter: 5.0 mm
Cable Length: 4 m
Cable Jacket: Polyurethane
Protection Class: IP67
Operating Temperature: -35 … 60 °C
Dimensions: 31.8 x 130 x 37 mm
Foot Diameter: 60 mm
Foot Dimensions: 92 x M12x1.75 mm
