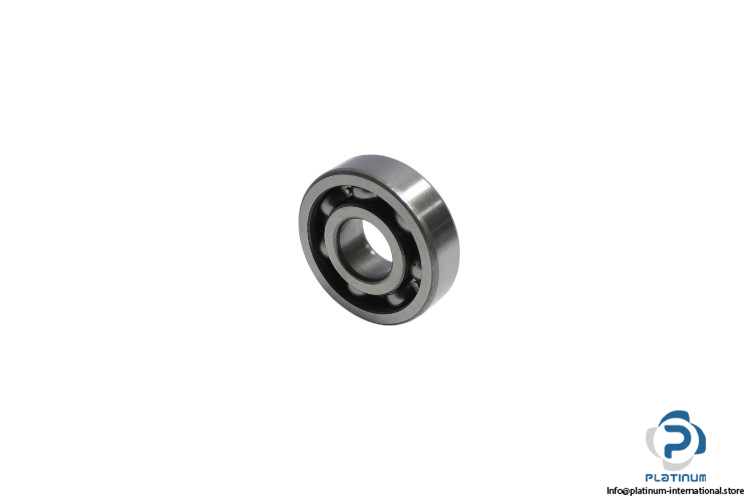

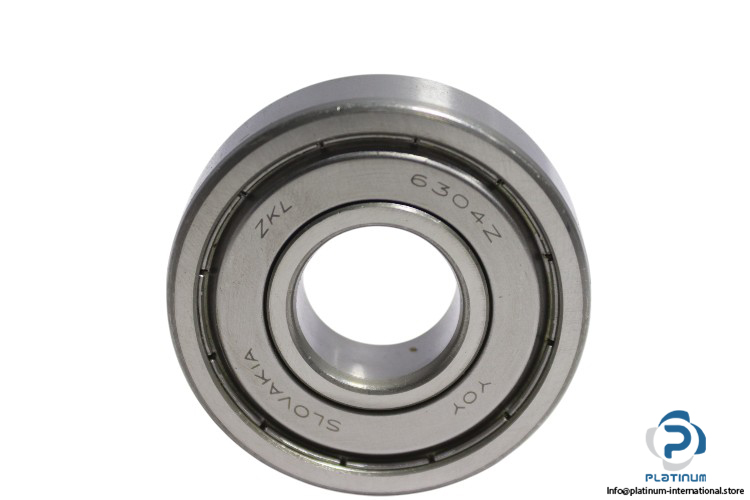

ZKL 6304 Z Deep Groove Ball Bearing
New
In stock6 unitsReady to ship
Deep Groove Ball Bearing
The ZKL 6304 Z is a high-speed deep groove ball bearing featuring a 20 mm bore, 52 mm outer diameter, and a Z shield on one side. Designed for efficient rotation and long service life in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
ZKL 6304 Z Deep Groove Ball Bearing
The ZKL 6304 Z Deep Groove Ball Bearing is designed for high-speed and low-friction performance, making it ideal for a wide range of industrial and mechanical applications. Featuring a Z-type shield on one side, it offers excellent protection against contaminants while maintaining efficient rotation at high speeds.
Manufacturer: ZKL
Type: Deep Groove Ball Bearing
Model: 6304 Z
| Bore Diameter (d) | 20 mm |
| Outer Diameter (D) | 52 mm |
| Width (B) | 15 mm |
| Dynamic Load Rating (Cr) | 16 kN |
| Static Load Rating (C0r) | 7.9 kN |
| Fatigue Load Rating | 0.36 kN |
| Reference Speed (Grease) | 14000 min»¹ |
| Reference Speed (Oil) | 17000 min»¹ |
| Sealing Type | Z, Shielded on One Side |
