ZKL NU 220/S00/C3 Cylindrical Roller Bearing
New
In stock1 unitReady to ship
Cylindrical Roller Bearing
ZKL NU 220/S00/C3 single-row cylindrical roller bearing with C3 clearance, high radial load capacity, and optimized internal design for heavy industrial applications. Ideal for gearboxes, motors, and high-load rotating machinery.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

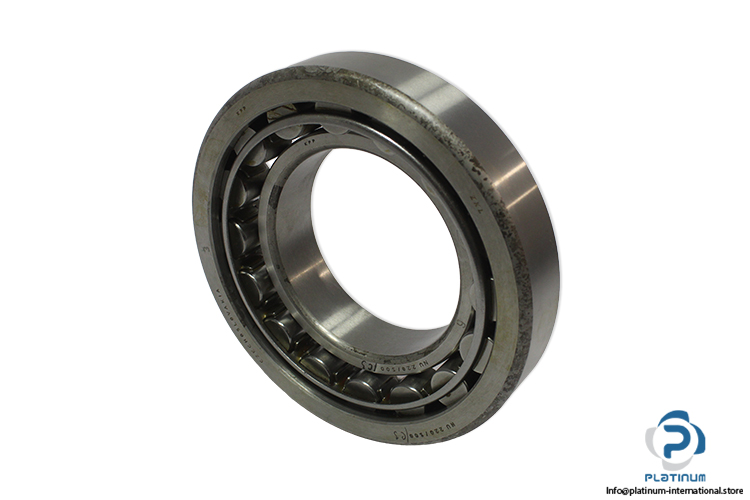

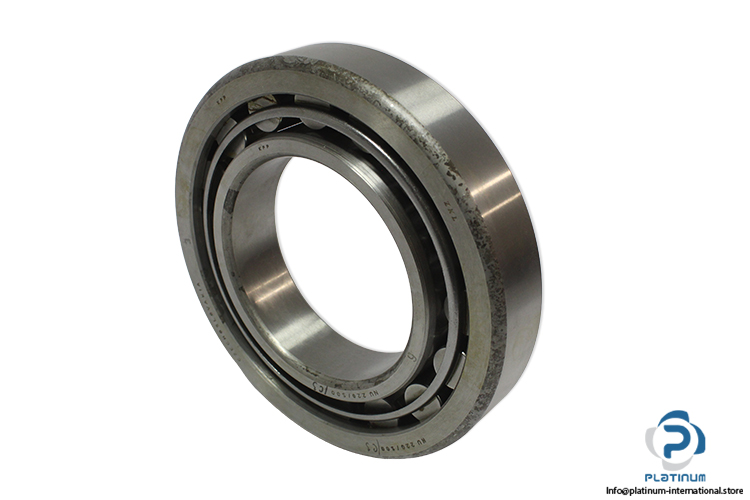

ZKL NU 220/S00/C3 Cylindrical Roller Bearing
The ZKL NU 220/S00/C3 is a single-row cylindrical roller bearing designed to support high radial loads and operate reliably under demanding industrial conditions.
Manufacturer: ZKL
Type: Single-row Cylindrical Roller Bearing

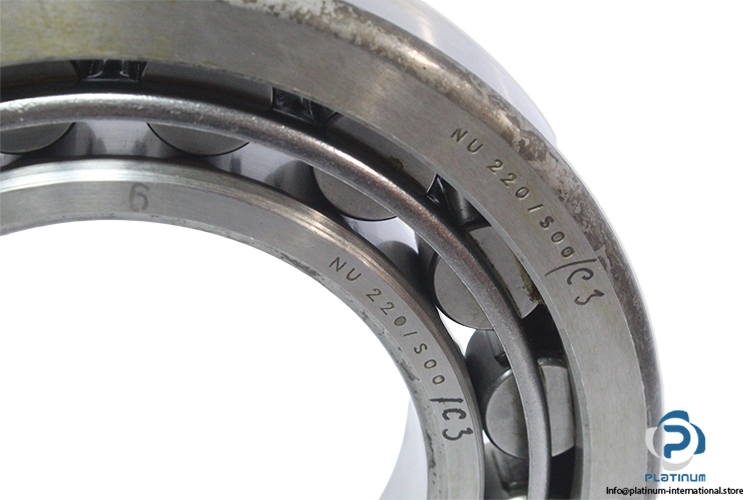

Model: NU 220/S00/C3
Recommended for heavy-duty gearboxes, electric motors, industrial pumps, and high-load transmission systems.
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter (d) | 100 mm |
| Outer Diameter (D) | 180 mm |
| Width | 34 mm |
| Dynamic Load Rating | 203000 N |
| Static Load Rating | 217000 N |
| Fatigue Load Limit | 23900 N |
| Limiting Speed (Grease Lubrication) | 22800 rpm |
| Limiting Speed (Oil Lubrication) | 27000 rpm |
| Clearance | C3 |
| Suffix | S00, Internal Design |
| Bearing Design | NU |
