ABB C561.13 Time Relay
Временное реле ABB TIME RELAY C561.13 — надежное и эффективное временное реле, обеспечивающее высокую производительность с высокими показателями изоляционного напряжения и точным управлением в требовательных условиях.

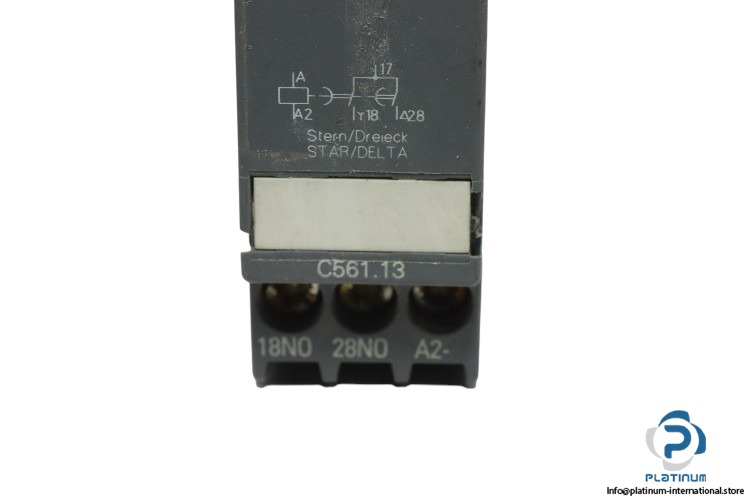

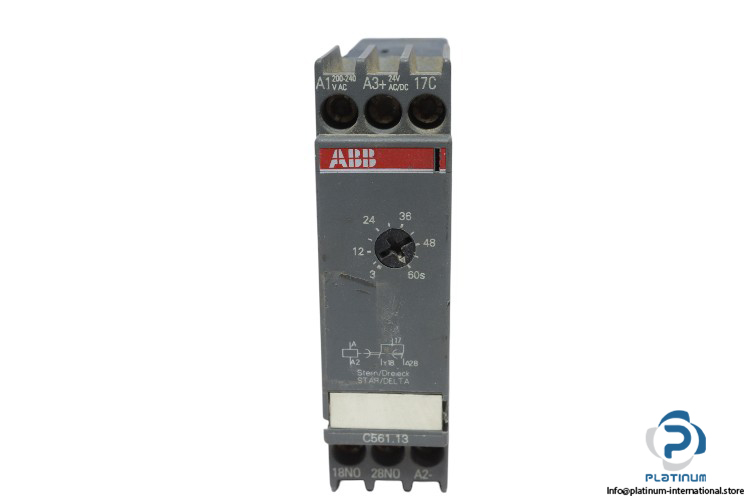

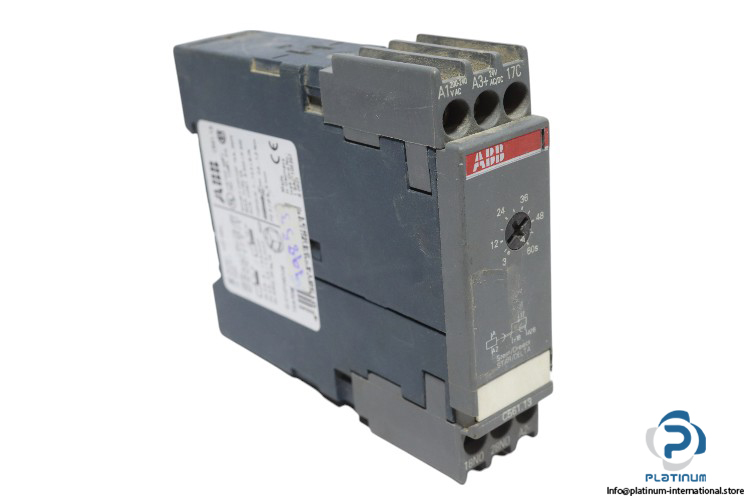

ABB TIME RELAY C561.13
The ABB TIME RELAY C561.13 is a reliable and efficient time relay designed for industrial and control applications. It offers robust performance with high insulation voltage ratings and is suitable for AC and DC circuits. This time relay ensures precise control in demanding environments where accurate time delay functions are essential.
Manufacturer: ABB
Model: C561.13
Part Number: G/010706D08
Type: Time Relay
Key Features:

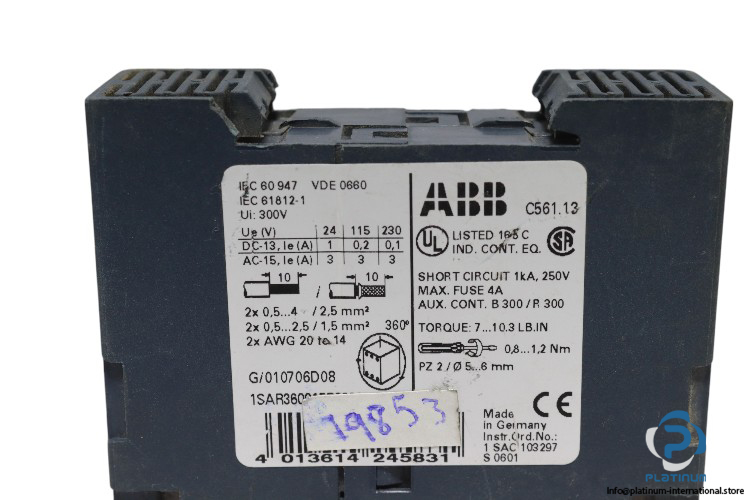

- Rated Insulation Voltage (Ui): 300V
- Rated Operational Current (le) DC-13:
- 1A (24V)
- 0.2A (115V)
- 0.1A (230V)
- Rated Operational Current (le) AC-15: 3A
- Short Circuit Rating: 1kA, 250V
- Maximum Fuse: 4A
- Wire Connections: 2x 0.5…4 / 2.5 mm², 2x 0.5…2.5 / 1.5 mm², 2x AWG 20 to 14
- Torque: 7…10.3 lb.in (0.8…1.2 Nm)
The ABB TIME RELAY C561.13 is designed for use in systems where high reliability and precise time delay control are necessary. With its robust construction and high voltage ratings, this time relay is ideal for demanding environments.
