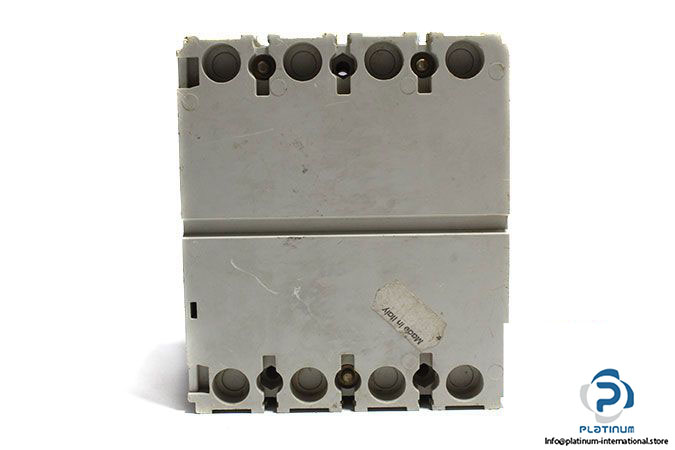

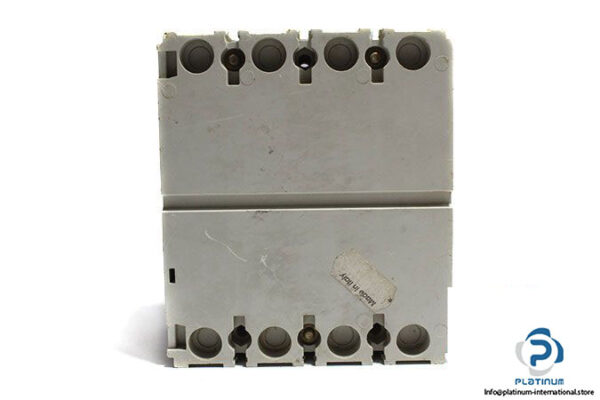

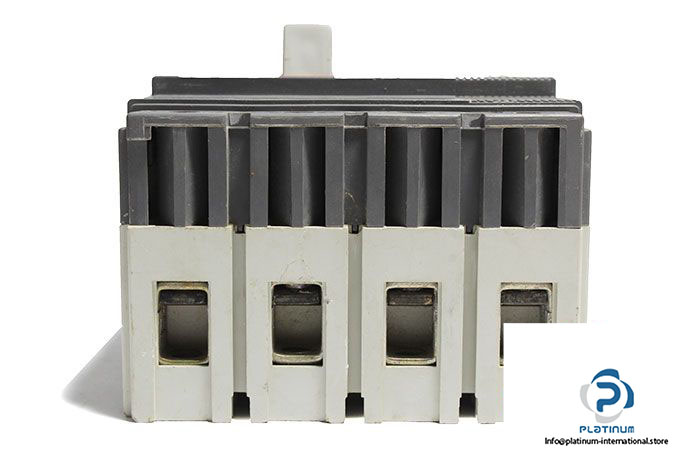

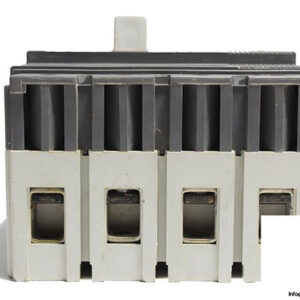

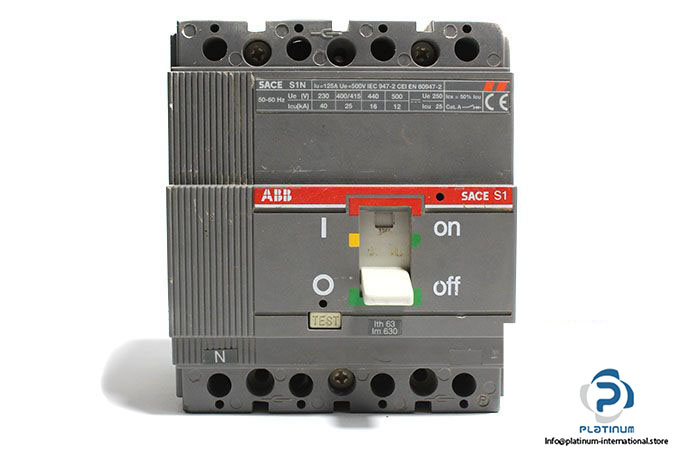

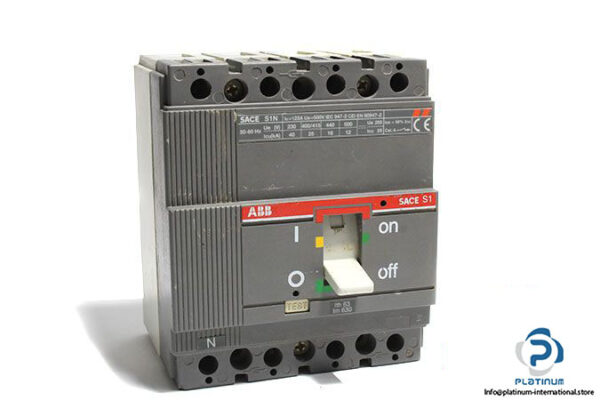

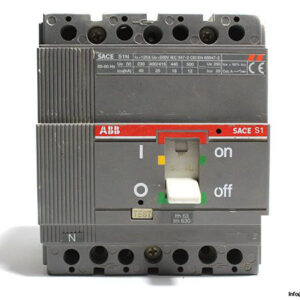

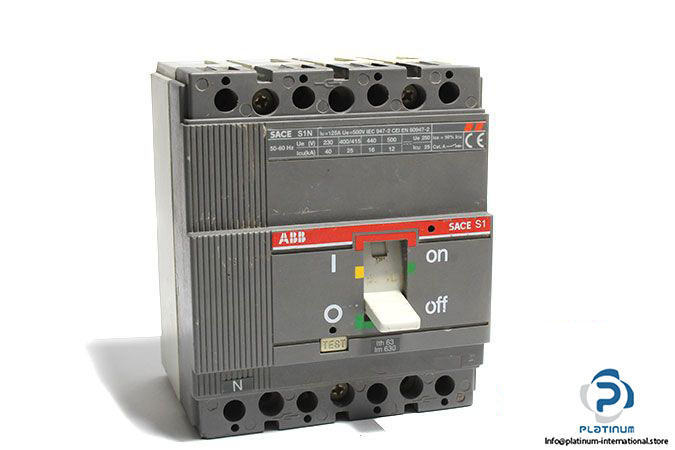

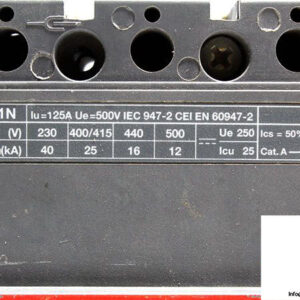

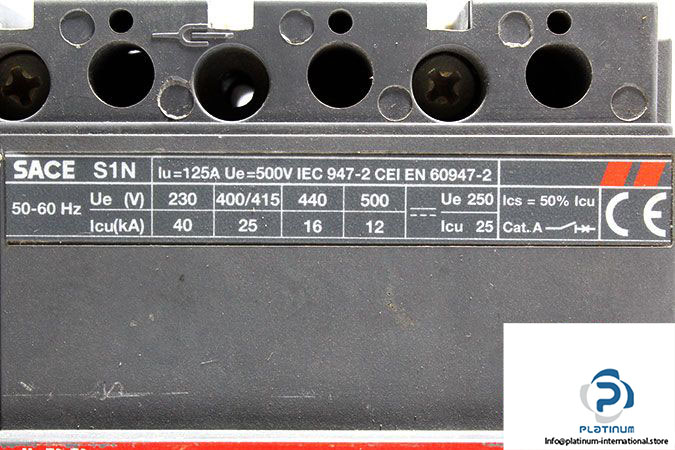

ABB S1N 125 MOULDED CASE CIRCUIT BREAKER 4-Poles

Manufacturer: ABB

Type: Moulded Case Circuit Breaker

Series: SACE Isomax S1

Model: S1N 125

Order Code: S1N 125 F FC Cu

Number of Poles: 4

Release: Thermomagnetic

Version: Fixed

Terminals: front terminals for copper cables

Rated Current (I_u): 125 A

Rated Voltage (U_e): 500 V AC / 250 V DC

Breaking Capacity (I_cu):

40 kA (230 V AC)

25 kA (380/415 V AC)

12 kA (500 V AC)

25 kA (250 V DC)

Short-Circuit Trip Current (I_m): 630 A

Service Frequency: 50/60 Hz

Dimensions (L x D x H): 103 x 70 x 120 mm

Protection Class: IP20

Operating Temperature: -25 … 70 °C

Weight: 1.2 kg
