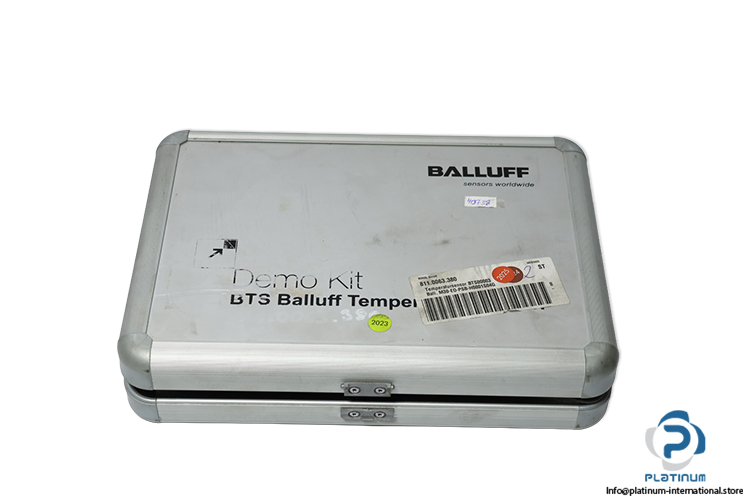

Balluff BTS0003 BTS M30E0-PSB-H0001-S04G Infrared Temperature Sensor
Новинка
В наличии1 единицаГотово к отправке
Contactless Infrared Temperature Sensor The BALLUFF BTS M30E0-PSB-H0001-S04G is an industrial infrared temperature sensor with a 250–1250 °C measuring range, PNP switching, and 4–20 mA analog output.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

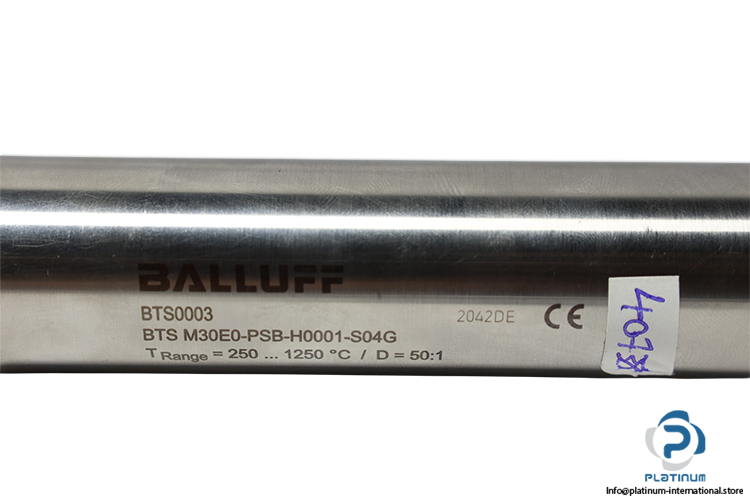

| Order Code | BTS0003 |
| Measuring Range | 250 … 1250 °C |
| Temperature Resolution | 1 °C / 1 °F / 1 % |
| Repeatability | ±1 °C |
| Wavelength | 1200 … 1700 nm |
| Distance Ratio | 50:1 |

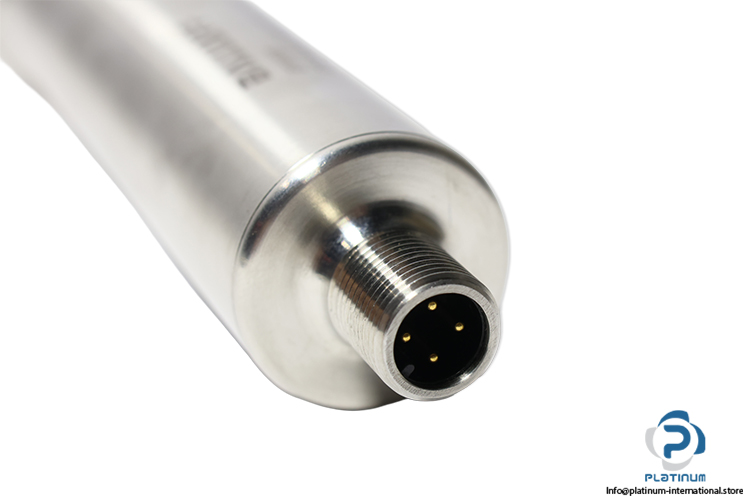

| Connection | M12x1-Male, 4-Pin |
| Operating Voltage Ub | 10 … 30 VDC |
| Switching Output | PNP Normally Open/Normally Closed (NO/NC) |
| Analog Output Current | 4 … 20 mA |
| Material Sensing Surface | Borosilicate Crown Glass (N-BK7), Coated |
| Housing Material | 1.4404 Stainless Steel, 1.4404 Stainless Steel; Aluminum, Black Anodized, Aluminum (3.3206) |
| Protection Class | IP65, IP67 |
| Ambient Temperature | -5 … 65 °C |
| Diameter, Length | 30 x 190 mm |

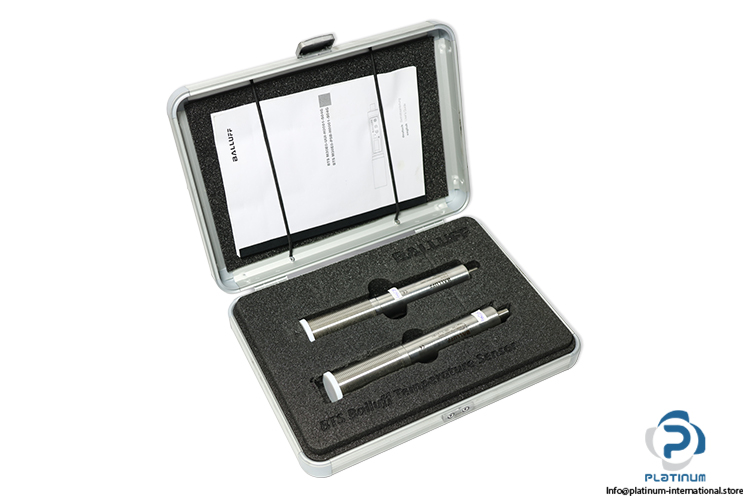

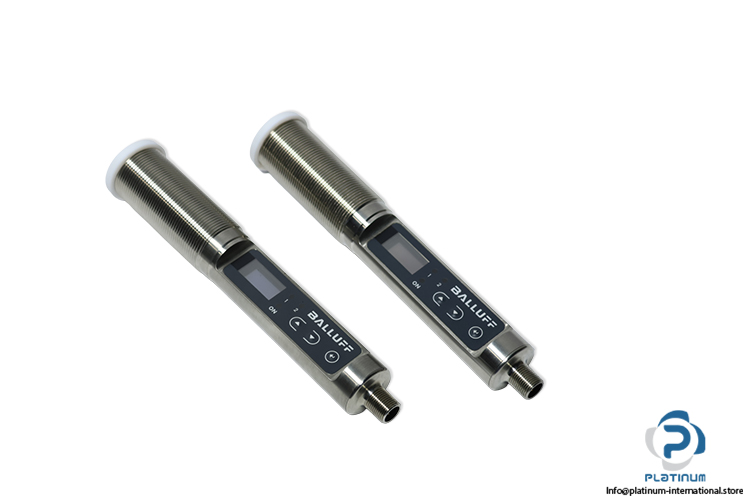

| Items Per Set | 2 |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1104249 |
| Weight | 1,5 |
