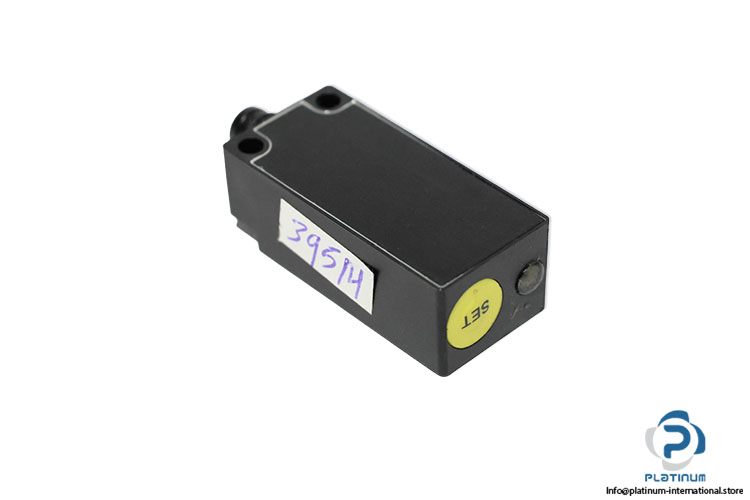

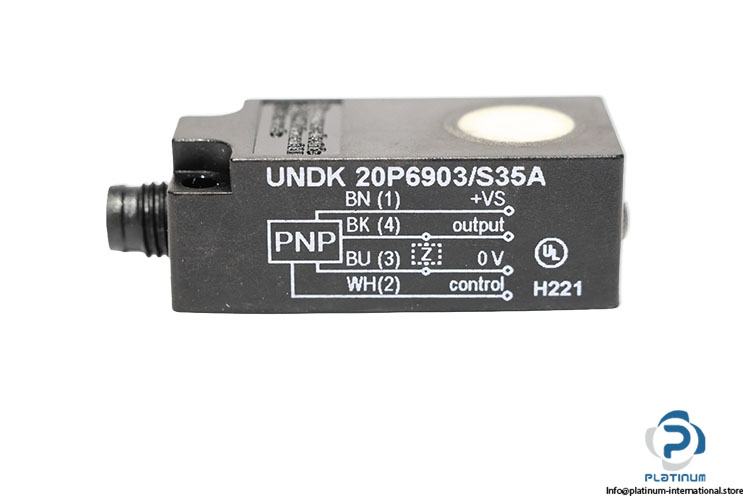

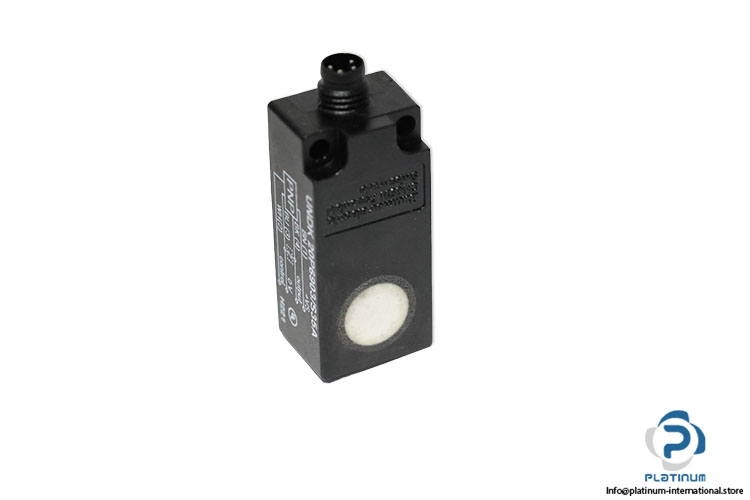

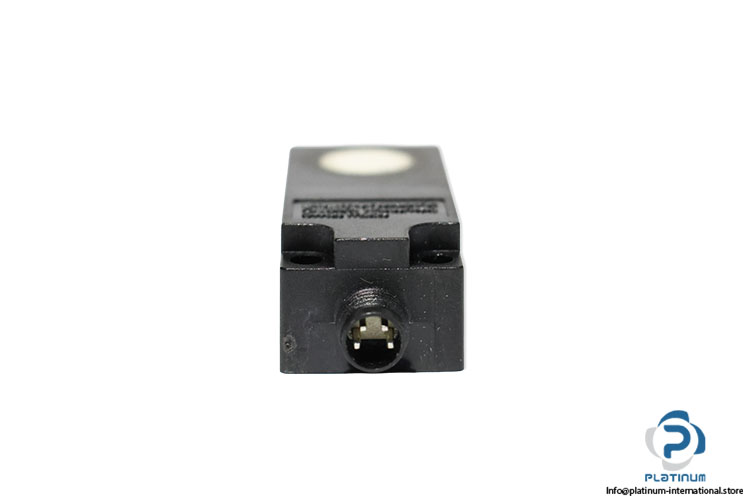

Baumer Undk 20P6903/S35A Ultrasonic Proximity Sensor
Новинка
В наличии2 единицыГотово к отправке
333,33$
Ultrasonic Proximity Sensor Baumer ultrasonic proximity sensor with 100–200 mm sensing range, PNP normally open output, Teach-In adjustment, and IP67 protection for industrial object detection.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества
| Scanning range Sd | 100 … 1000 mm |
| Scanning range far limit Sde | 100 … 1000 mm |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | 0,18 % Sde/K |
| Response time ton | 50 ms |
| Release time toff | 50 ms |
| Sonic frequency | 240 kHz |
| Adjustment | Teach-in |
| Alignment aid | Target indication flashing |
| Output indicator | LED green |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption max. (no load) | 35 mA |
| Output circuit | PNP make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Design | Rectangular |
| Housing material | Polyester |
| Width / diameter | 20 mm |
| Height / length | 42 mm |
| Depth | 15 mm |
| Connection types | Connector M8 |
| Operating temperature | -10 … +60 °C |
| Protection class | IP 67 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100935 |
| Weight | 0,01 |
