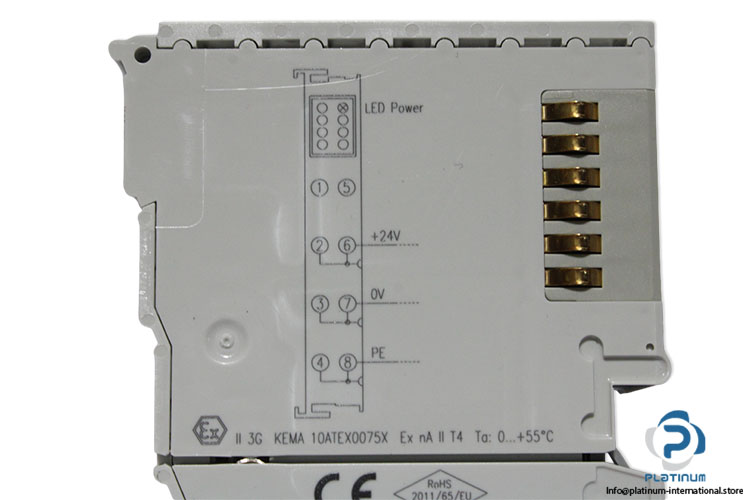

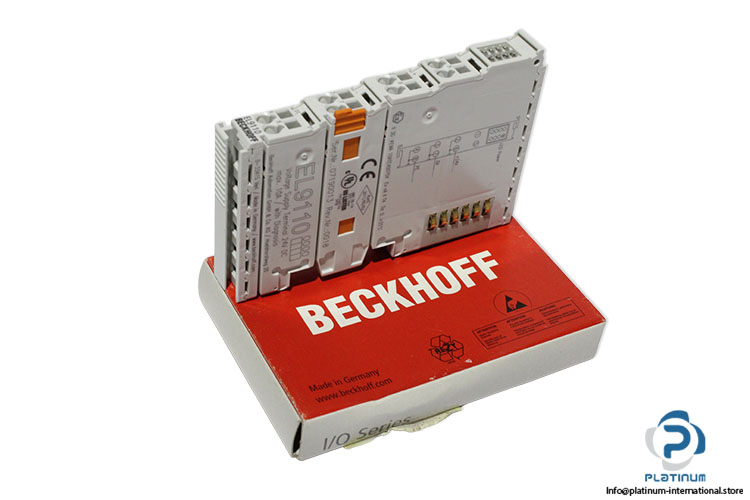

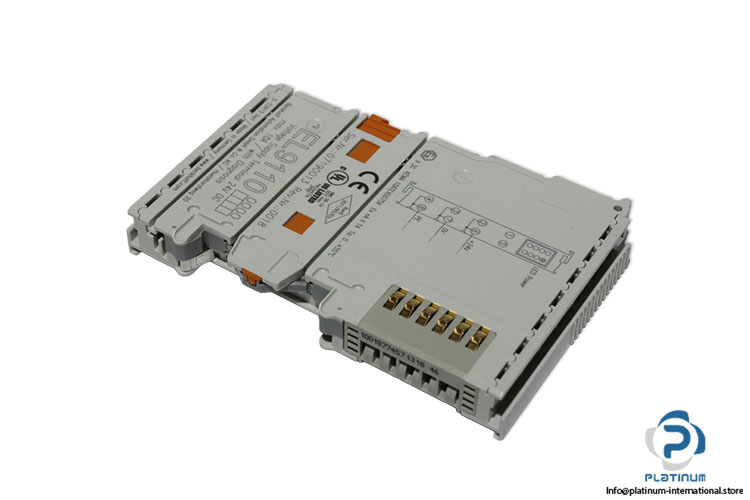

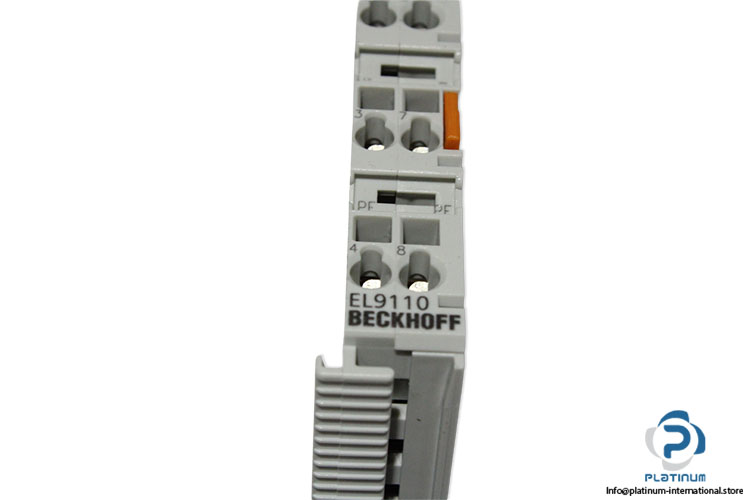

Beckhoff EL9110 Ethercat Terminal
Новинка
В наличии1 единицаГотово к отправке
39,99$
EtherCAT Terminal / Voltage Supply Terminal Beckhoff EL9110 EtherCAT terminal designed for 24 V DC power distribution, diagnostics, and reliable integration in industrial control and automation systems.
24vAutomationBeckhoffControldcDINEL9110EtherCATFieldbusI/OIndustrialModulePLCPowerrailsupplyterminalvoltage
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

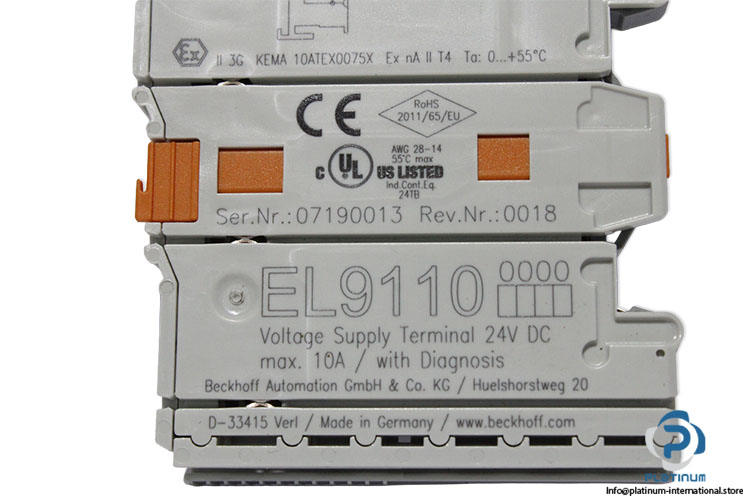

| Serial No. | 07190013 |
| Rev. No. | 0018 |
| Connection Technology | potential supply terminal with diagnostics |
| Design form | compact terminal housing with signal LEDs |
| Current load | = 10 A |
| Power LED | green |
| Nominal Voltage | 24 V DC |
| Electrical isolation | 500 V |
| Current consumption E-bus | typ. 90 mA |
| Current load power contacts | Imax, 10 A |
| Material | Polycarbonate |
| Certificate | cULus, CE |
| Standard | II 3G KEMA 10ATEX0075X Ex nA II T4 |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Ambient temperature | 0 to 55°C |
| Marking | Labeling of the BZxxxx series |

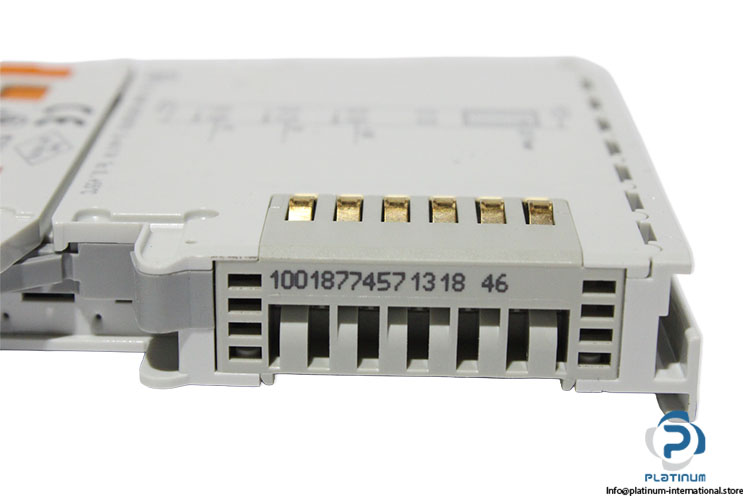

| Terminal No. | 1001877457 1318 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097569 |
| Weight | 0,06 |
