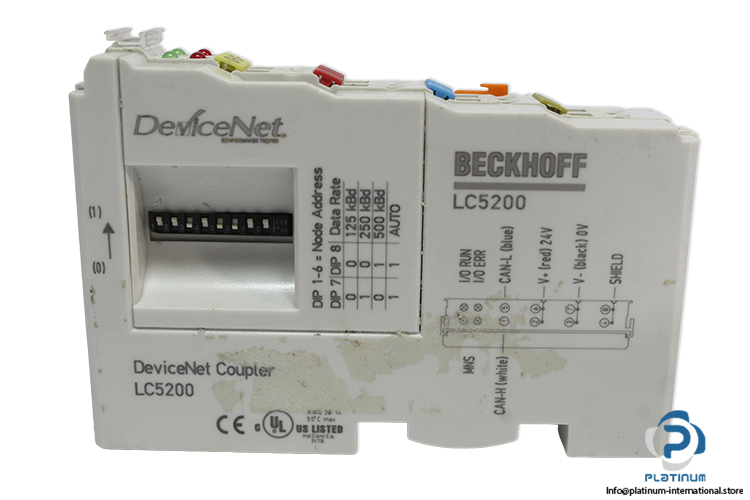

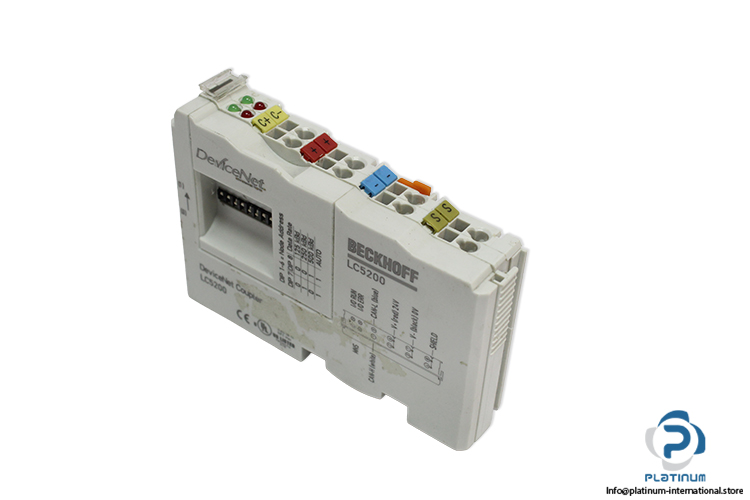

BECKHOFF LC5200 DeviceNet Coupler
A high-performance DeviceNet communications adapter designed to integrate Bus Terminals into DeviceNet fieldbus systems. The BECKHOFF LC5200 supports flexible operating modes, high data transfer reliability, and scalable I/O expansion, making it suitable for industrial automation and distributed control applications. Manufacturer: BECKHOFF
Type: DeviceNet Coupler
Model: LC5200

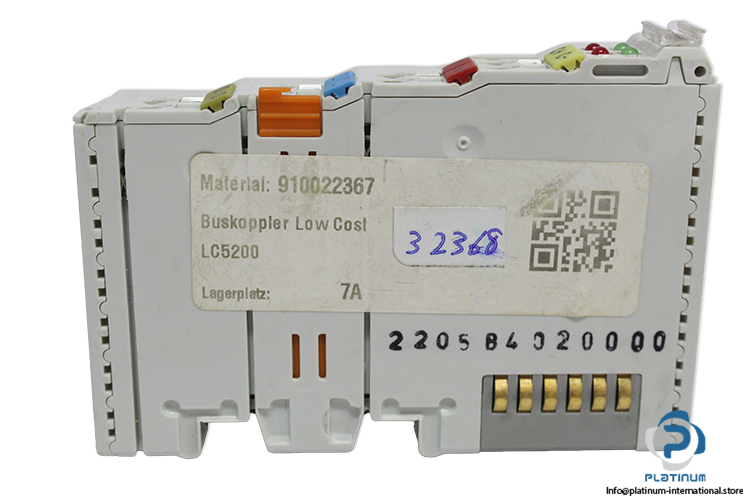

Material No.: 910022367
| DeviceNet Type | Communications Adapter |
| Number Of I/O Stations | 64 |
| Number Of Bus Terminals | 64 |
| Max. Fieldbus Data | 32 Byte Input / 32 Byte Output |
| Data Transfer Medium | Screened, twisted copper wire with power supply, 5-pin |
| Data Transfer Rates | 125 kbaud / 250 kbaud / 500 kbaud |
| Max. Cable Length | 500 m / 250 m / 100 m |
| Operating Modes | Bit Strobe, Polling, Cyclic, Change Of State (COS) |
| Bus Interface | Connection via Bus Terminal |
| Power Supply | 24 V DC (-15 % / +20 %), via bus cable |
| Bus Voltage Range | 11 / 25 V (DeviceNet compliant) |
| Current Supply K-Bus | 500 mA |
| Power Contacts | 24 V DC, Max. 10 A |
| Electrical Isolation | None between power supply, fieldbus, and power contacts |
| Connection Method | Direct connection to spring-loaded terminals |
| Housing Width | 21 mm (Bus Terminal form factor) |
| Operating / Storage Temperature | 0 / +55 °C |
