Bernard Controls ASP Valve Actuator
Привод клапана Привод клапана Bernard Controls ASP обеспечивает крутящий момент 250 Нм с двигателем 0,03 кВт при 230В. Разработан для автоматизации промышленных клапанов, обеспечивает эффективность и надежность в сложных условиях.

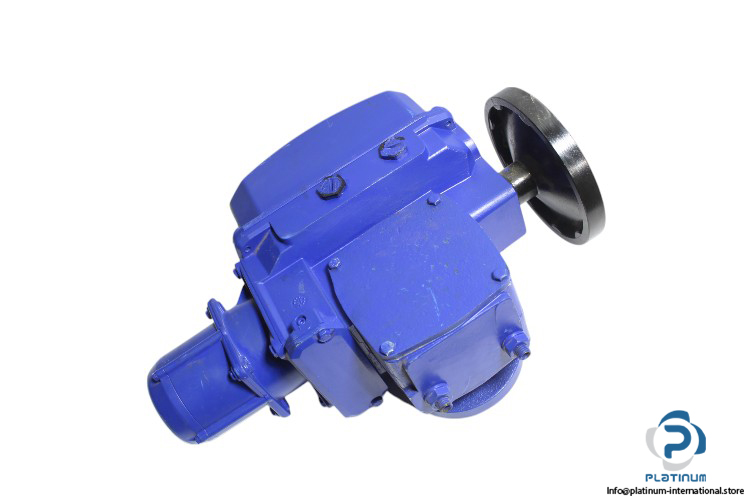

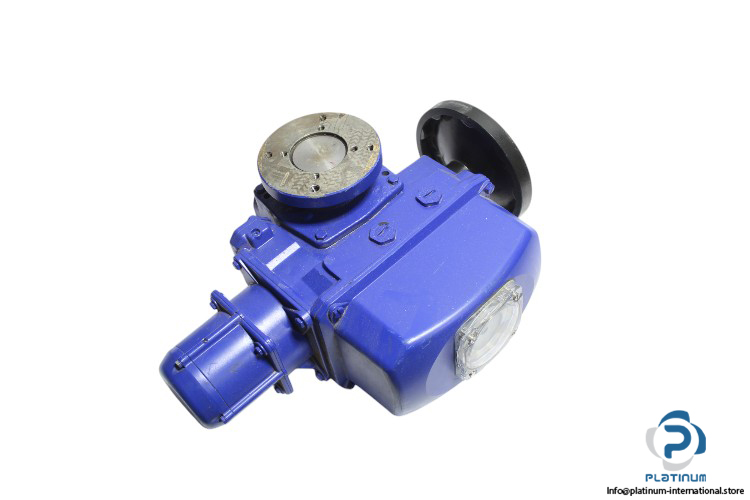

Bernard Controls ASP Valve Actuator
The Bernard Controls ASP Valve Actuator is a high-performance actuator designed for precise valve control in industrial applications. With a robust build, efficient motor, and reliable torque output, it ensures smooth and efficient operation in demanding environments.
Manufacturer: Bernard Controls
Type: Valve Actuator
Model: ASP

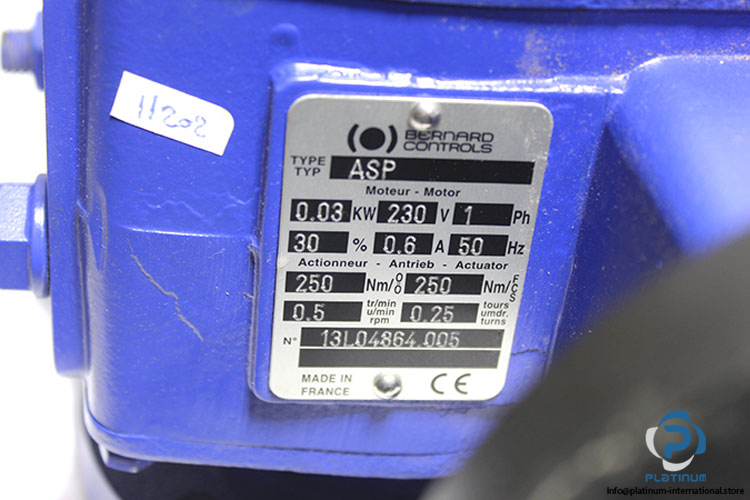

Order No.: 13L04864.005
Designed for precise and reliable valve automation, the Bernard Controls ASP ensures optimal performance and durability across various industrial applications.
| Flange | F10 |
| Power | 0.03 kW |
| Voltage | 230 V - 1 phase |
| Current | 0.6 A |
| Frequency | 50 Hz |
| Efficiency | 30% |
| Speed | 0.5 rpm |
| Motor Torque | 250 Nm |
| Center of Gravity | 40 x 46 x 88 mm |
| Dimensions | 459 x 313 x 180 mm |
| Handwheel Diameter | 160 mm |
| Ambient Operating Temperature | -20 to +70 °C |
