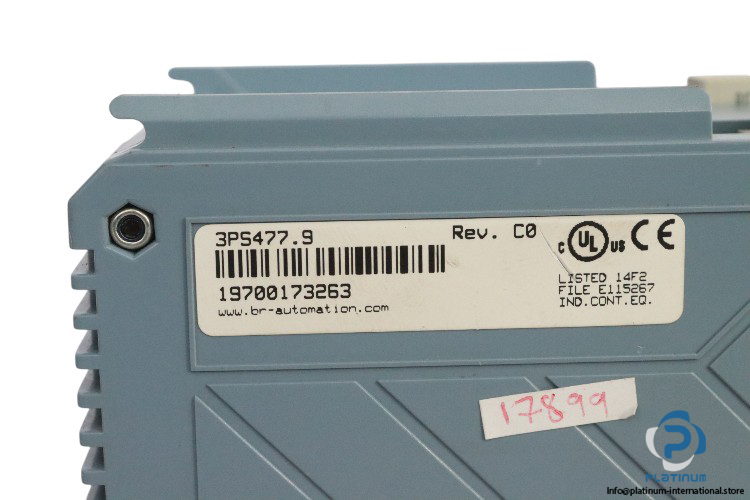

B&R 3PS477.9 POWER SUPPLY MODULE
The B&R 3PS477.9 Power Supply Module offers 24V DC and 5V DC outputs with 50W and 40W power, additional RAM retention functionality, and IP20 protection, designed for industrial applications requiring reliable power.
B&R 3PS477.9 Power Supply Module
The B&R 3PS477.9 Power Supply Module is a high-performance power supply solution designed for industrial applications. It provides reliable 24V DC and 5V DC outputs, with additional functions for external RAM retention, making it an ideal choice for applications requiring stable and efficient power delivery.
- Manufacturer: B&R
- Type: Power Supply Module
- Model: 3PS477.9
Technical Specifications:
- Power Supply Module: 24 VDC
- Output Power: 24 VDC, 50.0 W / 5 VDC, 40.0 W
- Input Current: Max. 3.5 A
- Fuse: 6.3 A slow-blow / 250 V
- Additional Functions: External retention of RAM by supplying 12 V (min. 8 V / max. 30 V)
- Degree of Protection: IP20
- Ambient Conditions: 0 to 60°C
The B&R 3PS477.9 Power Supply Module is built to provide reliable power to your systems with a broad output range. It is designed for industrial applications where efficiency and stability are crucial, offering high performance while maintaining a compact footprint. With IP20 protection and a wide operating temperature range, this power supply is perfect for various environments requiring robust power solutions.
