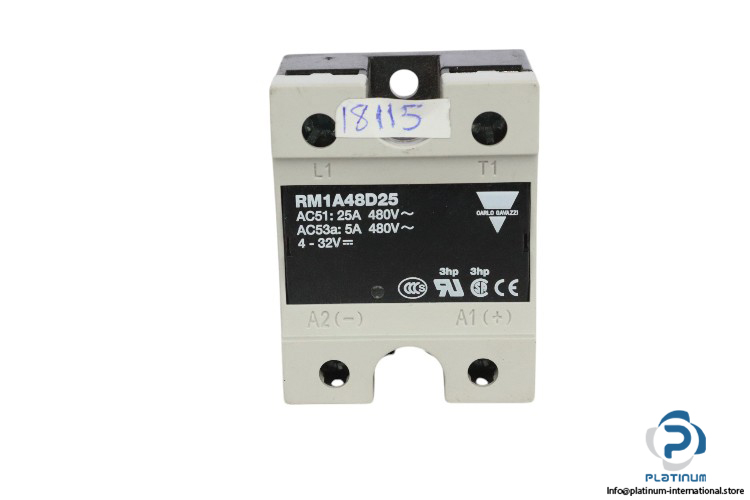

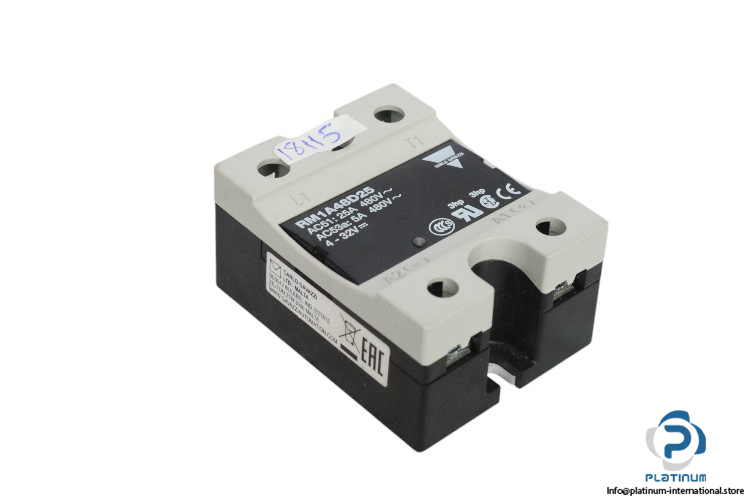

Carlo Gavazzi RM1A48D25 Solid State Relay
Твердотельное реле Carlo Gavazzi RM1A48D25. Надежное твердотельное реле (SSR) для промышленной автоматизации. Имеет управляющее напряжение 4-32V DC, номинальное рабочее напряжение 480V AC и нагрузочную способность 25A.
Carlo Gavazzi RM1A48D25 Solid State Relay
The Carlo Gavazzi RM1A48D25 is a high-performance Solid State Relay (SSR) designed for reliable switching in industrial applications. With a compact design and robust construction, it ensures efficient control of AC loads while providing superior electrical isolation and long operational life.
Key Details:
Manufacturer: Carlo Gavazzi
Type: Solid State Relay
Model: RM1A48D25
This solid state relay offers fast switching, high durability, and superior electrical performance, making it ideal for industrial automation and power control applications.
| Control Voltage Range | 4 to 32 V DC |
| Rated Operational Voltage | 480 V AC |
| Number of Poles | 1 |
| Maximum Load Current | 25 A |
| Rated Operational Current | AC51: 25 A, AC53a: 5 A |
| Blocking Voltage | 1200Vp |
| Protection Class | IP20 |
| Operating Temperature | -20 to 70 °C |
| Dimensions | 44.8 x 58.2 x 28.8 mm |
