General Electric 114FCB11F Position Switch
features 1 Normally open + 1 Normally closed contacts, supporting 120, 240, and 600 V AC/DC. With IP66 protection and a temperature range of 60°C to 75°C, it ensures reliable performance in harsh conditions.

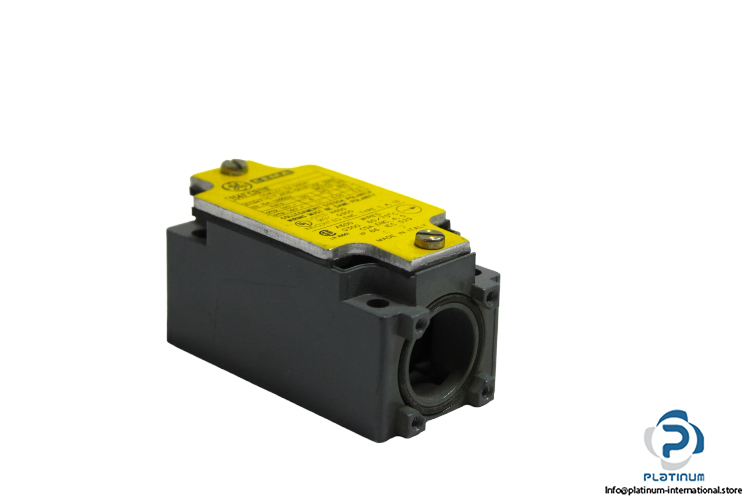

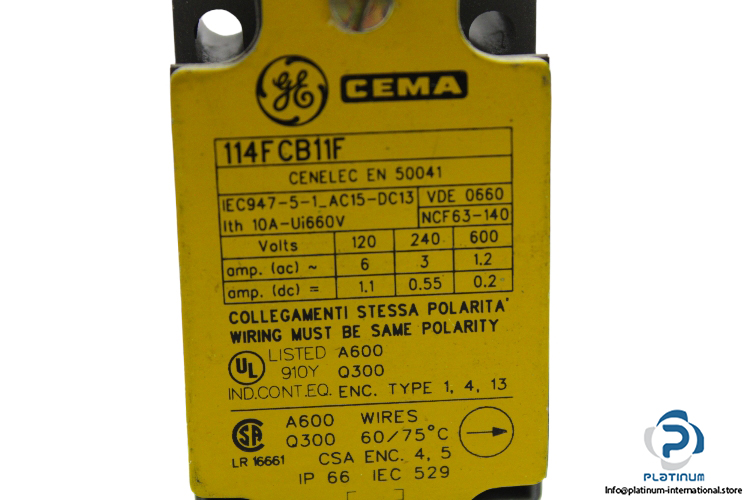

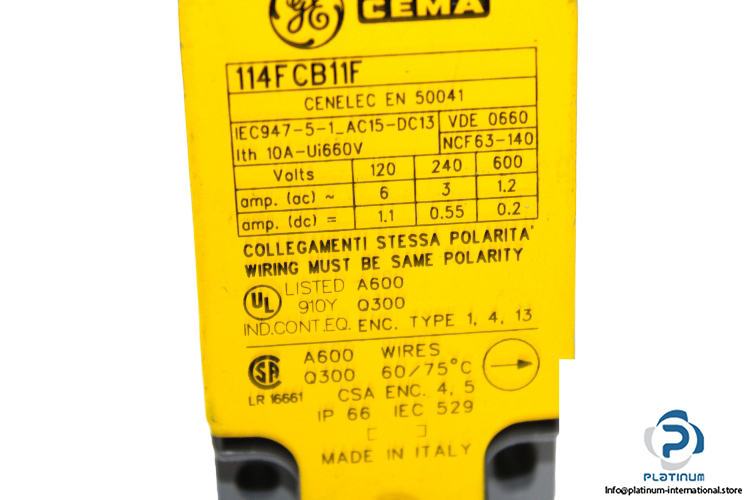

General Electric 114FCB11F Position Switch
The General Electric 114FCB11F Position Switch offers precise switching for a variety of industrial applications. Featuring a combination of normally open and normally closed contacts, this switch is designed for flexible usage in different voltage environments (120, 240, and 600 V AC/DC).
🔧 Technical Specifications:
- Manufacturer: General Electric
- Type: Position Switch
- Model: 114FCB11F
- Output Configuration: 1 Normally open + 1 Normally closed
- Switching Voltage: 120, 240, and 600 V AC/DC
- Contact Current max: 6 A, 3 A, 1.2 A DC, 1.1 A, 0.59 A, 0.2 A DC
- Connection Size: 22 mm
- Protection Class: IP66
- Ambient Operating Temperature (max.): 60 / 75°C
- Dimensions: 42 x 41 x 77 mm
Designed to withstand harsh industrial conditions with an IP66 protection class, the GE 114FCB11F Position Switch is ideal for environments requiring reliable performance across a wide range of temperatures. It ensures secure connections and efficient operation for a variety of machinery and systems.
