Festo 172962 On/Off Valve
Б/у
В наличии4 единицыГотово к отправке
ON/OFF VALVE WITH COIL
FESTO HEE-D-MAXI-24 3/2-way ON/OFF valve with piston gate design, electrically actuated and includes MSEB-3-24V DC solenoid coil.3/2-wayActuatedAluminiumcoildcdie-castElectricallyFestoG3/8GateHEE-D-MAXI-24IndustrialMSEB-3-24VOn/OffPistonPneumaticsolenoidValve
Новинка
В наличии
Этот продукт также доступен в совершенно новом состоянии
Просмотреть новую версию →
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

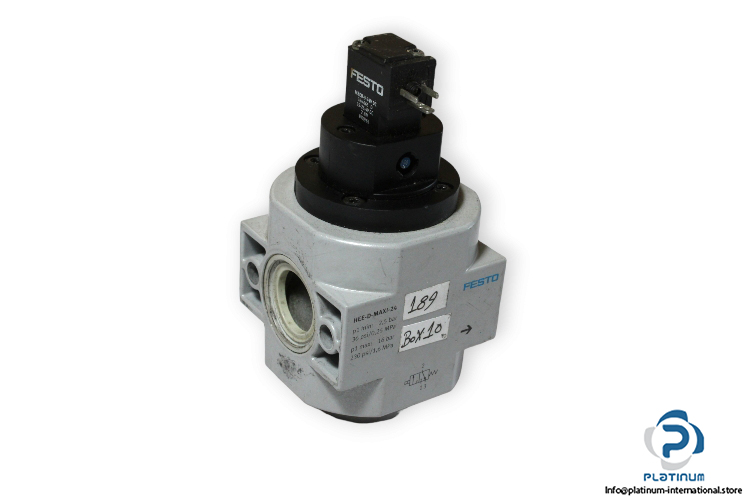

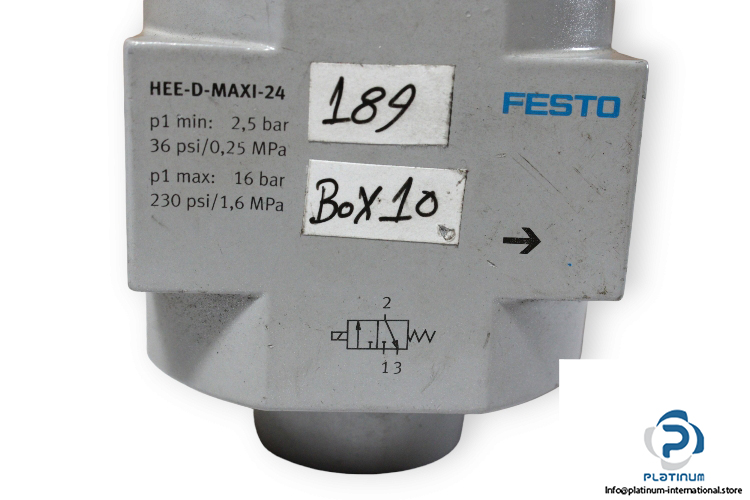

FESTO HEE-D-MAXI-24 ON/OFF VALVE WITH SOLENOID COIL
The FESTO HEE-D-MAXI-24 is a robust and efficient electrically actuated ON/OFF valve, engineered for precise control in pneumatic systems. This 3/2-way piston gate valve, built with die-cast aluminium, delivers dependable performance across a wide pressure range.
Manufacturer: FESTO
Type: ON/OFF Valve
Model: HEE-D-MAXI-24
Part No.: 172962
Solenoid Coil Technical Information
| Fluid | Air |
| Size | MAXI |
| Design | Piston gate valve |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2.5 ... 16 bar |
| Pneumatic Connection | G3/8 |
| Material | Die-cast aluminium |
| Ambient Temperature | -10 to 60 °C |

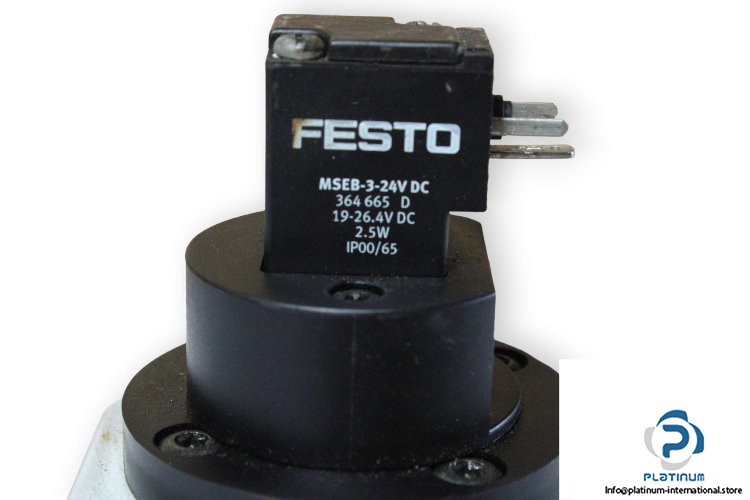

| Attachment | FESTO SOLENOID COIL |
| Part No. | 364665 |
| Supply Voltage | 19 ... 26.4 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00 / IP65 |
