Festo 185833 Service Unit Combination
Новинка
В наличии1 единицаГотово к отправке
СЕРВИСНЫЙ БЛОК КОМБИНАЦИЯ FESTO FRC-3/8-D-MIDI-KE сервисный блок с фильтрующим регулятором, смазчиком, клапанами включения/выключения и манометром для систем сжатого воздуха.
AirCompressedFestofilterFRC-3/8-D-MIDI-KEGaugeLubricatorMidiPneumaticPressureregulatorServiceSystemUnit
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

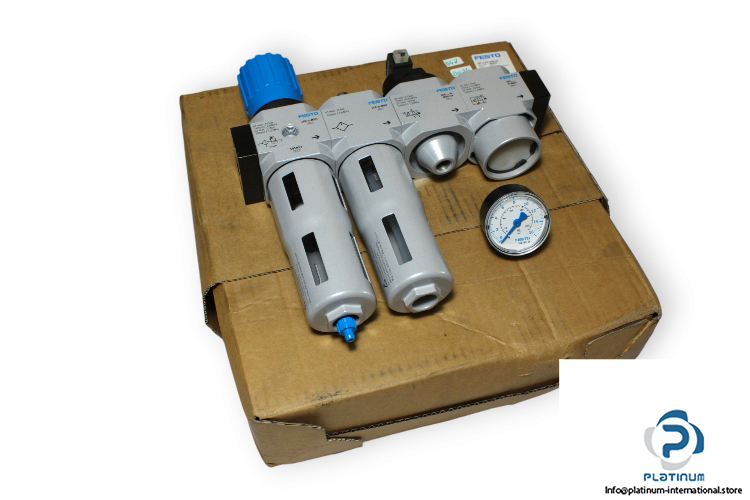

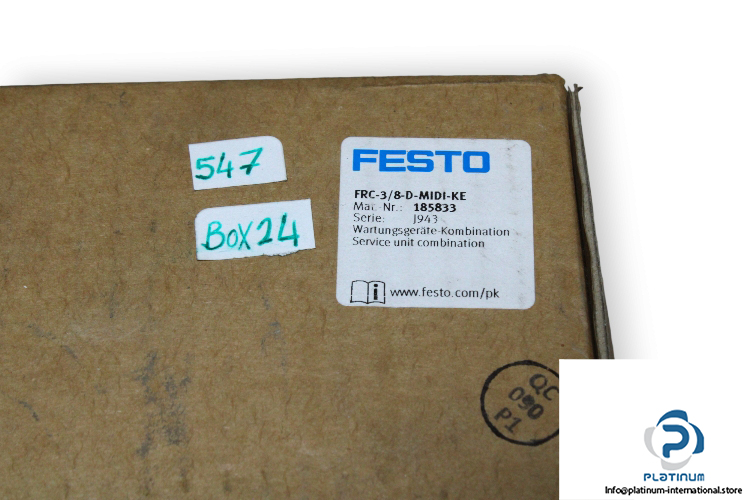

FESTO FRC-3/8-D-MIDI-KE SERVICE UNIT COMBINATION
The FESTO FRC38DMIDIKE is a modular service unit combination designed for compressed air systems, featuring high-performance filtration, regulation, and lubrication. It includes multiple FESTO components to ensure optimal air quality and system efficiency.
Manufacturer: FESTO
Type: Service Unit Combination
Model: FRC-3/8-D-MIDI-KE
Part No.: 185833
Attachments
Pressure Gauge Technical Information
| Size | MIDI |
| Media | Compressed Air, Neutral Gases |
| Pressure Regulation Range | 2.5 / 12 bar |
| Operating Pressure | 3 / 16 bar / 36 / 240 PSI / 0.25 / 1.6 MPa |
| Nominal Flow Rate | 1420 l/min |
| Filtration Grade | 40 micron |
| Actuator Lock | Rotary Knob With Detent |
| Temperature Range | -10 / 60 °C |
| Pneumatic Connection | G3/8 |

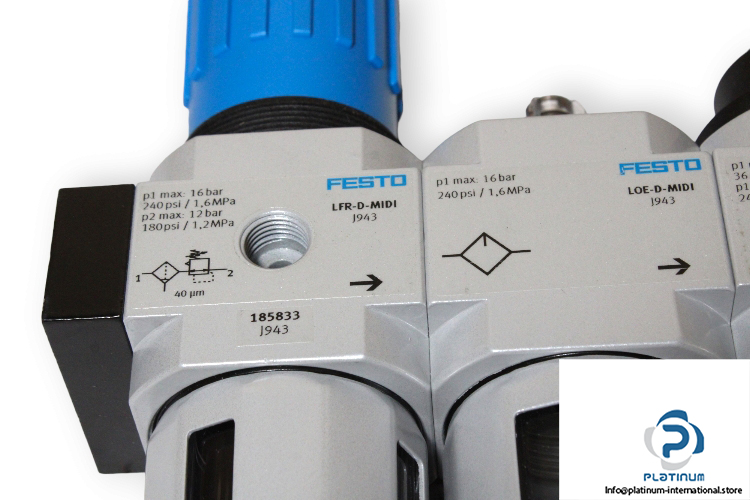

| FESTO LFR-D-MIDI FILTER REGULATOR Manufacturer | FESTO |
| FESTO LOE-D-MIDI PROPORTIONAL STANDARD MIST LUBRICATOR Manufacturer | FESTO |

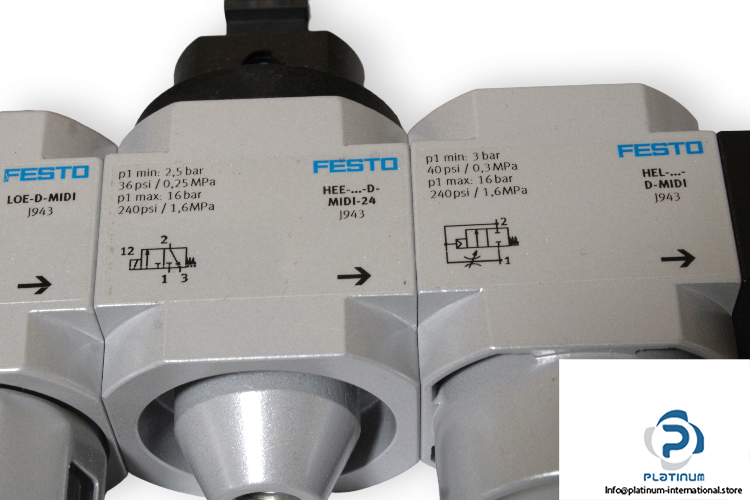

| FESTO HEE-D-MIDI-24 ON/OFF VALVE Manufacturer | FESTO |
| FESTO HEL-D-MIDI ON/OFF VALVE Manufacturer | FESTO |

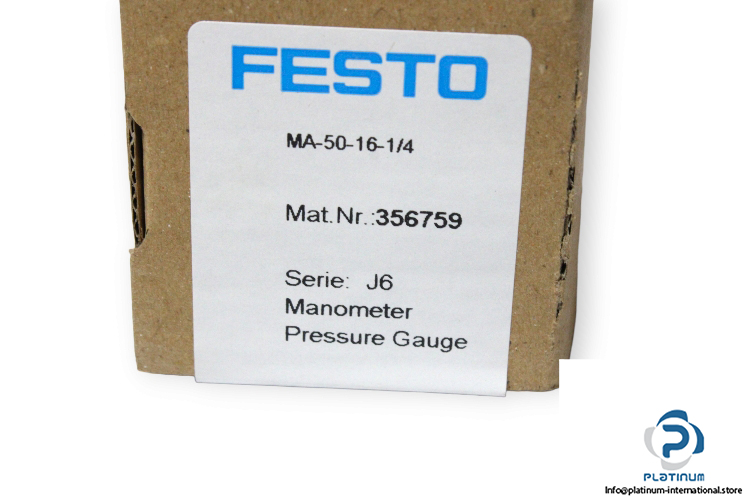

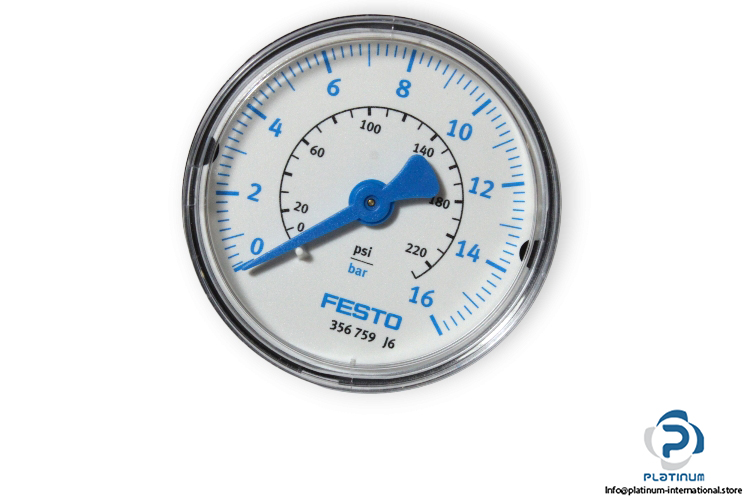

| FESTO MA-50-16-1/4 PRESSURE GAUGE Manufacturer | FESTO |
| Part No. | 356759 |
| Operating Medium | Inert Gases, Neutral Fluids |
| Operating Pressure Display Range | 0 / 16 bar (0 / 232 PSI) |
| Scale | Double Scale / Bar (Outside Scale) / PSI (Inner Scale) |
| Material | ABS |
| Connection | G 1/4 |
| Medium Temperature | -20 / 60 °C |
