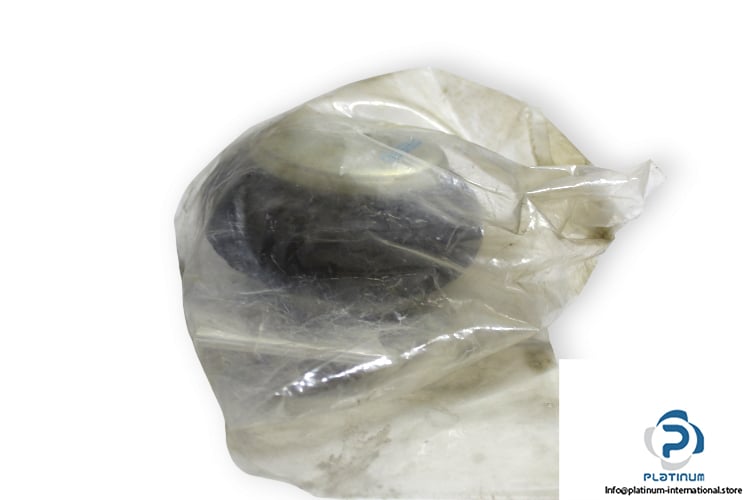

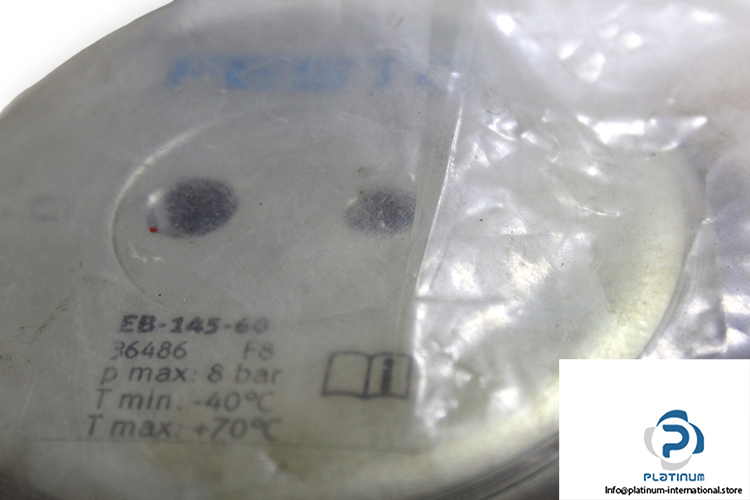

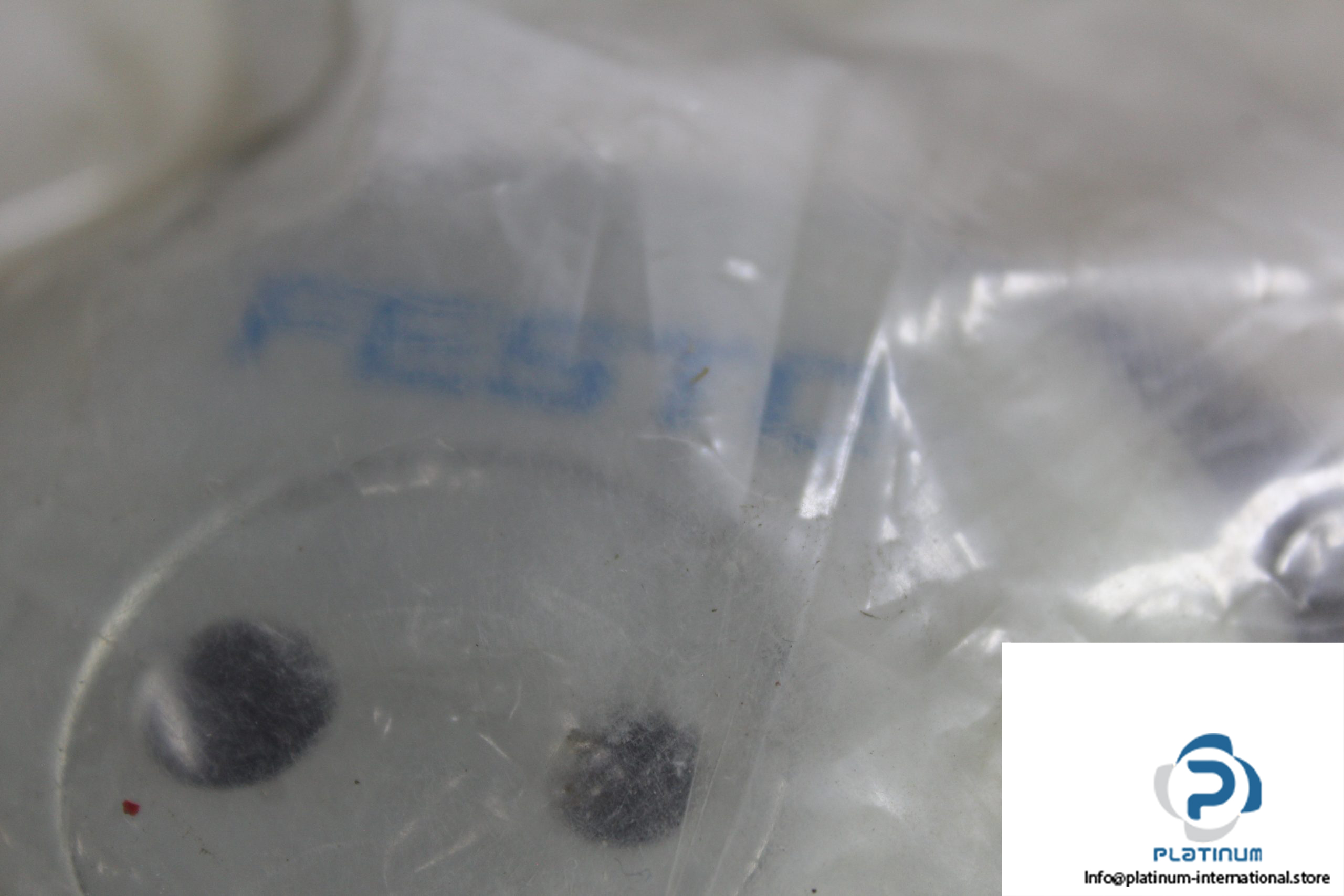

Festo 36486 Bellow Cylinder

Manufacturer: FESTO

Type: Bellow Cylinder

Model: EB-145-60

Part No.: 36486



Size: 145

Required installation Ø: 160 mm

Stroke: 60 mm

Max. height, advanced: 110 mm

Max. angle of inclination: 20 deg

Max. offset: 10 mm

Min. installation height: 50 mm

Mode of operation: Single-acting

Operating pressure: 0 bar … 8 bar

Operating medium: Compressed air

Ambient temperature: -40 °C … 70 °C

Pneumatic connection: G1/8

Resetting force: 120 N
