Crei-STT IP65E Absolute Encoder
Б/у
В наличии1 единицаГотово к отправке
Absolute Encoder
The CREISTT ASS IP65E delivers precise motion feedback with IP65 protection, a stainless steel shaft, and parallel NPN output for rugged automation tasks.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

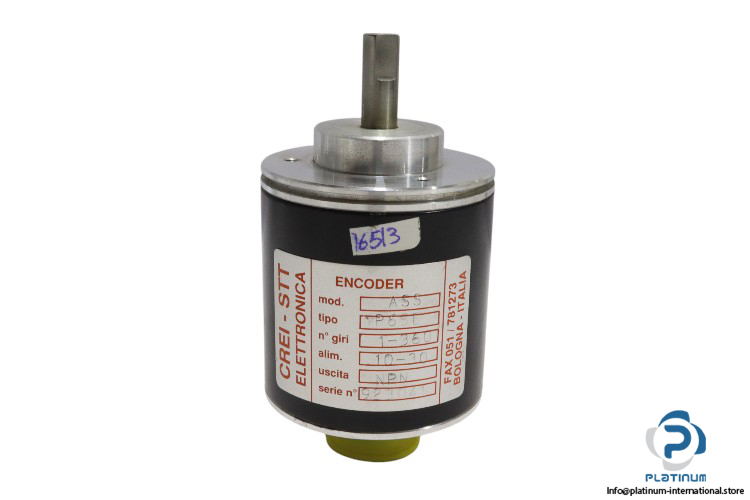

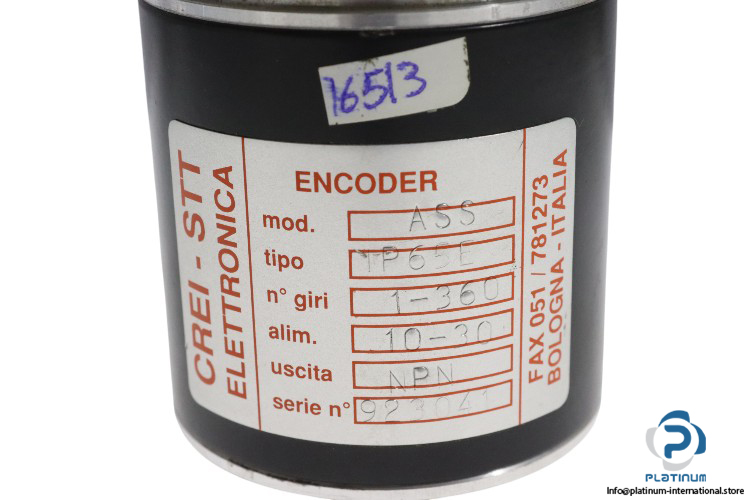

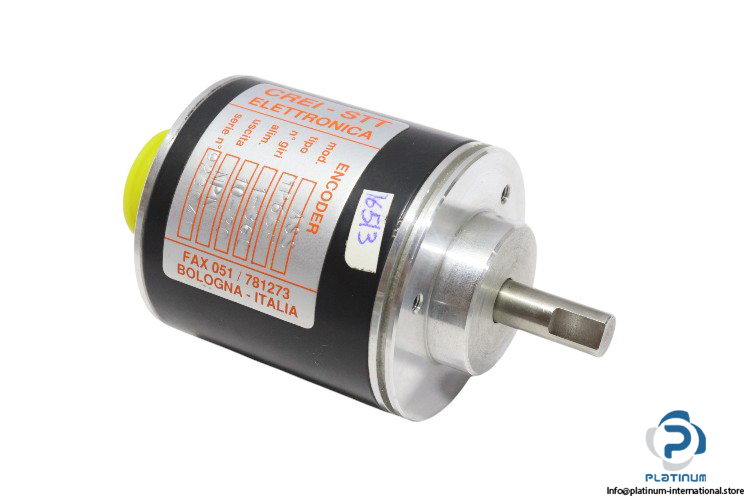

CREISTT ASS IP65E Absolute Encoder
The CREISTT ASS IP65E Absolute Encoder is a high-precision encoder designed for automation systems requiring stable feedback and rugged design. With a supply voltage of 10“30 VDC, IP65 protection, and a stainless steel Ø10×26 mm shaft, it delivers reliable performance in harsh industrial environments.
Manufacturer: CREISTT
Type: Absolute Encoder
Model: ASS
Part No.: IP65E
| Supply Voltage | 10“30 VDC |
| Max RPM | 3000 |
| Max Output Current | 30 mA |
| Output Signal | Parallel open-collector NPN |
| Current Consumption | 80“120 mA |
| Protection Type | IP65 |
| Temperature Range | 0“60°C |
| Case Material | Anodized aluminum |
| Flange Type | Round, 65 mm |
| Shaft Type | Ø10×26 mm stainless steel |
| Starting Torque | 2 Ncm |

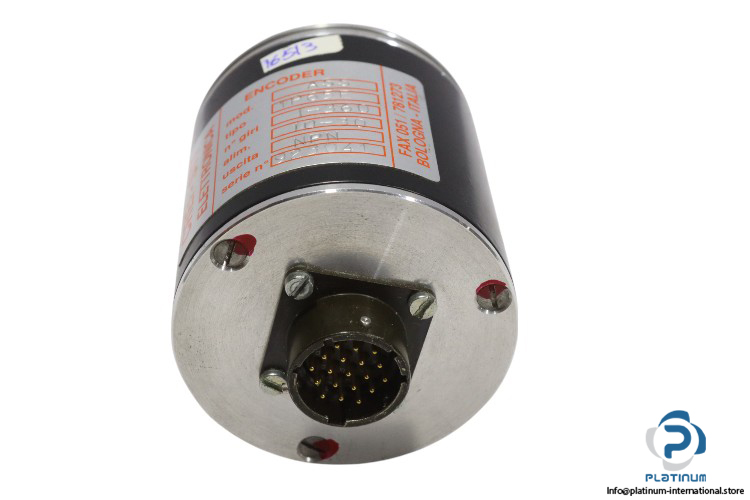

| Connector | 19-pin MIL male, axial |
| Max Cable Length | 15 m |
