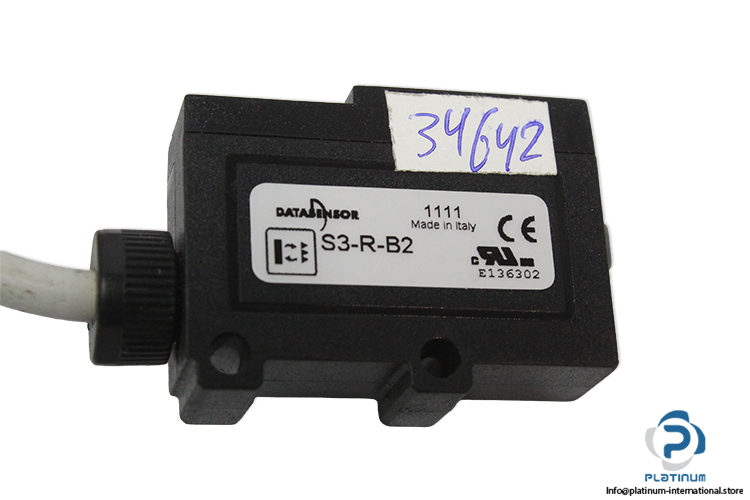

Datasensor S3-R-B2 Photoelectric Sensor
Фотоэлектрический датчик Datasensor Datalogic S3-R-B2 миниатюрный фотоэлектрический датчик с функцией поляризованного ретрофлекса, инфракрасной LED-подсветкой, выходом NPN/PNP и защитой IP66 для промышленных автоматизированных систем обнаружения.
Datasensor Datalogic S3-R-B2 Photoelectric Sensor
The Datasensor Datalogic S3-R-B2 is a compact photoelectric sensor from the S3 series designed for reliable object detection in industrial automation systems. It features infrared light emission, configurable dark/light operating modes, and flexible NPN/PNP output, making it suitable for a wide range of sensing applications.
Manufacturer: DATASENSOR DATALOGIC
Type: Photoelectric Sensor
Model: S3-R-B2
Series: S3
| Power Supply | 10 ... 30 VDC |
| Consumption | 30 mA max. |
| Light Emission | Infrared 660 nm LED |
| Light Emission | LED “ Red |
| Through Beam Operating Distance | 0 ... 5 m |
| Operating Distance | 0.1 to 2 meters |
| Output Type | NPN/PNP |
| Connection Type | 2 m cable |
| Case Form | Miniature |
| Case Material | Plastic |
| Protection | IP66 |
| Saturation Voltage | 1.5 V max. |
| Output Current | 100 mA max., short-circuit protection |
| Response Time | 1 ms max. |
| Operating Mode | Dark/Light configurable |

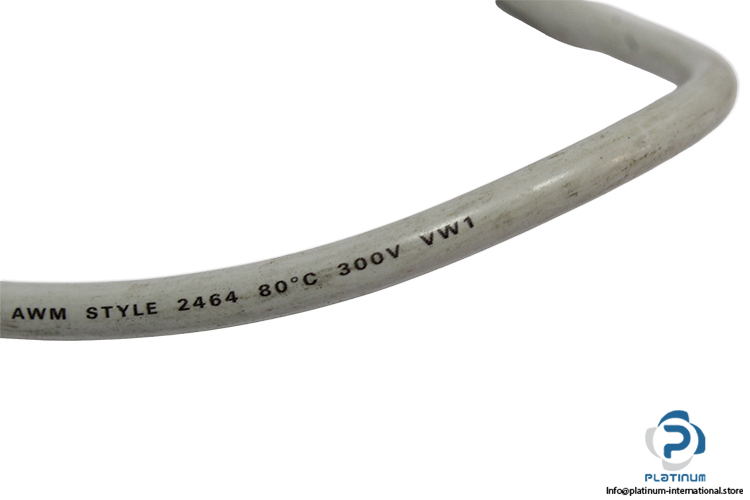

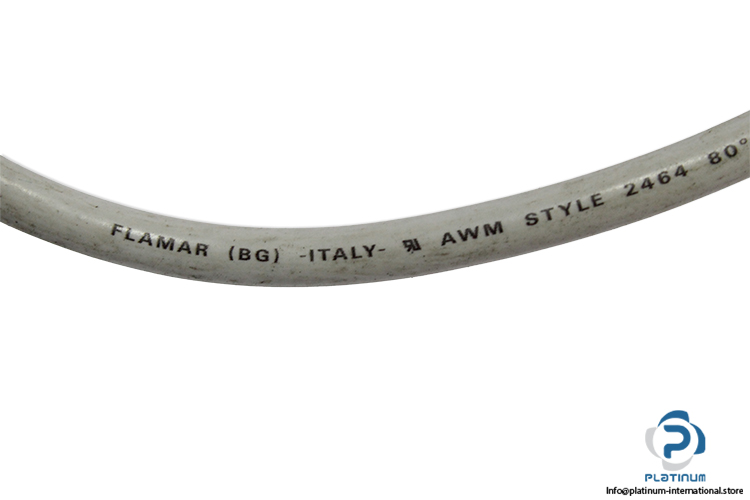

| Connection | 2 m Ø 5 mm cable |
| Electrical Protection | Class 2 |
| Operating Temperature | -25 ... +55 °C |
| Function | Polarised Retroreflex |
| Optics | Lateral |
