Dinacell SWK 8/4C Load Sensor
Б/у
В наличии1 единицаГотово к отправке
LOAD SENSOR
Dinacell SWK 8/4C load sensor with 350 kg capacity, 0.25% accuracy, aluminum body, and IP65 protection. Provides precise measurement for industrial weighing applications.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

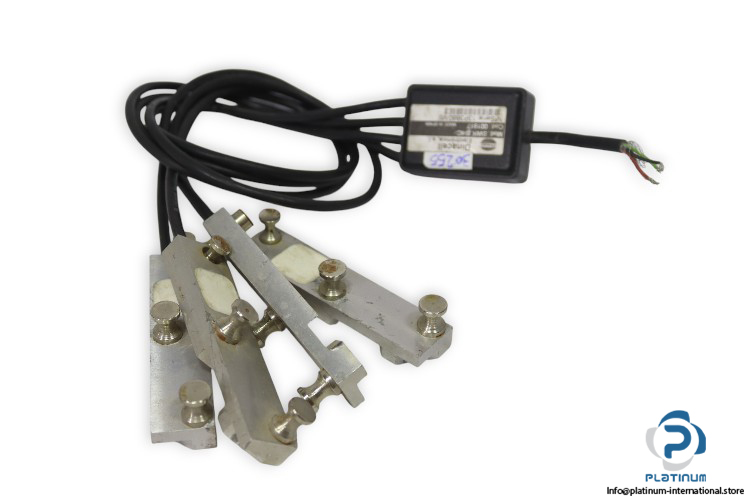

DINACELL SWK 8/4C LOAD SENSOR
The Dinacell SWK 8/4C is a compact and highly reliable load sensor engineered for accurate weight measurement in industrial applications. Built with aluminum housing and IP65 protection, it ensures durability and performance under demanding conditions.

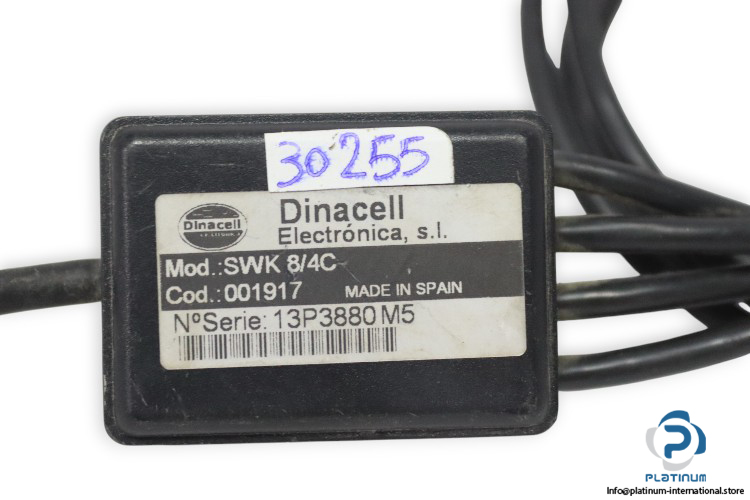

Manufacturer: Dinacell
Type: Load Sensor
Model: SWK 8/4C
Code: 001917
Serial No.: 13P3880 M5
| Cable | 8 mm |

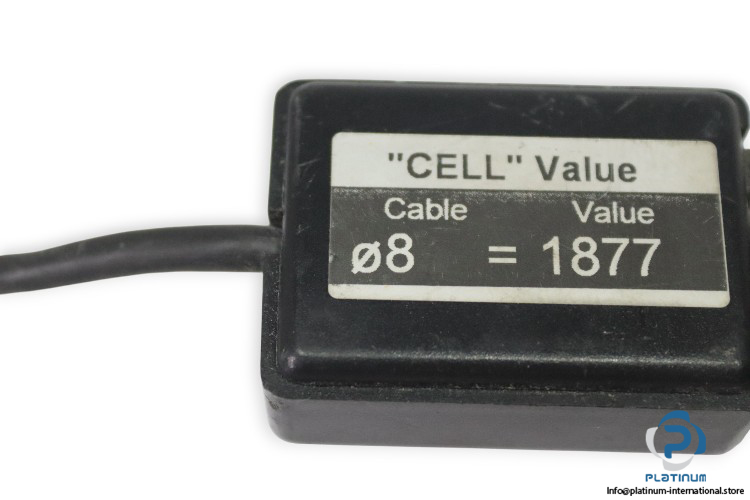

| Cell Value | 1877 |
| Load | 350 kg |
| Nominal Sensibility | 1.3 to 2 mV/V |
| Accuracy | 0.25 % |
| Maximum Excitation Voltage | 12 V |
| Minimum Distance to the Socket | 25 m |
| Operating Temperature Range | -20 ... +60 °C |
| Min. Insulation Resistance (V.Test = 100V) | 4 GΩ |
| Load Limit | Safe 120 / Without Characteristics Loss 150 |
| Cable Length | 2 m |
| Material | Aluminum |
| Protection Class | IP65 |
