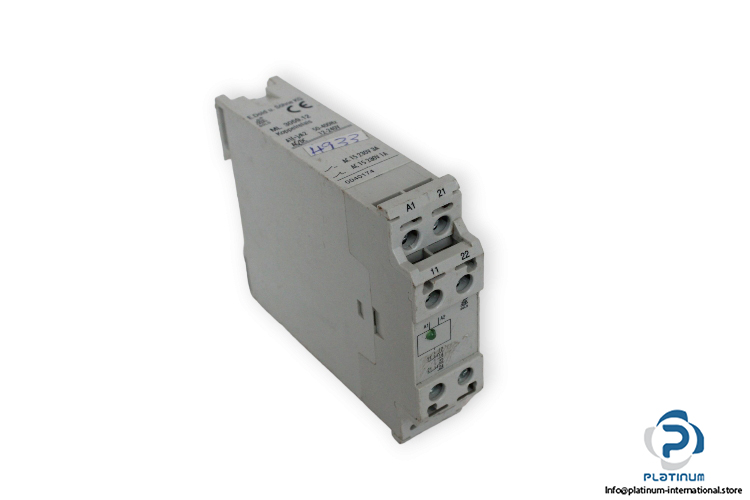

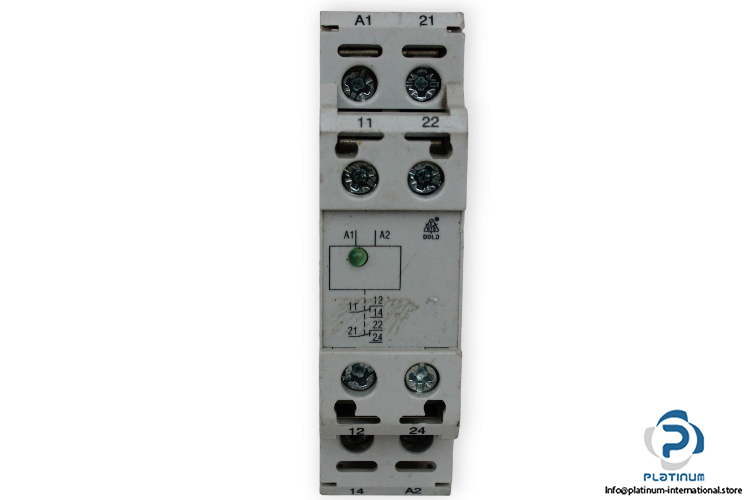

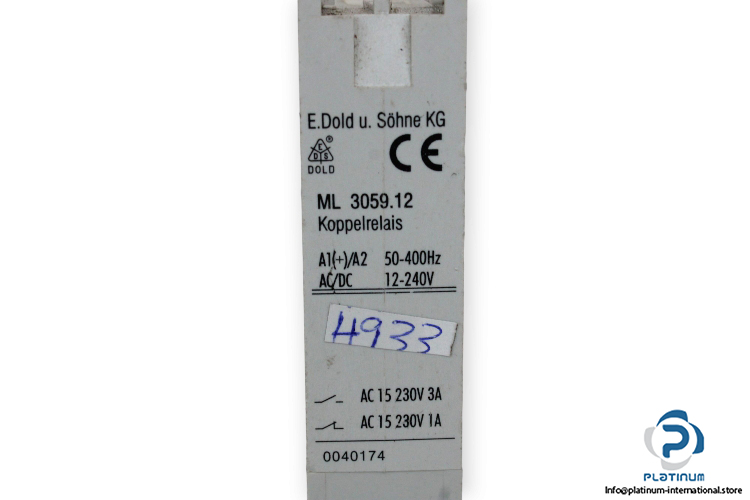

Dold ML 3059.12 Interface Relay
Manufacture: Dold
Type: Interface Relay
Model: ML3059.12
Art. No.: 0040174
Supply voltage: 12 … 240 V AC /DC
Frequency: 50 … 400 Hz
Output: 2 changes over contact (SPDT)
Switching capacity
AC-15: 230 V AC,3 A
AC-15: 230 V AC,1 A
Operating temperature range: -20 … +60°C
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Dimensions: 22.5 x 81 x 98.5 mm
