Epic H-A 16 SS Insert Plug Connector
Новинка
В наличии1 единицаГотово к отправке
Insert Plug Connector
EPIC H-A16SS / HA-16-WAY with 16 pins, 16 A rating, and 250 V operation. Robust polycarbonate housing with screw terminal mounting for industrial applications.1006755711053000016284-6678ConnectorElectricalEpicH-A16SSHA-16-WAYIndustrialinsertpinPlugPolycarbonatescrewterminal
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

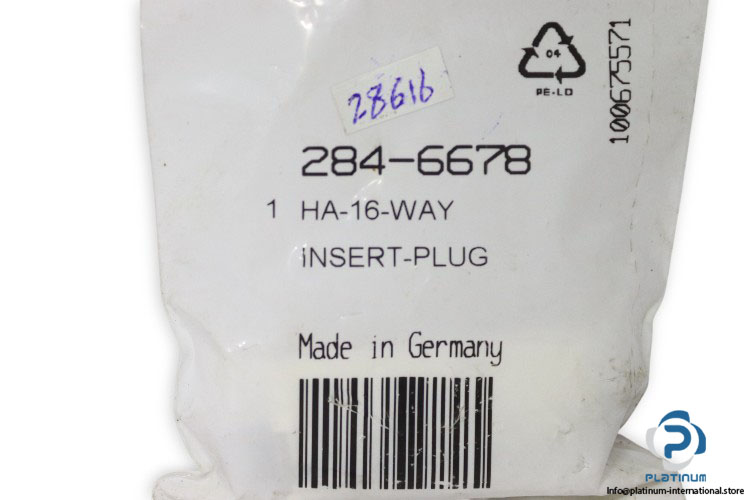

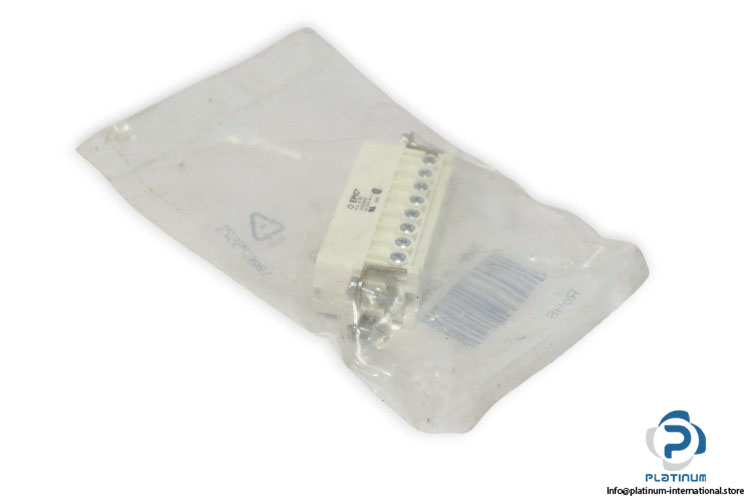

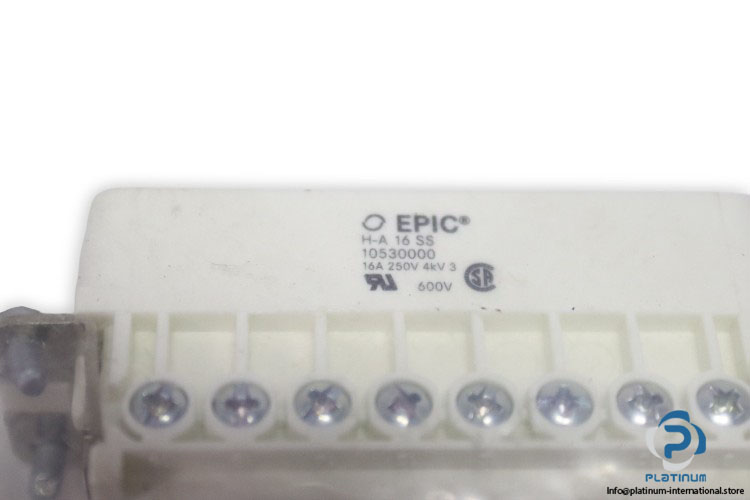

EPIC Insert Plug Connector H-A16SS / HA-16-WAY
The EPIC H-A16SS / HA-16-WAY Insert Plug Connector is engineered for reliable electrical connections in demanding industrial environments. With a robust polycarbonate construction, 16-pin configuration, and secure screw terminal mounting, it ensures safe and efficient performance in automation, machinery, and power distribution systems.
Manufacturer: EPIC
Type: Insert Plug Connector
Model: H-A16SS / HA-16-WAY
Part No.: 10530000
ID. No.: 284-6678
Ref. No.: 100675571
| Number of Pins | 16 |
| Current Rating | 16 A |
| Rated Voltage | 250 V |
| Rated Impulse Voltage | 4 kV |
| Pollution Degree | 3 |
| General Use Voltage | 600 V |
| Stripping Length | 8 mm |
| Material | PC, Polycarbonate |
| Temperature Range | -40°C to +120°C |
| Electrical Mounting | Screw Terminal |
| Insert Mounting | 66x16 mm |
