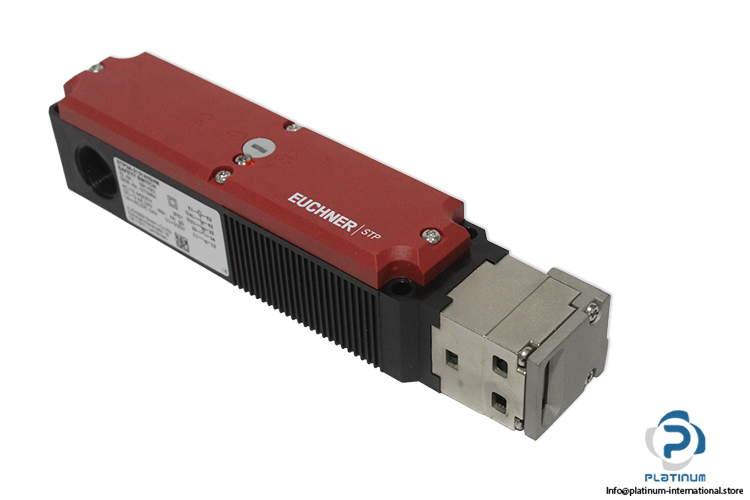

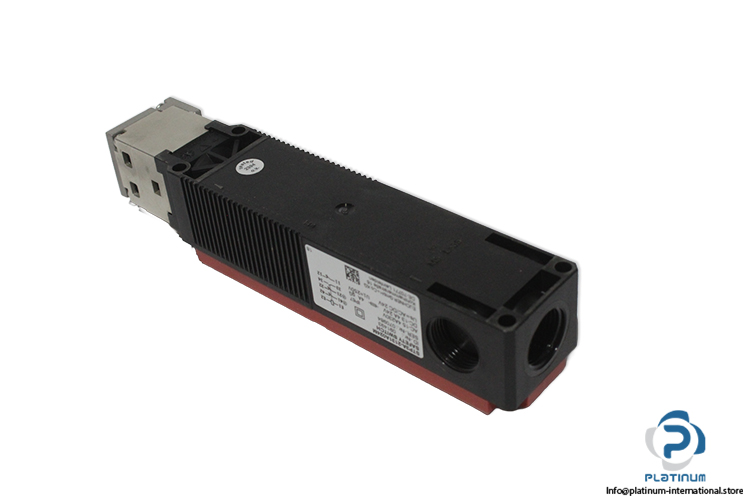

Euchner STP3A-2131A024M Roller Lever Safety Switch
Новинка
В наличии1 единицаГотово к отправке
199,99$
Safety Switch The EUCHNER STP3A-2131A024M is an industrial safety switch with 24 V DC solenoid, 2500 N locking force, and IP65 protection for reliable guard monitoring.
Б/у
В наличии 99,99$
Этот продукт также доступен в б/у варианте
Посмотреть использованную версию →
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества
| Part No. | 091493 |
| Solenoid Operating Voltage | 24 V DC |
| Power Consumption | 8 W |
| Rated Insulation Voltage Ui | 250 V |
| Rated Impulse Voltage (Uimp) | 2.5 kV |
| Locking Force Max. | 2500 N |
| Door Position Contacts No. | 1 Normally Closed (NC) |
| Guard Lock Monitoring Contacts | 1 Normally Open (NO) |
| Switching Voltage | 230 V AC / 24 V DC |
| Switching Current | 4 A |
| Guard Lock Monitoring Positively Driven Contacts No. | 2 |
| Actuating Head Direction | 90° Steps |
| Extraction Force | 30 N |
| Actuating Force | 35 N |
| Retention Force | 20 N |
| Connection | 3 x M20 Connector x 1.5 |
| Material | Reinforced Thermoplastic |
| Protection Class | IP65 |
| Ambient Temperature | -25 … 55 °C |
| Dimensions | 190 x 40 x 42 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103962 |
| Weight | 0,59 |
