Eurogi EMSR1NA/24C E018761 Relay Interface Module
Б/у
В наличии17 единицыГотово к отправке
29,99$
Relay Interface Module
The EUROGI EMSR1NA/24C module, with Siemens plug-in relay, provides reliable 24 V DC / 220 V AC switching. Compact and robust, it supports up to 8 A load current for industrial automation and control applications.11.5245:1882aACCompactConversionConverterCurrentDC/220VEMSR1NA/24CEurogiIndustrialInterfacemmPowerRatedVvoltagex
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

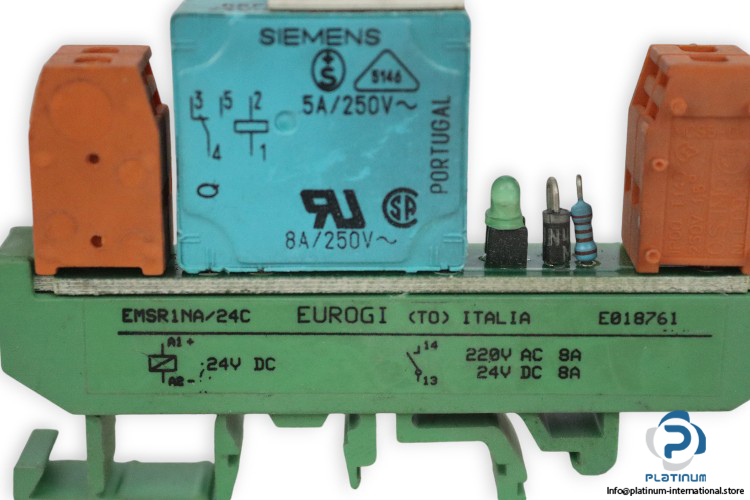

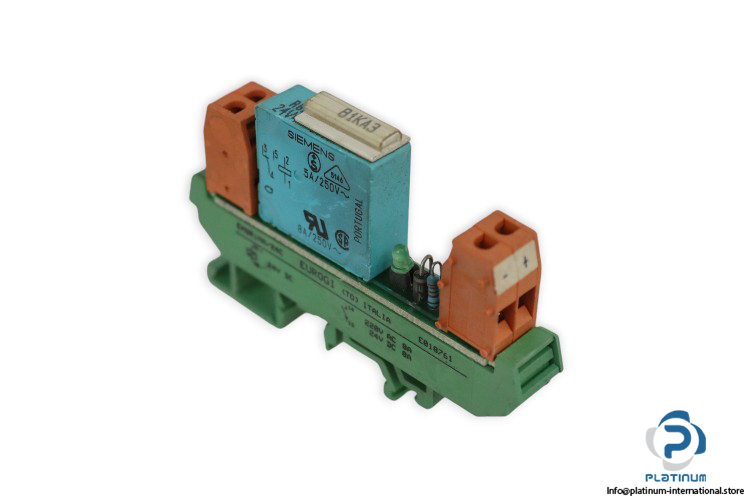

EUROGI EMSR1NA/24C Relay Interface Module
The EUROGI EMSR1NA/24C Relay Interface Module is designed for reliable signal switching and electrical isolation in automation and control systems. It comes equipped with a Siemens plug-in relay, offering robust performance and compatibility with industrial equipment. The compact design and high current rating make it ideal for panel installations and control cabinets.
Manufacturer: EUROGI
Type: Relay Interface Module
Model: EMSR1NA/24C
Part No.: E018761
Attached With: Siemens Plug-In Relay
Relay Rating:
5 A / 250 V~ (Main Marking on Top)
8 A / 250 V~ (Side Marking, UL Rating)
| Rated Voltage | 24 V DC / 220 V AC |
| Rated Current | 8 A |
| Dimensions (L × B × H) | 11.5 × 82 × 51 mm |
