Festo 19294 Vacuum Generator
Б/у
В наличии3 единицыГотово к отправке
45,00$
VACUUM GENERATOR
FESTO VAD-3/8 vacuum generator with T-shape body, 1.5 mm Laval nozzle, and high vacuum performance up to 80% for pneumatic systems.1.5Aluminumdie-castEjectorFestoGeneratorHighHousingIndustrialLavalmmNozzlePneumaticSourceT-ShapevacuumVAD-3/8
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

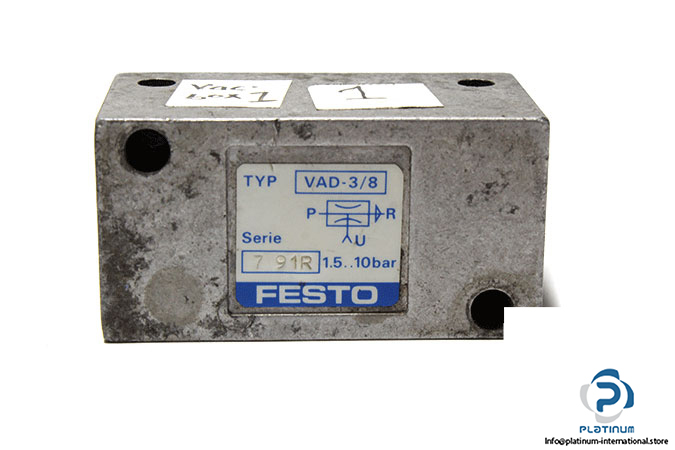

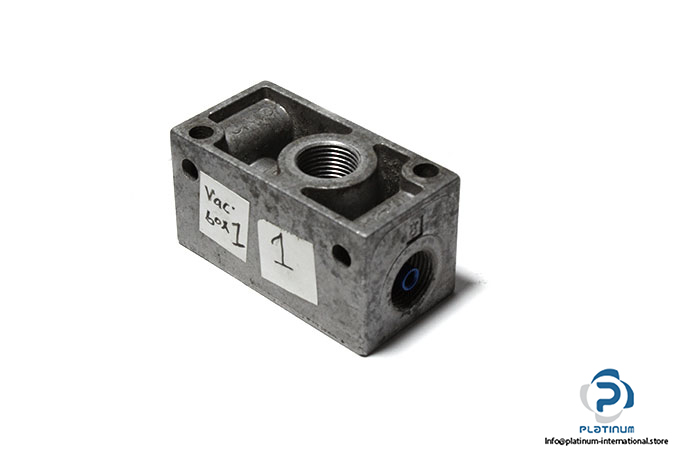

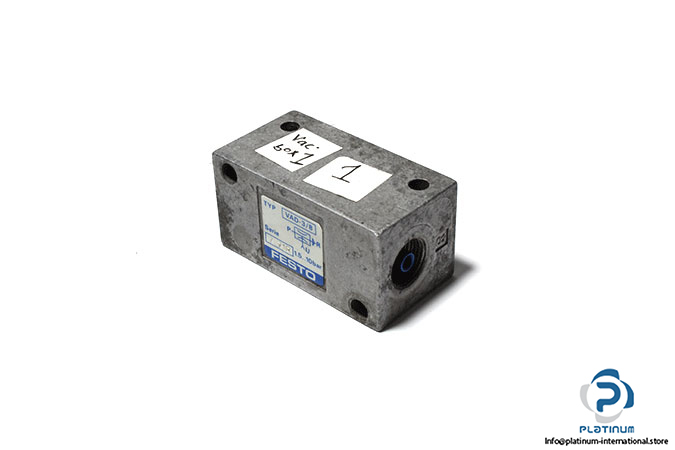

FESTO VAD-3/8 VACUUM GENERATOR
The FESTO VAD38 is a high-performance vacuum generator engineered for efficient pneumatic systems. Designed in a T-shape housing and equipped with a Laval nozzle, it delivers high vacuum capabilities under a wide pressure range and extreme temperatures.
Manufacturer: FESTO
Type: Vacuum Generator
Model: VAD-3/8
Part No.: 19294
| Design | T-Shape |
| Nominal Width of Laval Nozzle | 1.5 mm |
| Ejector Characteristics | High Vacuum |
| Operating Pressure | 1.5 / 10 bar |
| Vacuum Max. | 80% |
| Vacuum / Pneumatic Connection 1,3 | G3/8 |
| Housing Material | Die-Cast Aluminum |
| Medium Temperature | -20 / 80 °C |
