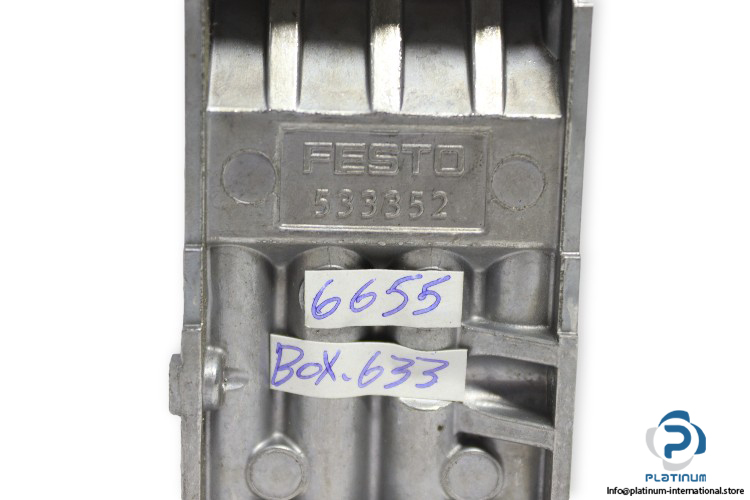

Festo 533352 SUB-Base
Б/у
В наличии5 единицыГотово к отправке
SUB-BASE WITH ELECTRONICS MODULE
FESTO VMPA1-FB-AP-4-1 sub-base with VMPA1-FB-EMS-8 electronics module supports 4 valve positions and 8 solenoid coils for advanced pneumatic control.ControlElectronicsFestoIndustrialModularModulePneumaticPneumaticsSub-BaseterminalValveVMPA1-FB-AP-4-1VMPA1-FB-EMS-8
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

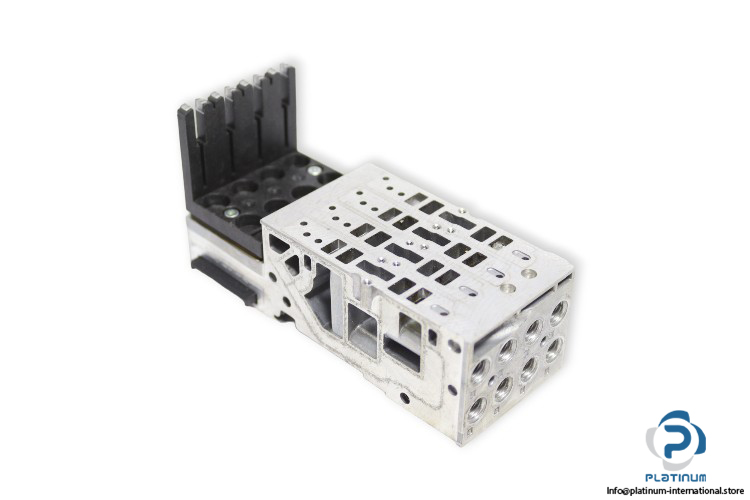

FESTO VMPA1-FB-AP-4-1 SUB-BASE WITH ELECTRONICS MODULE
The FESTO VMPA1FBAP41 is a high-performance sub-base designed for modular valve terminal systems. It supports up to four valve positions and is engineered for reliable pneumatic applications. This unit comes equipped with the FESTO VMPA1-FB-EMS-8 electronics module, ensuring seamless control of up to eight solenoid coils.
Manufacturer: FESTO
Type: Sub-Base
Model: VMPA1-FB-AP-4-1
Part No.: 533352

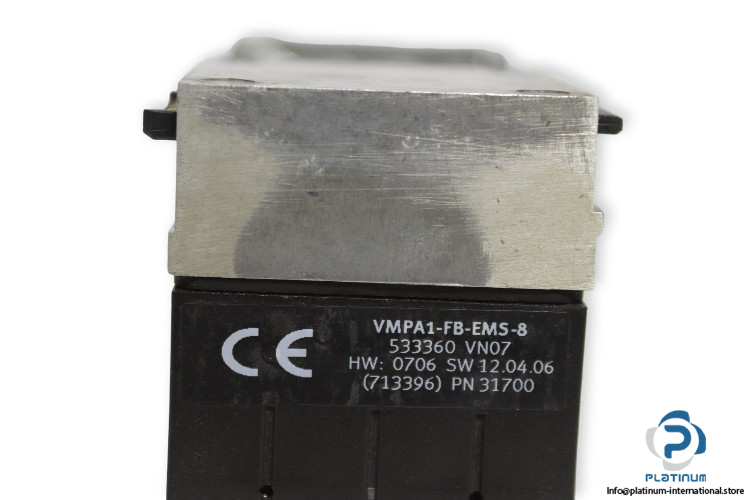

Electronics Module Technical Information
| Width | 42 mm |
| Length | 107.3 mm |
| Valve Positions No. Max. | 4 |
| Operating Pressure | -0.9 / 10 bar |
| Pilot Pressure | 3 / 8 bar |
| Pneumatic Connection | 7 mm |
| Material of Sub-Base | Die-Cast Aluminum |
| Temperature Range | -5 / 50 °C |
| Attachment | FESTO 533360 ELECTRONICS MODULE |
| Part No. | 533360 |
| Valve Positions No. Max. | 4 |
| Solenoid Coils No. Max. | 8 |
| Nominal Pick-Up Current Per Solenoid Coil | 58 mA to 25 ms |
| Nominal Current with Current Reduction | 9 mA after 25 ms |
| Housing Material | POM |
