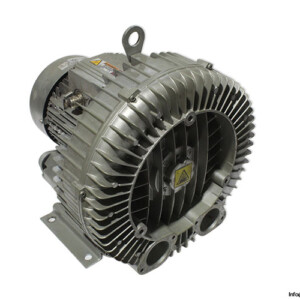

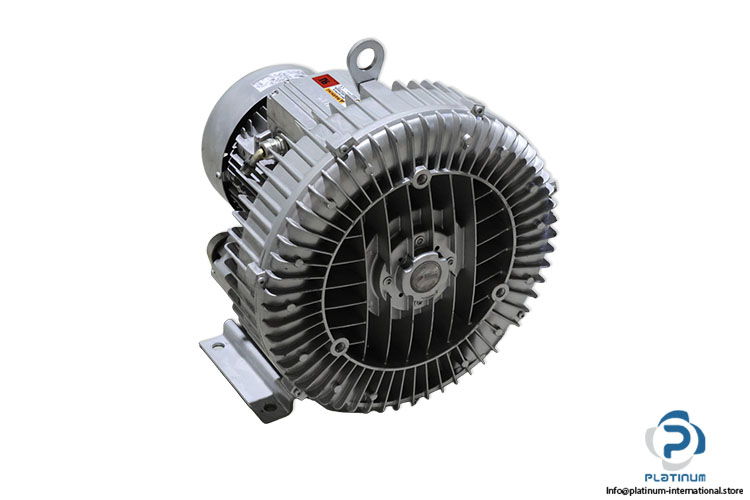

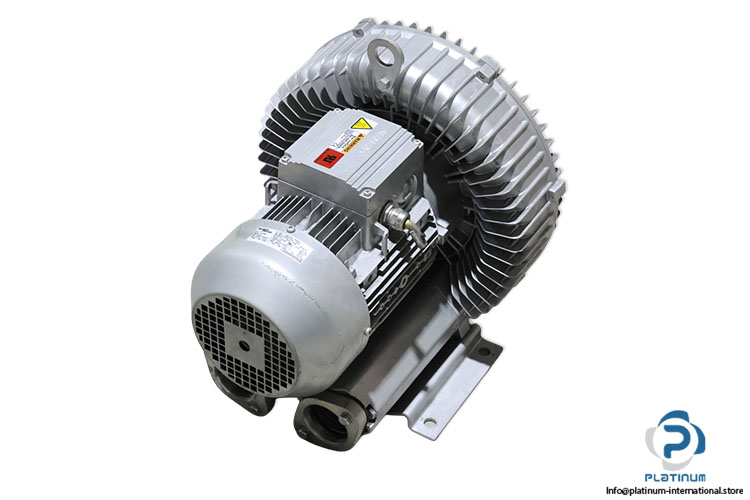

Gardner Denver G-BH1 2BH1600-7AH26 Side Channel Blower
Б/у
В наличии1 единицаГотово к отправке
Side Channel Blower GARDNER DENVER side channel blower designed for reliable vacuum and pressure generation, with multi-frequency operation, IP55 protection, and continuous S1 duty.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

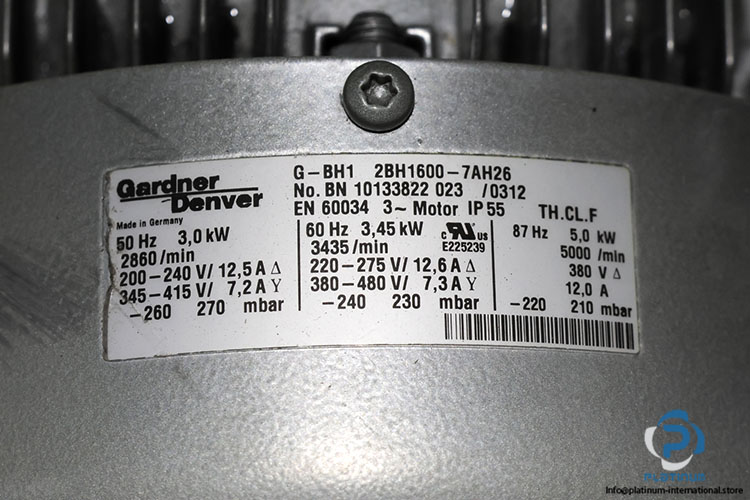

| Part No. | BN 10133822 023/0312 |
| Power Output (P2) | 3,0 kW/ 3,45 kW/ 5,0 kW |
| Wiring Connection | (Delta) / Y (Star) |
| Rated Voltage (V) at 50 hz | 200-240/345-415V |
| Rotational Speed (1/min) at 50 hz | 2860 RPM |
| Current Consumption (A) at 50 hz | 12.5/7.2 |
| Pressure Rating at 50 hz | -260 mbar (vacuum) / 270 mbar |
| Rated Voltage (V) at 60 hz | 220-275/380-480 vac |
| Current Consumption (A) at 60 hz | 12.6/7.3 |
| Rotational Speed (1/min) at 60 hz | 3435 |
| Pressure Rating at 60 hz | -240 mbar (vacuum) / 230 mbar |
| Rated Voltage (V) at 87 hz | 380 v |
| Rotational Speed (1/min) at 87hz | 5000 |
| Current Consumption (A) at 87 hz | 12 |
| Pressure Rating at 87 hz | -220 mbar (vacuum) / 210 mbar |
| Protection class | ip55 |
| insulation class | F |
| Standard | EN 60034 |
| Duty | S1 |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100584 |
| Weight | 36,5 |
