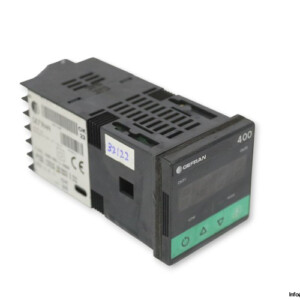

Gefran 400-RR-0-000 Microprocessor Controller
The Gefran 400RR0000 Microprocessor Controller is a compact and highly reliable control unit designed for precise temperature and process regulation. With multiple sensor inputs, robust relay outputs, and durable IP65 construction, it offers stable performance for a wide range of industrial applications.
Manufacturer: Gefran
Type: Microprocessor Controller
Model: 400-RR-0-000
Part No.: 400110000 / 99054585
Version: V.2.03
| Series | 400 |
| Sensor Input | Thermocouple Type J, K, R, S, T, B, E, N / Resistance Thermometer PT100 / Thermistor PTC |
| Supply Voltage | 20 … 27 V AC (Standard) / 11 … 27 V AC (Optional) |
| Power Consumption | 3 VA |
| Frequency | 50 … 60 Hz |
| Outputs Function | 2 Output Relay |
| Output Type | 250 V AC / 5 A |
| Number of Digits | 4 |
| Material | ABS |
| Protection Class | IP65 |
| Temperature | 0 … 55 °C |
| Dimensions | 48 x 48 x 109 mm |
