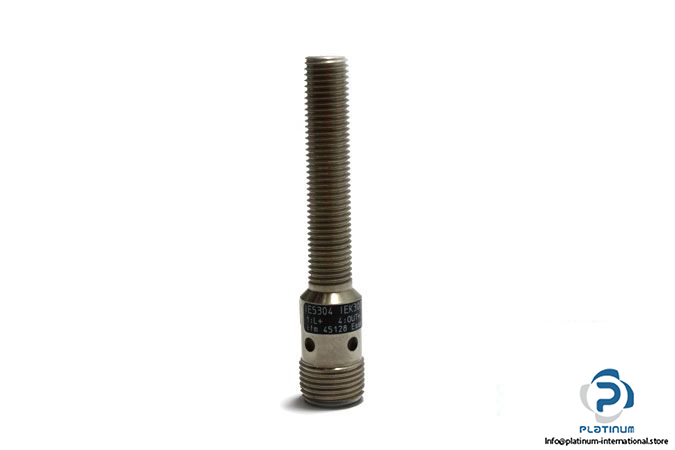

IFM IE5304 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IE5304

MRN: IEK3002BBPKG/V2A

Sensing Range: 2 mm

Operating Distance: 0 … 1.55 mm

Operating Voltage: 10 … 36V DC

Voltage Drop Max.: 2.5 V DC

Switching Output Current: 200 mA DC

Current Consumption: 15 mA

Switching Frequency: 800 Hz

Electrical Design: PNP

Output Function: Normally Open

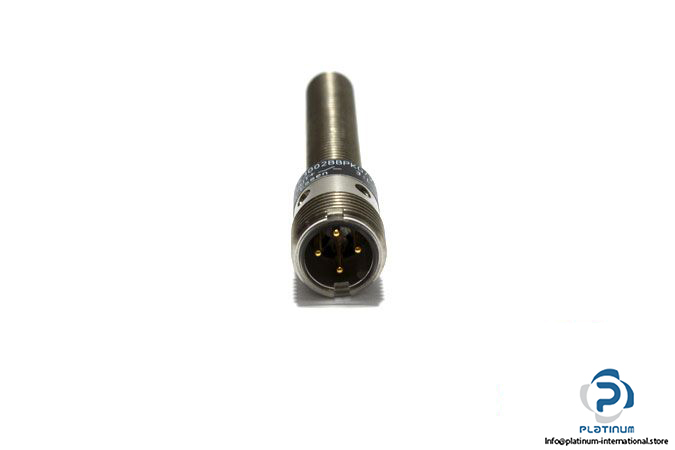

Connector Type: M12 Connector

Protection Class: III

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -20 … 70°C

Diameter, Housing Length: 8 , 62 mm

Material: PBT

Mounting: Flush Mountable

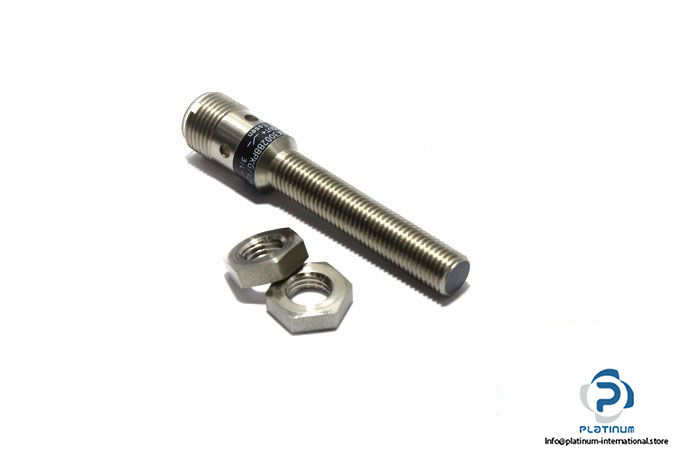

Supplied Accessories: 2 Lock Nuts
