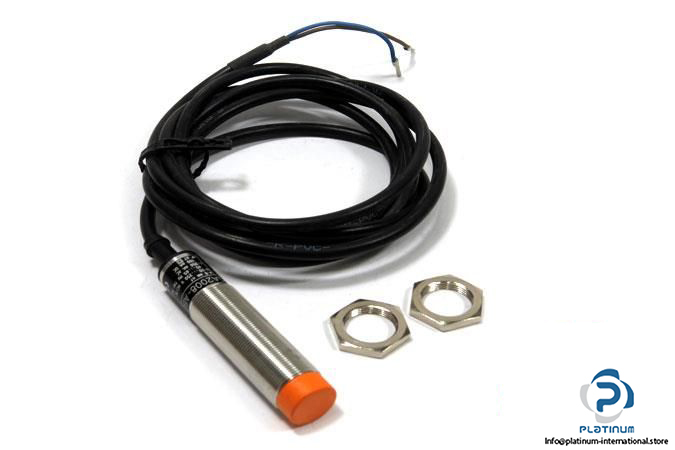

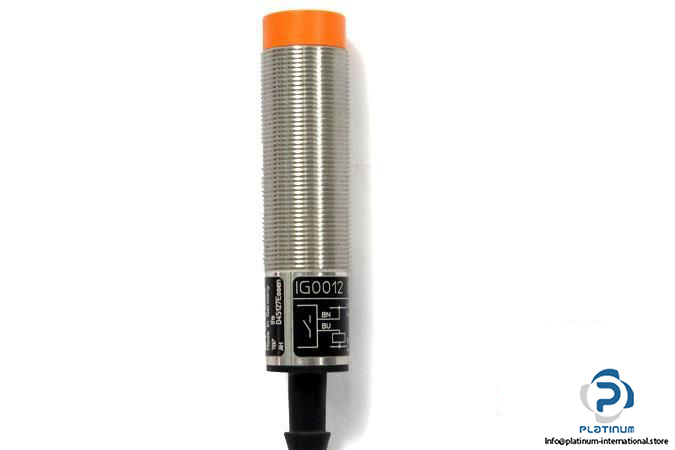

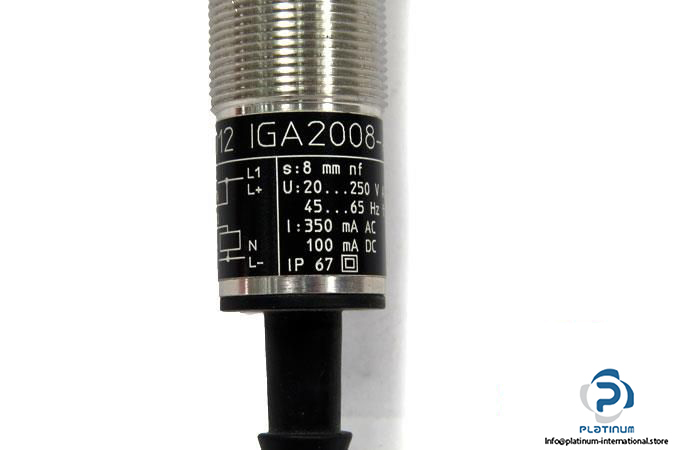

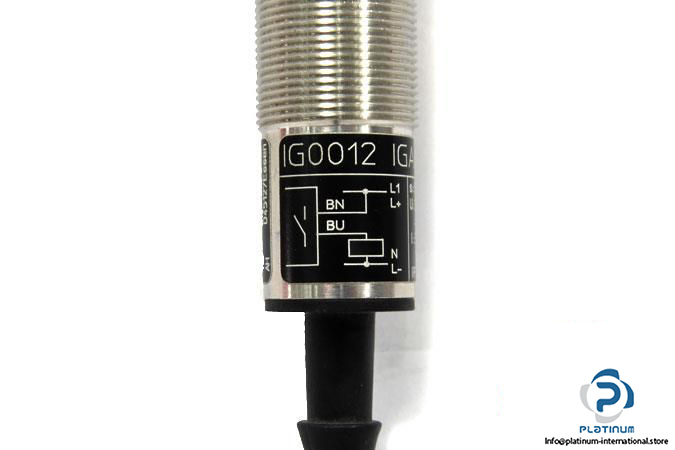

IFM IG0012 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IG0012

MRN: IGA2008-ABOA

Sensing Range: 8 mm

Real Sensing Range: 8 ± 10% mm

Operating Distance: 0 … 6.5 mm

Operating Voltage: 20 …250 V AC/DC, at 45 … 65 Hz for AC

Switching output current (AC, DC): 350 mA AC,100 mA DC

Switching frequency (AC, DC):  25, 50 Hz

Output Function: Normally open

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 18, 80 mm

Material: brass white bronze coated; sensing face: PBT natural

Mounting: Non-flush mountable

Weight: 148.2 g

Condition: New
