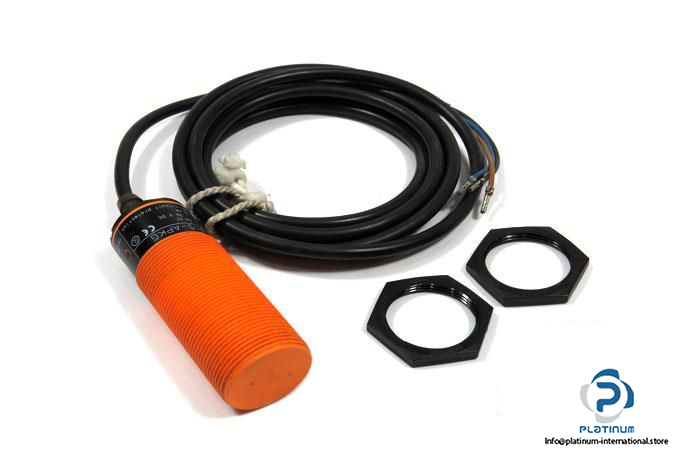

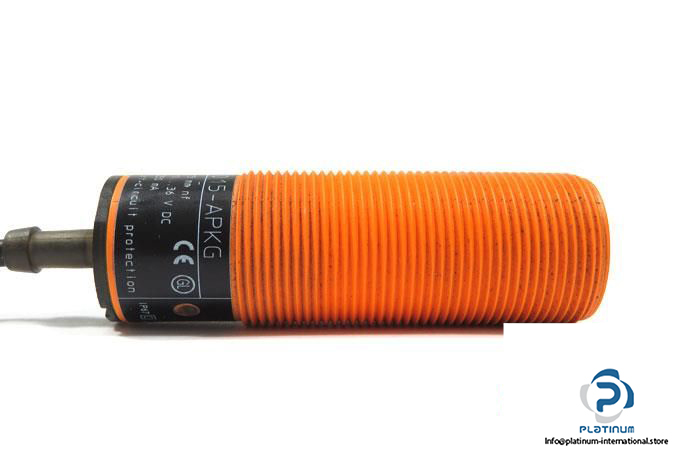

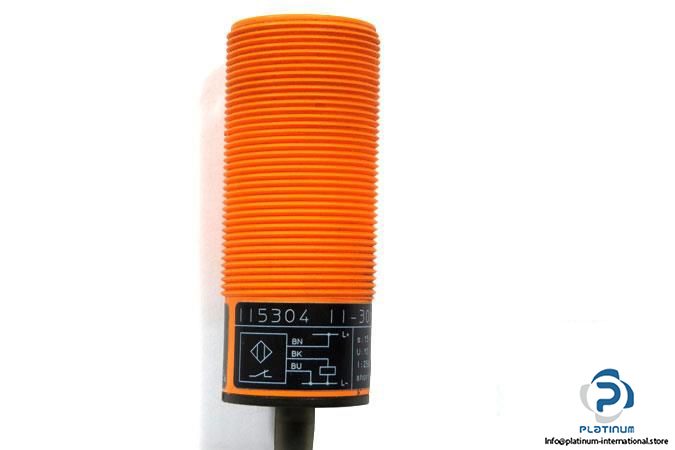

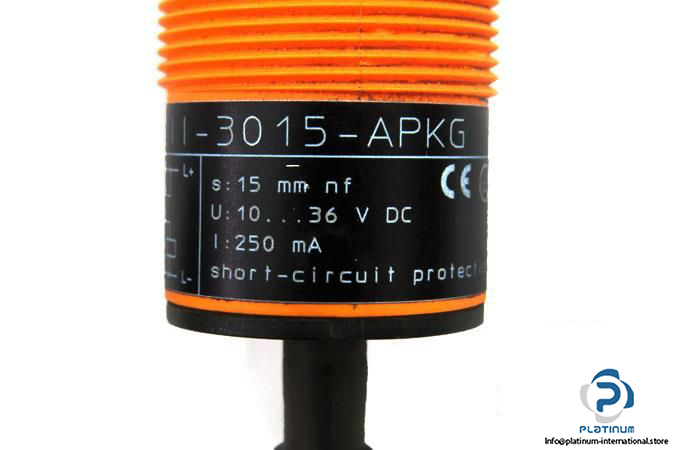

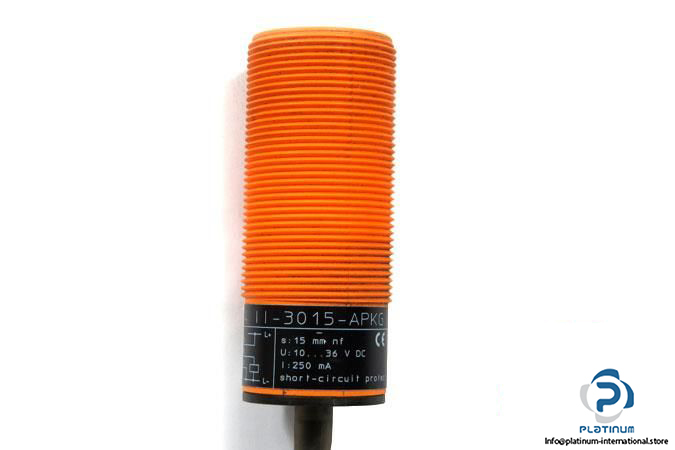

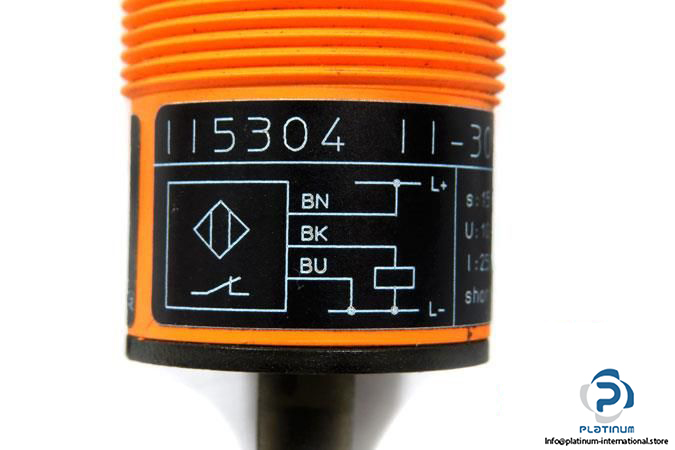

IFM II5304 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: II5304

MRN: II-3015-APKG

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10% mm

Operating Distance: 0 … 12.1 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Switching frequency: 250 Hz

Electrical Design: PNP

Output Function: Normally closed

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 30, 81 mm

Material: PBT

Mounting: Non-flush mountable

Supplied accessories: 2 lock nuts

Weight: 190.5 g

Condition: New
