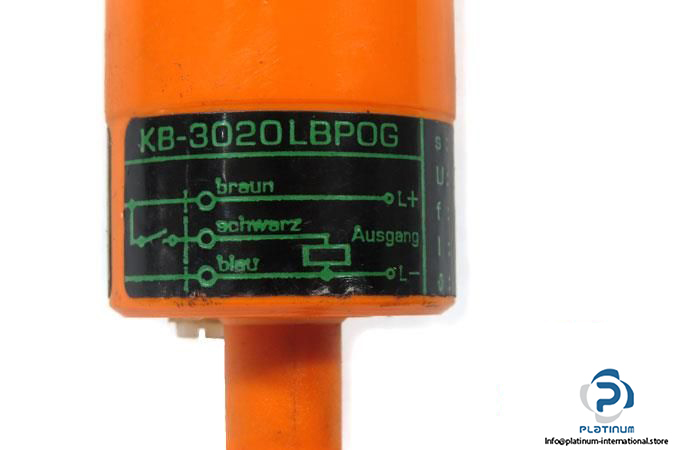

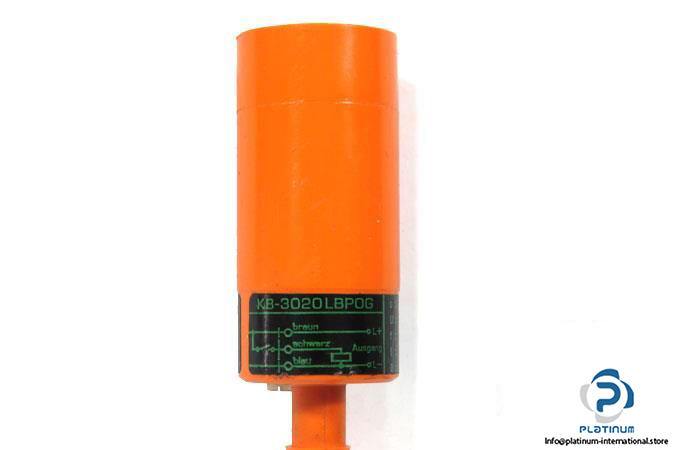

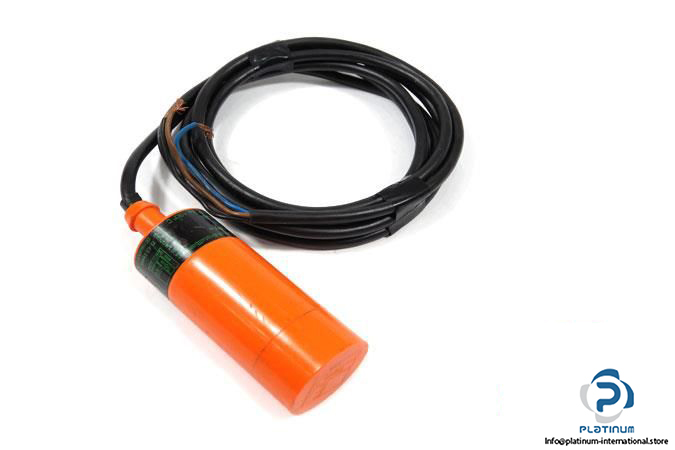

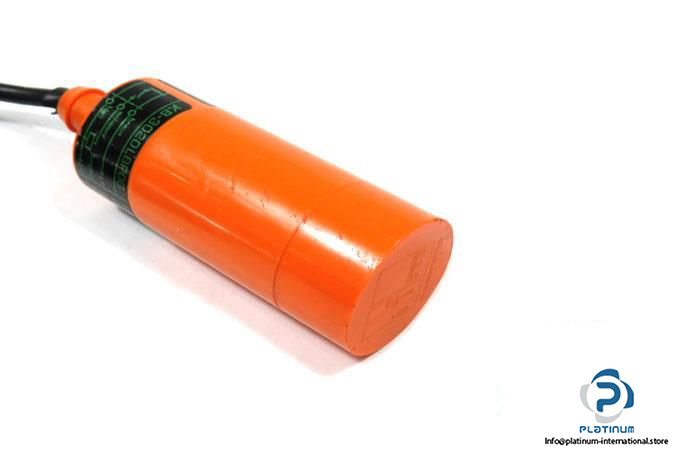

IFM KB-3020LBPOG Capacitive Sensor

Manufacturer: ifm

Type: CAPACITIVE SENSOR

Part No.: KB-3020LBPOG

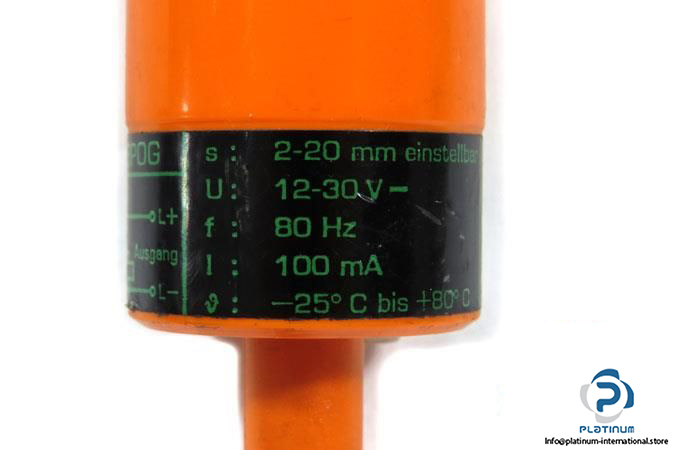

Sensing Range: 2 … 20 mm

Real Sensing Range: 20 ± 10% mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 12 … 30 V DC

Switching output current: 100 mA DC

Switching frequency:  80 Hz

Electrical Design: PNP

Output Function: Normally open

Connector type, length: PVC Cable, 2 m

Enclosure rating: IP65

Housing: Tubular

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 34, 81 mm

Weight: 0.18 kg
