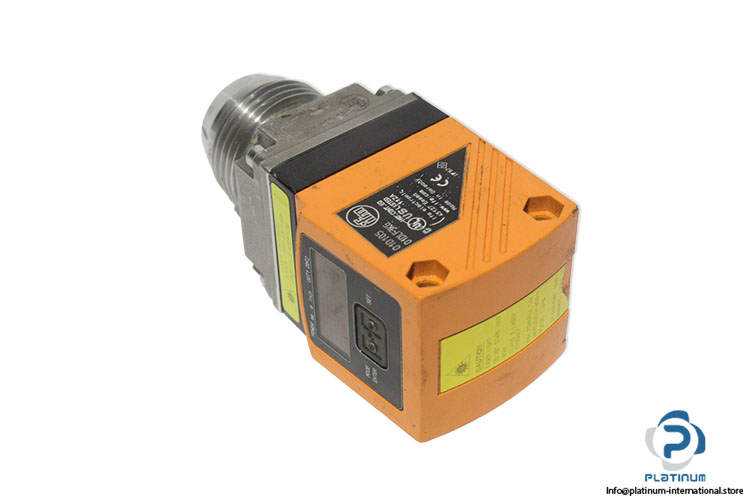

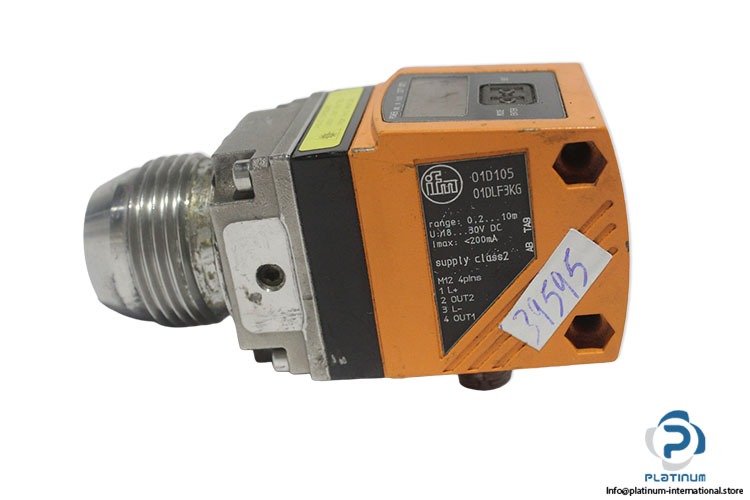

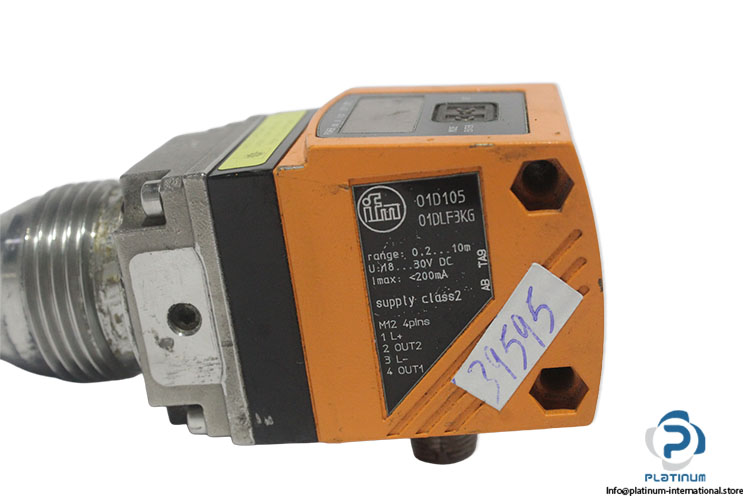

IFM O1D105 Photoelectric Distance Sensor
Б/у
В наличии1 единицаГотово к отправке
Photoelectric Distance Sensor The IFM O1D105 is a photoelectric distance sensor with a 0.2 to 10 m measuring range, IO-Link communication, PNP outputs, and IP67 protection for industrial automation applications.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества
| MNR | O1DLF3KG/IO-LINK |
| Laser protection class | 2 |
| Housing | rectangular |
| Application | Industrial applications / factory automation |
| Operating voltage[V] | 18...30 DC |
| Current consumption[mA] | 150 |
| Protection class | III |
| Number of digital outputs | 2; Number of analogue outputs: 1 |
| Total number of outputs | 2 |
| Electrical design | PNP |
| Output function | normally open / normally closed; (programmable) |
| Max. current load per output[mA] | 200 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] | 4...20; (scalable IEC 61131-2) |
| Max. load[O] | 250 |
| Analogue voltage output[V] | 0...10; (scalable IEC 61131-2) |
| Min. load resistance[O] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | Yes |
| Max. light spot diameter[mm] | 25 |
| Light spot dimensions refer to | 10 m |
| Background suppression[m] | 10...100 |
| Measuring range[m] | 0.2...10 |
| Sampling rate[Hz] | 1...33 |
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Ambient temperature[°C] | -10...60 |
| Wave length | 650 nm |
| pulse | 1,3 ns |
| Dimensions[mm] | 59 x 42 x 52 |
| Materials | housing: diecast zinc; front pane: glass; LED window: PC |
| Protection | IP 67 |
| Display,switching status | 2 x LED, yellow |
| Operation | LED, green |

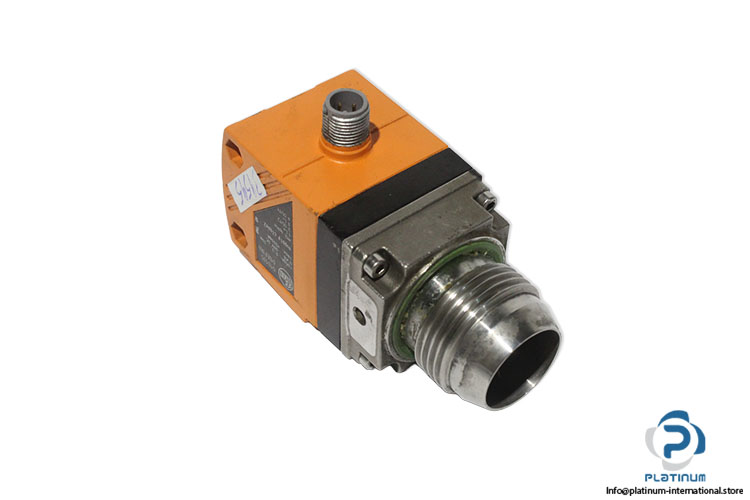

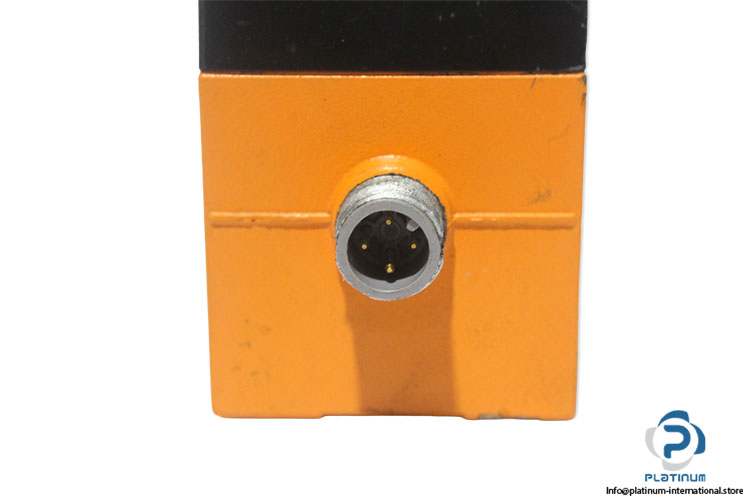

| Connector | 1 x M12; coding: A; Contacts: 5 |

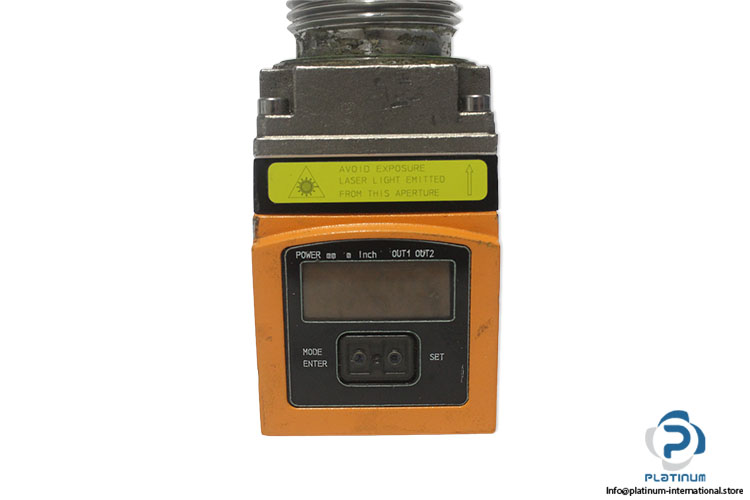

| distance value, programming | alphanumeric display, 4-digit |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1101012 |
| Weight | 0,38 |
