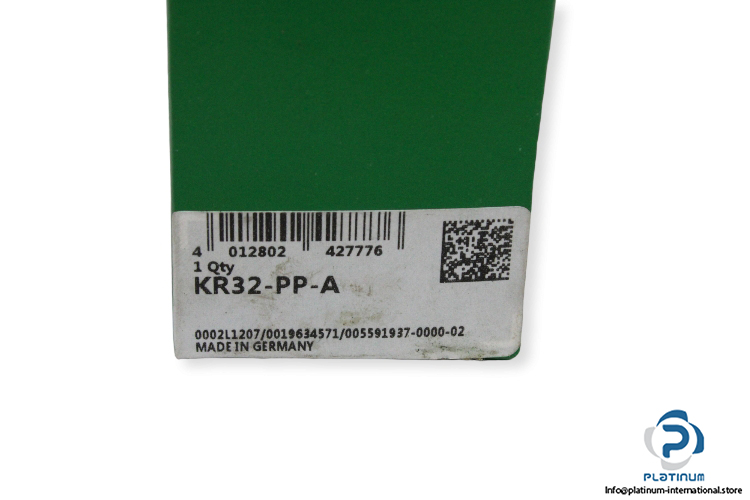

INA KR32-PP-A Stud Type Track Roller

Manufacturer: Schaeffler INA

Type:  Yoke type track rollers

Model: KR32 PP-A

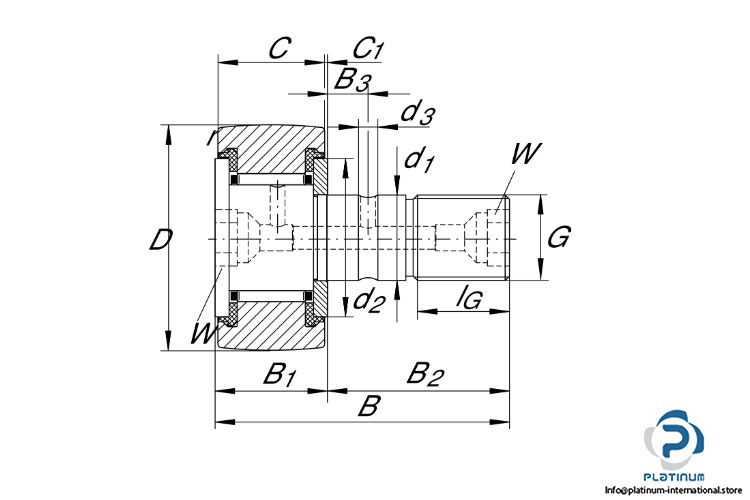

Dimensions:

Outside diameter D: 32 mm

Fit diameter of roller stud d₁: 12 mm

Width of the roller stud B: 40 mm

Roller Width B₁: 15.2 mm

Thread G: M12 X 1.5

Thread length: 13 mm

Basic load ratings, radial:

Dynamic C_{r w}: 7100 N

Static C_{0r w}: 9300 N

Fatigue load limit C_{ur w}: 1320 N

Speed on permanent grease lubrication: 5500 rpm

Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
