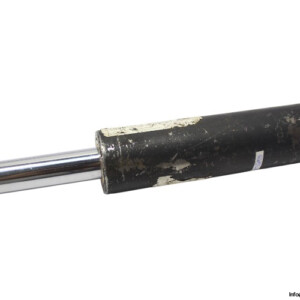

Kaller EP2 24X1,5-20 GAS Spring

Manufacturer: KALLER

Type: Gas Spring

Model: EP2 24X1,5-20

Min. charging pressure at 20°C: 10 Bar

Max. charging pressure at 20°C: 150 bar

Initial force at max. pressure: 1700 N

Initial force at max. pressure: 382 lbf

Max. piston rod velocity: 1.6 m/s

Pressure medium: Nitrogen

Charge port: M6

Cylinder diameter: 24 mm

Total length: 85 mm

Operating Temperature: 0 ….. 80 ^°C

Weight: 0.15 kg
