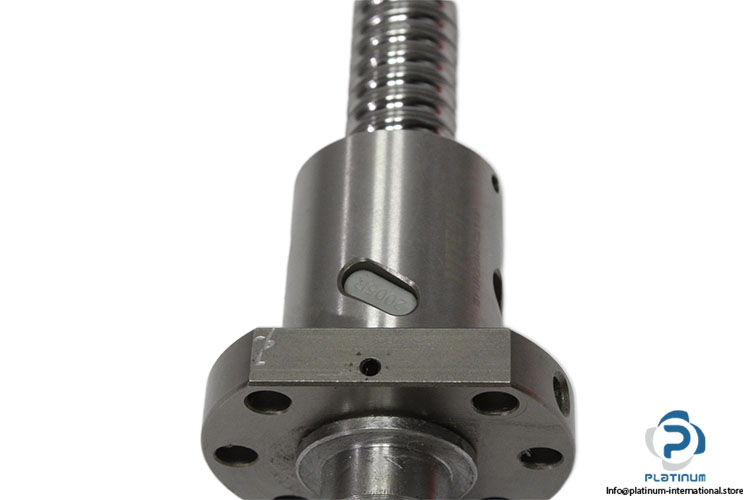

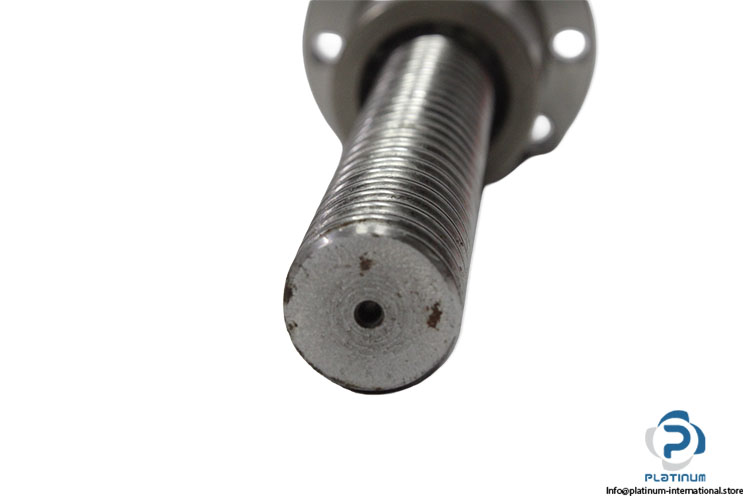

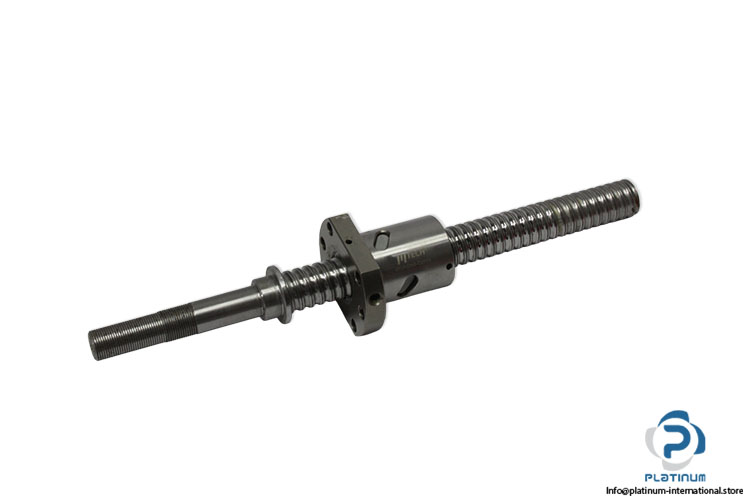

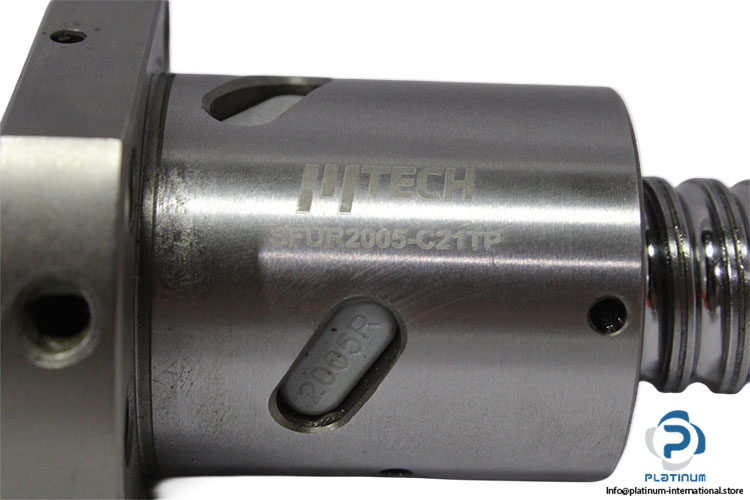

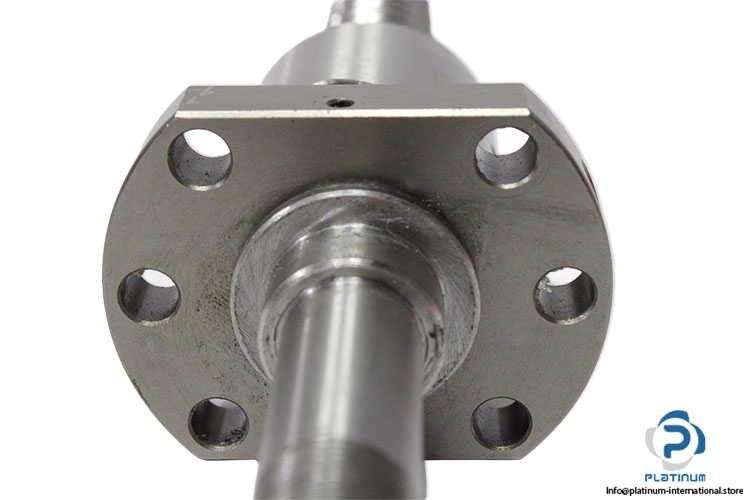

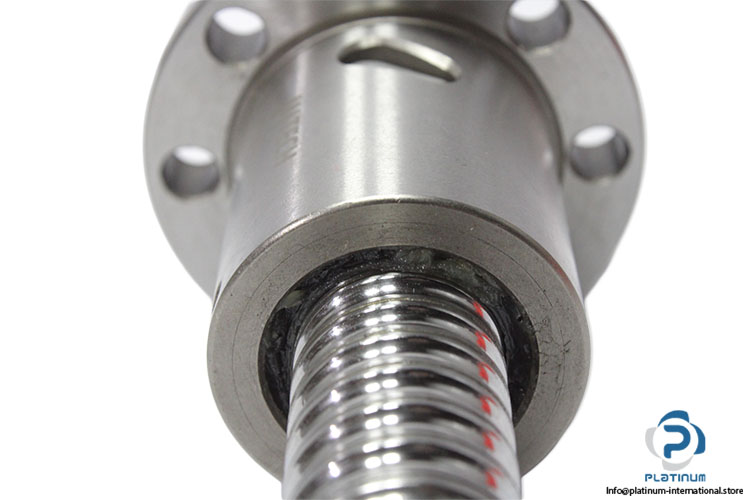

Mtech SFUR2005-C21TP Ball Screw
Новинка
В наличии11 единицыГотово к отправке
Ball Screw MTECH ball screw designed for accurate linear motion, efficient power transmission, and dependable performance in CNC machines, automation equipment, and precision motion control applications.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества
| Size | 20 x 5 R |
| Nominal Diameter dN | 20 mm |
| Lead P | 5 |
| Number of thread starts | 1 |
| Direction of Lead | Right-Hand Thread |
| Flange diameter | 58 mm |
| Nut outer diameter | 36 mm |
| Nut length | 51 mm |
| Flange thickness | 10 mm |
| Cutting flange width | 44 mm |
| Threaded length | 190 mm |
| Total screw length | 250 mm |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099713 |
| Weight | 0,86 |
