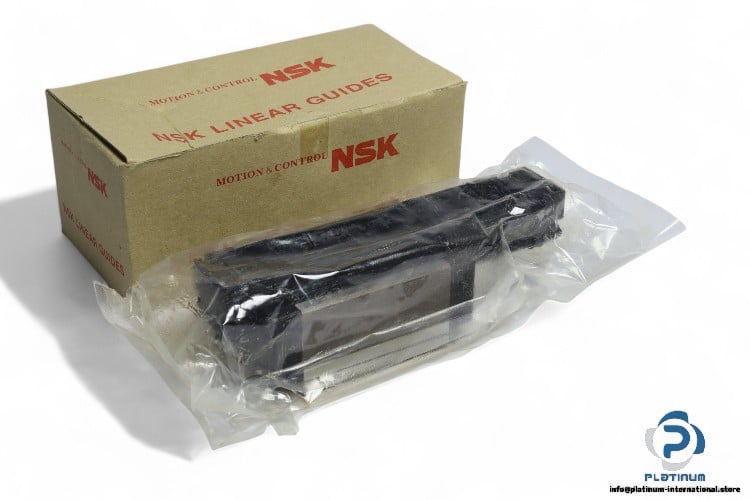

NSK NAH35ANZ Linear Guideway Block

Manufacturer: NSK
Type: LINEAR GUIDEWAY BLOCK

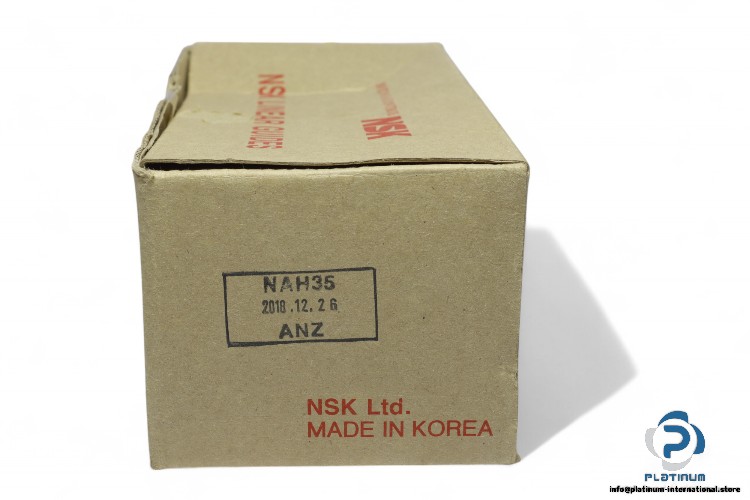

Model: NAH35AN Z

Size: 35 mm

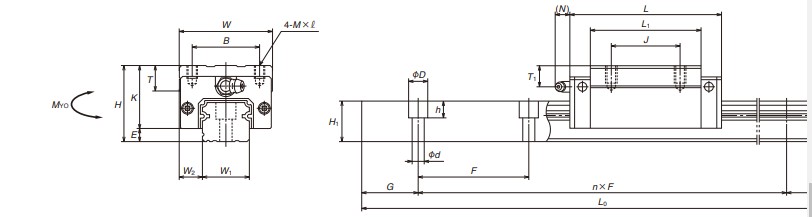

Dimensions
Total Height H: 55 mm
Block Width W: 70 mm
Block Length L: 109 mm
Block Height K: 45.5 mm
E: 9.5 mm
B: 50 mm
Interchangeable ball slide model code: NAH
Ball slide shape code: AN
Preload: Z, Slight preload
Block Type: Square Standard Type
Load Type: High Load
Basic Load Ratings:
Dynamic C: 62500 N
Static C₀: 80500 N
Allowable Static Moment:
X axis M_RO: 950 Nm
Y axis M_YO: 755 Nm
Z axis M_PO: 630 Nm
