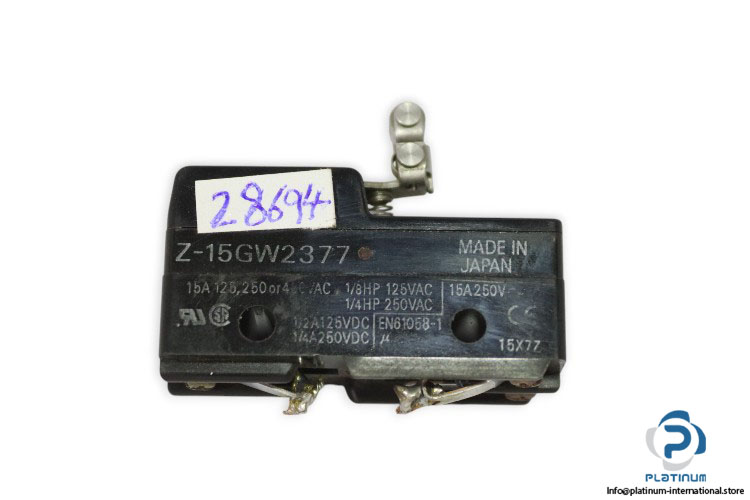

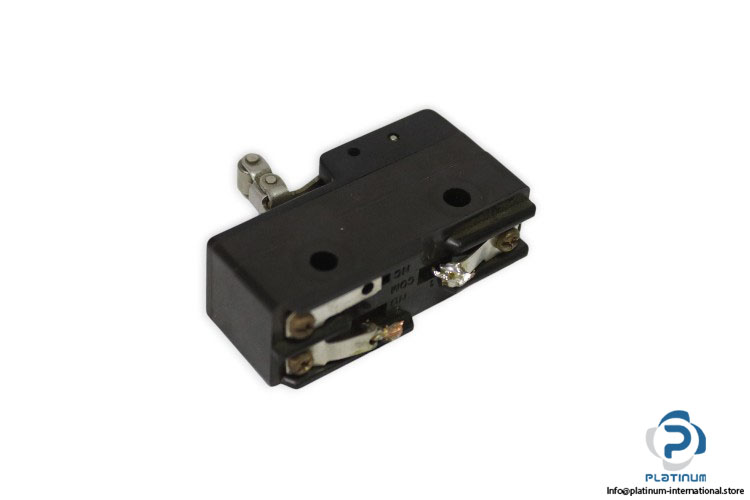

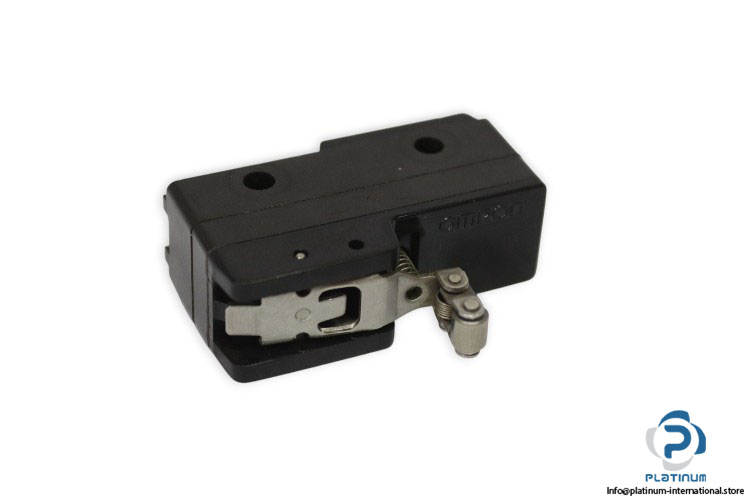

Omron Z-15GW2377 General-Purpose Basic Switch
Б/у
В наличии1 единицаГотово к отправке
Basic Switch
Omron Z15GW2377 general-purpose switch with SPDT contacts, short hinge roller lever, IP62 rating, and long mechanical life of up to 20 million cycles.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества
Omron Z15GW2377 General-purpose Basic Switch
The Omron Z15GW2377 from the Z series is a robust general-purpose basic switch designed for precise and reliable performance in industrial automation, machinery, and control applications. With high mechanical durability and excellent electrical life, it is a trusted solution for demanding switching environments.
Manufacturer: Omron
Type: General-purpose Basic Switch
Model: Z15GW2377
Series: Z
Ref. code: 15X77
| Contact Form | SPDT (Single Pole Double Throw) |
| Contact Gap | 0.5 mm (standard) |
| Current Rating | 15 A (AC), up to 0.5 A (DC) |
| Voltage Rating | 125/250/400 V AC |
| Switching Voltage | 125/250 V AC/DC |
| Actuator Type | Short hinge roller lever |
| Termination Style | Screw terminals (chassis mount) |
| Mechanical Life | Up to 20 million cycles |
| Electrical Life (AC) | Up to 500,000 cycles |
| Operating Temperature | -15 °C to +80 °C |
| IP Rating | IP62 |
| Standard | EN61058-1 |
