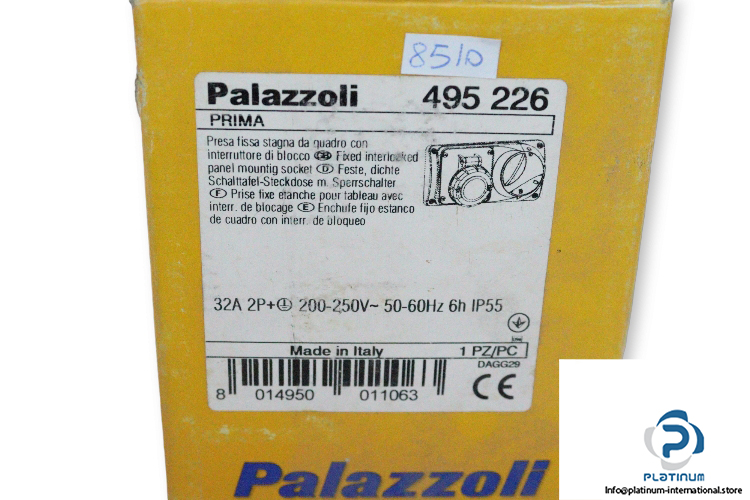

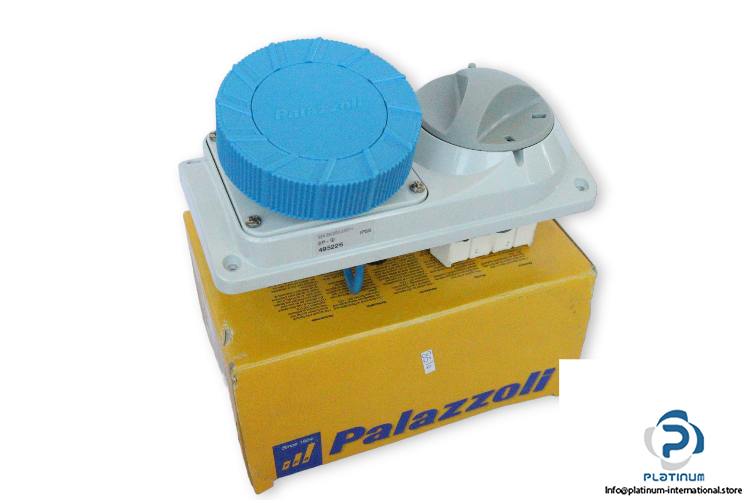

Palazzoli 495226 Interlocked Fixed Panel Mounting Socket

Manufacture: Palazzoli
Type: Interlocked Fixed Panel Mounting Socket
Model: PRIMA
Part No.: 495226

Rated voltage: 200 … 250 V AC
Rated insulation voltage: 690 V
Rated current Ie: 32 A
Frequency: 50 … 60 Hz
No. of poles: 2
Clock position: 6h
Terminals type: Screw–indirect clamping
Terminal tightening torque: 2 Nm
Manufacturing material: Techno polymer Recyclable Palazzoli
Protection degree: IP55
Working Environment Temperature: -25 … +50°C
Dimensions: 103 x 206 x 58 mm
