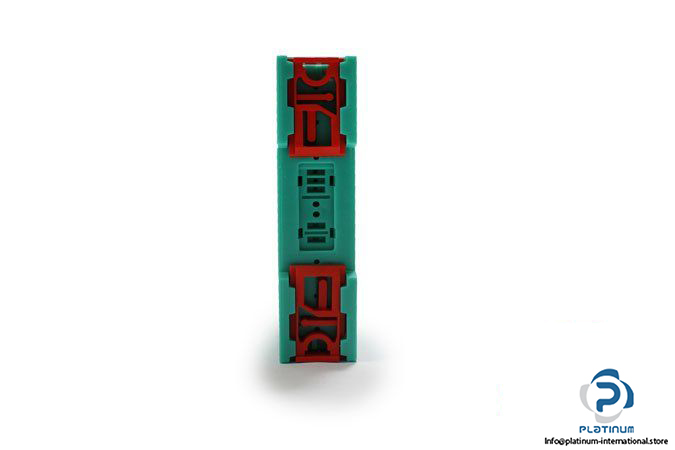

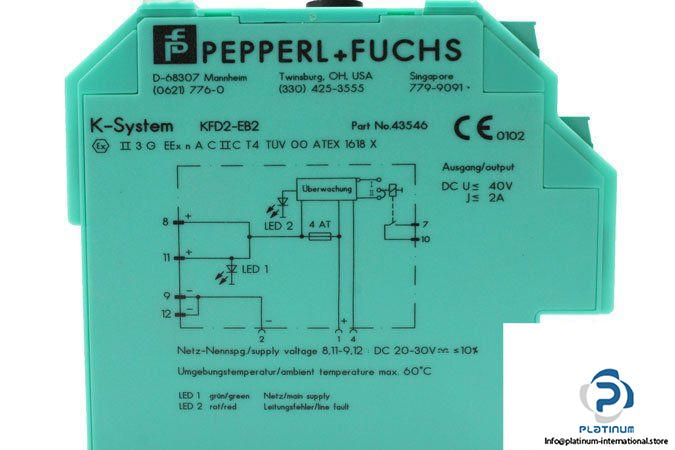

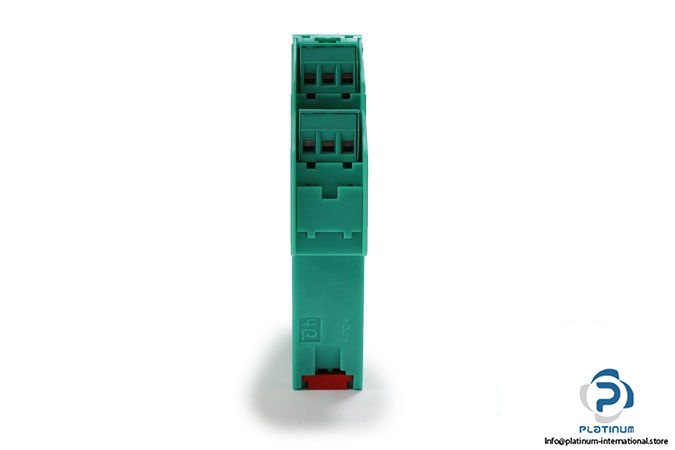

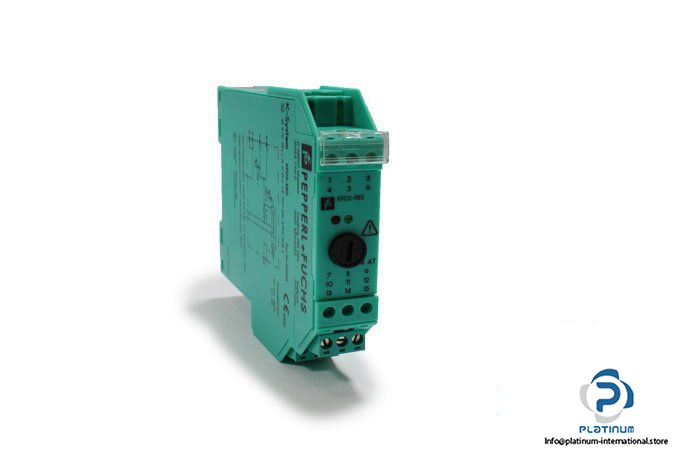

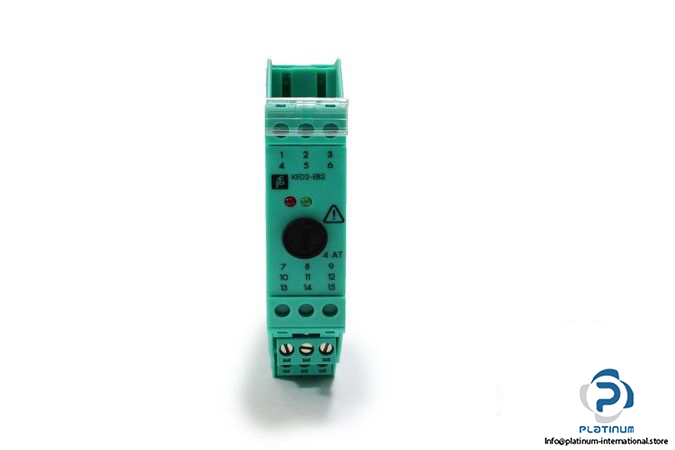

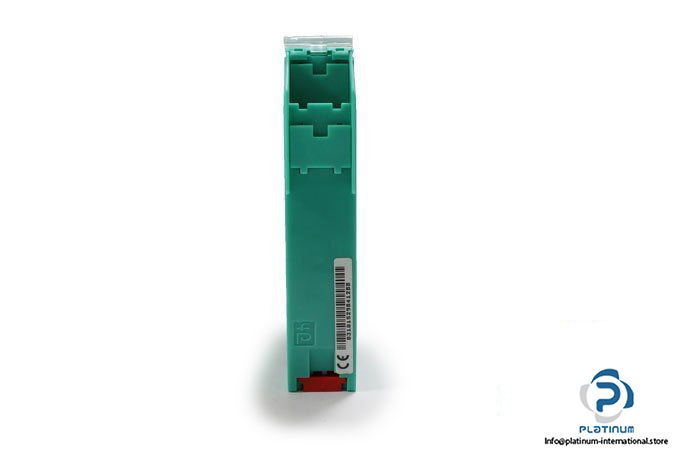

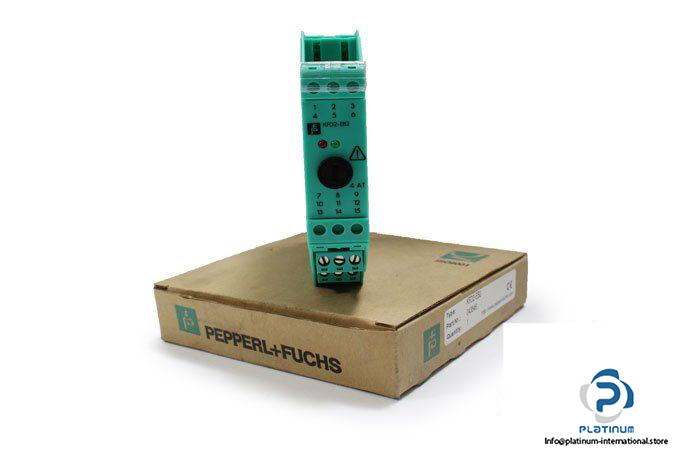

Pepperl+Fuchs KFD2-EB2 Power Feed Module

Manufacturer: PEPPERL+FUCHS

Type: POWER FEED MODULE

Model: KFD2-EB2

Part No.: 43546

Supply Voltage: 20 … 30 VDC

Fusing: 5 AT/250 VAC

Power Dissipation: ≤ 1 W

Connection: terminals 11+, 12- / terminals 8+, 9-

Output:

Connection: Power Rail

Output Rated Operating Current: ≤ 4 A

Fault Signal: relay output: NO contact

Contact Loading: 30 V AC/ 2 A / cos φ ≥ 0.7; 40 V DC/ 2 A

Energized/De-energized Delay: approx. 20 ms / approx. 20 ms

Ambient Temperature: -20 … 60 °C

Protection Degree: IP20

Dimensions: 20 x 119 x 115 mm

Weight: approx. 0.1 Kg
