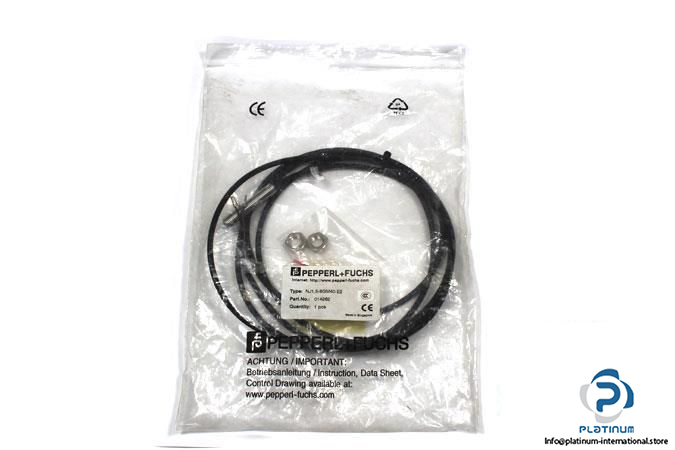

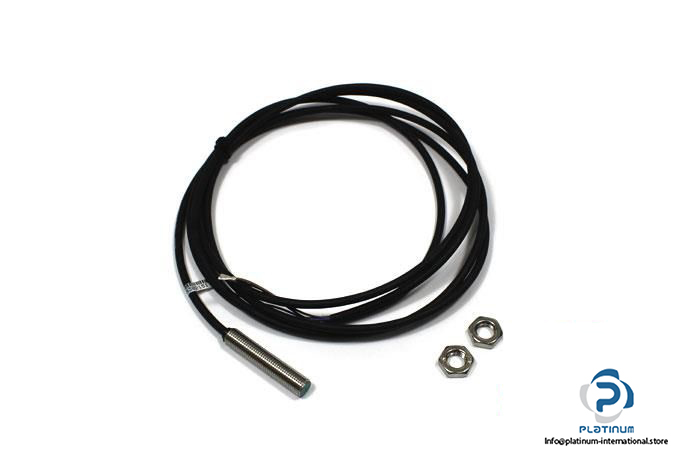

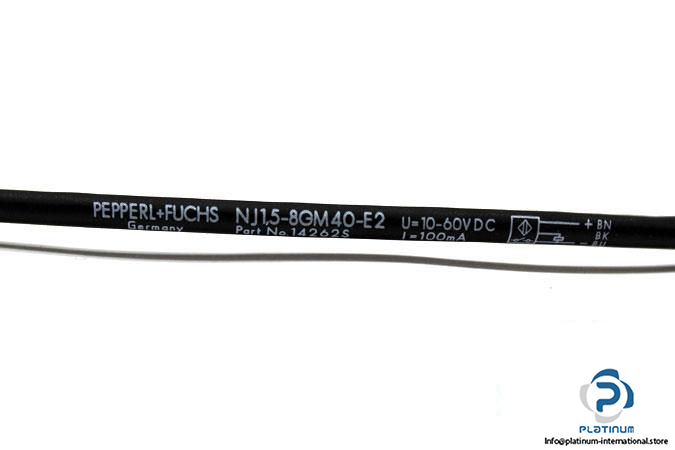

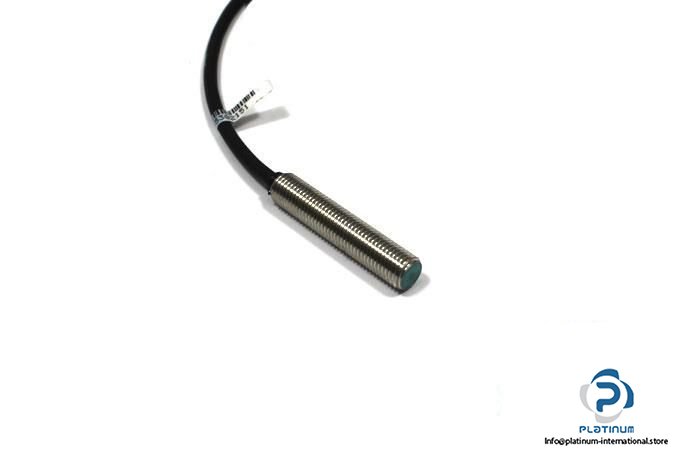

Pepperl+Fuchs NJ1,5-8GM40-E2 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ1.58GM40E2

Part No.: 14262S

Rated operating distance: 1.5 mm

Assured operating distance: 0 … 1.215 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 100 mA

Switching frequency: 0 … 500 Hz

Electrical design: PNP

Switching output: Normally open

Connector type: Cable, 2 m

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 8, 42 mm

Housing material: Stainless steel

Sensing face material: PBT

Mounting: Flush-mountable

Condition: New
