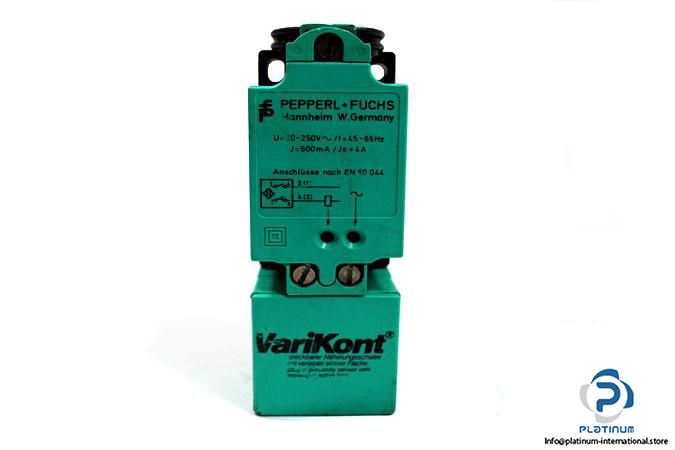

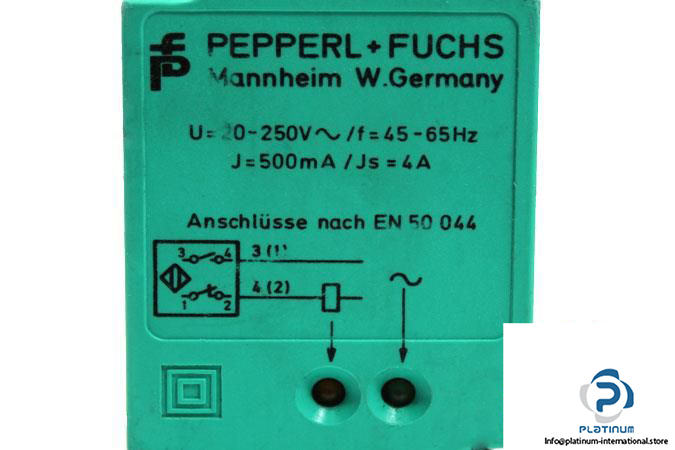

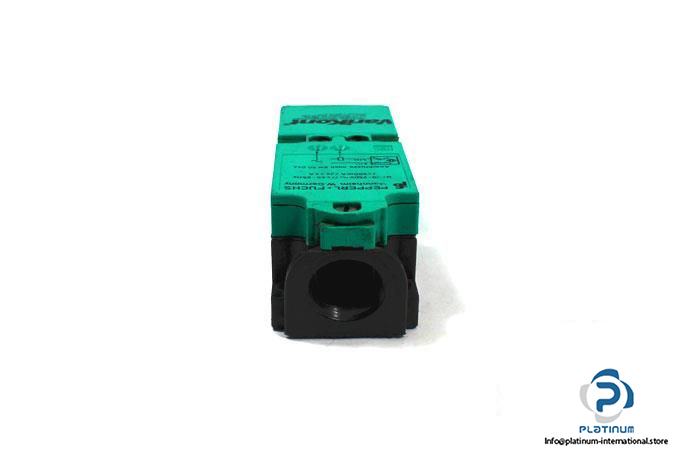

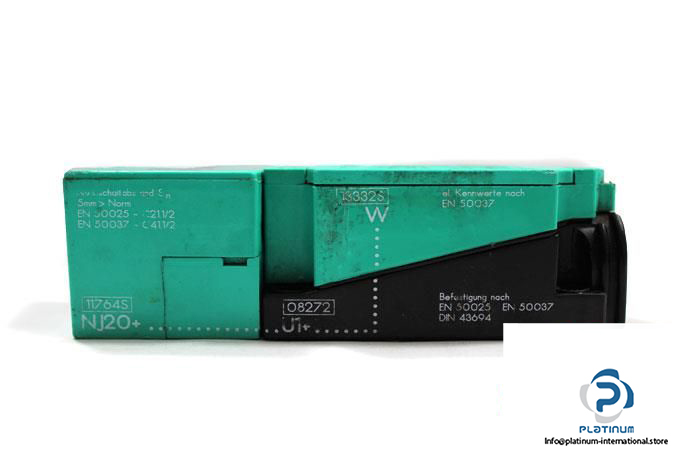

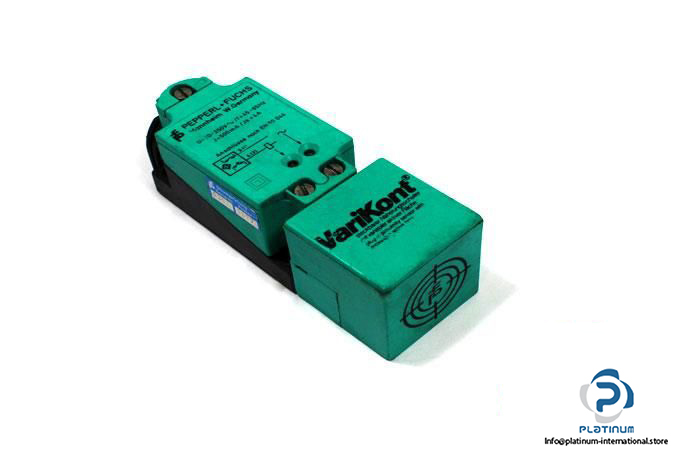

Pepperl+Fuchs NJ20+U1+W Inductive Sensor

Manufacturer: PEPPERL FUCHS

Series: VariKont

Type: INDUCTIVE SENSOR

Model No.: NJ20U1W

Rated operating distance: 20 mm

Assured operating distance: 0 … 16.2 mm

Operating Voltage: 20 … 250 V AC, at 45 … 65 Hz for AC

Operating Current: 8 … 500 mA

Switching output: Normally open/normally closed

Connector type: Terminal compartment

Protection class: II

Enclosure rating: IP68

Ambient Operating temperature: -25 … 70°C

Dimensions: 40 x 40 x 118 mm

Housing: Rectangular

Housing material: PBT

Sensing face material: PBT

Mounting: Non-flush mountable

Condition: Used
