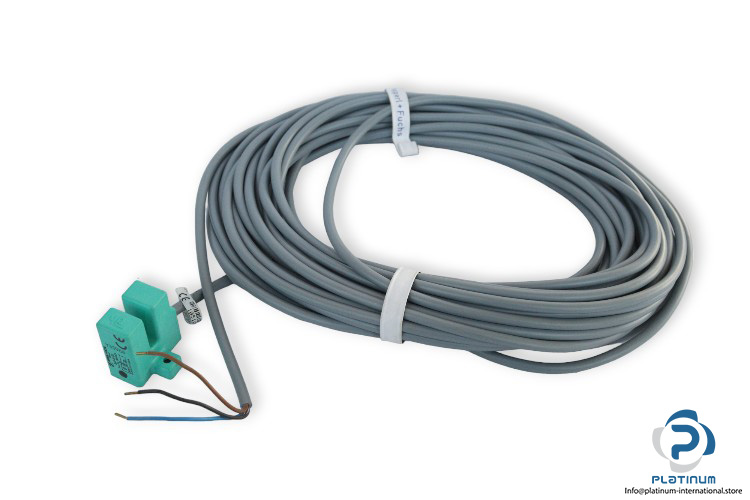

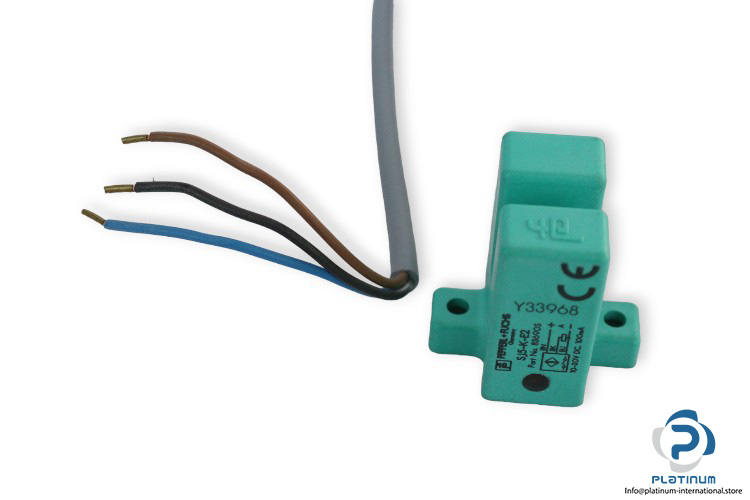

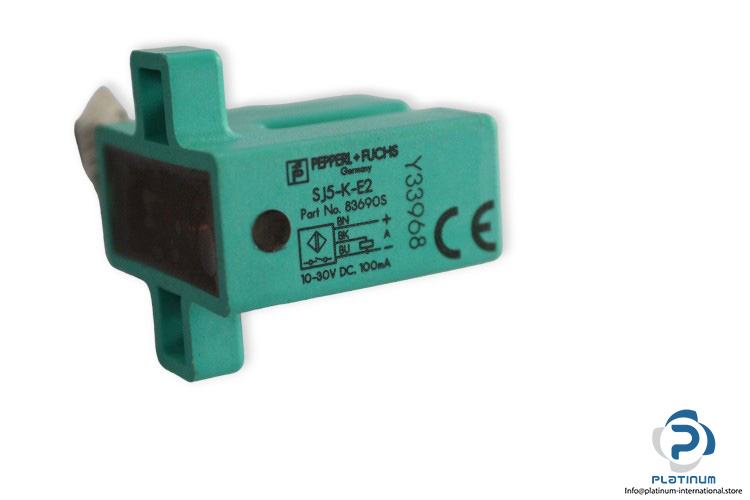

Pepperl+Fuchs SJ5-K-E2 Inductive Slot Sensor

Manufacturer: Pepperl+Fuchs
Type: Inductive Slot Sensor
Model: SJ5KE2
Part No.: 83690S

Slot width: 5 mm
Depth of immersion (lateral): 8 … 10 typ
Operating Voltage: 10 … 30 V DC
Current consumption: 100 mA
Reverse polarity protection: reverse polarity protected
No-load supply current I0: ≤ 15 mA
Switching frequency: 0 … 1500 Hz
Switching element function: PNP
Switching state indicator: LED, yellow
Standard: IEC / EN 60947-5-2
Ambient temperature: -25 … 70°C
Connection type: cable PVC , 2 m
Core cross-section: 3 x 0.34
Housing material: PBT
Degree of protection: IP67
Short-circuit protection: pulsing
Switching output: Normally open
Dimensions: 29 x 32 x 31 mm
