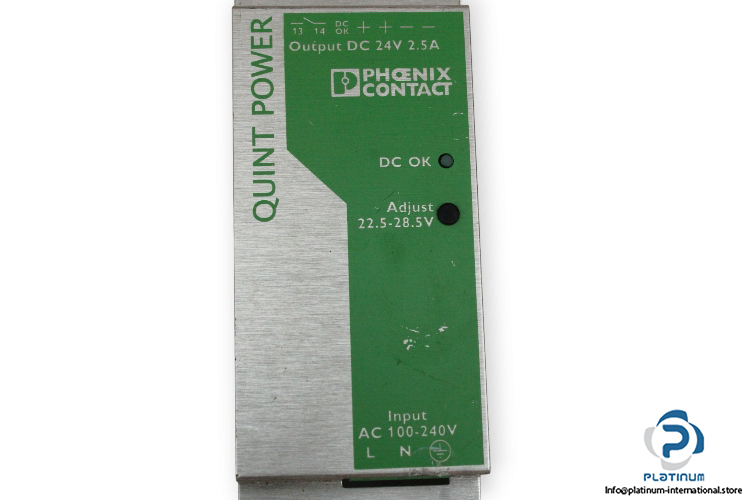

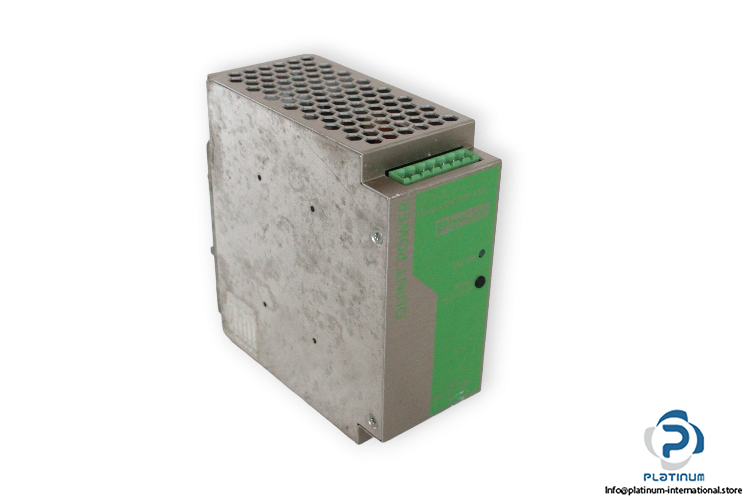

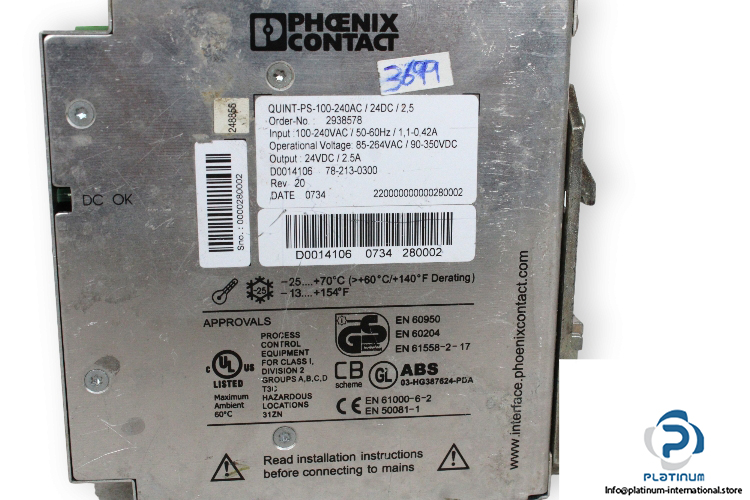

Phoenix Contact QUINT-PS-100-240AC/24DC/2,5 Power Supply
Manufacture: Phoenix Contact
Type: Power supply
Model: QUINT-PS-100-240AC/24DC/2,5
Order No.: 2938578
Input
Voltage: 100 … 240 V AC (85 … 264 V AC, 90 … 350 V DC)
Current: 1.1 … 0.42 A
Frequency: 50 … 60 Hz
Output
Voltage: 24 V DC (22.5 … 28.5 V DC)
Current: 2.5 A
Power: 60 W
Connection method: COMBICON screw/plug-in connection
Degree of protection: IP20
Type of housing: AluNox (AlMg1), closed
Ambient temperature (operation): -25 … 70 °C
Dimensions: 55 x 130 x 125 mm
