Piab 3116064 Inductive Universal Vacuum Switch

Manufacturer: PIAB

Type: INDUCTIVE UNIVERSAL VACUUM SWITCH

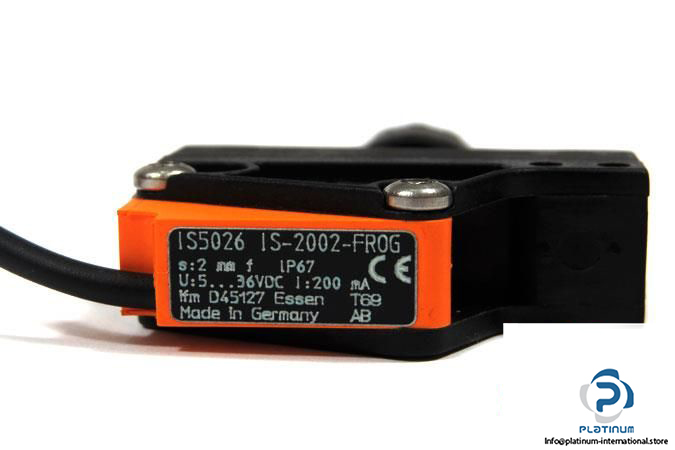

Model: IS5026 IS-2002-FROG

Item No.: 31.16.064

Features: Converts a Vacuum Level to A Digital Signal, 24 VDC.

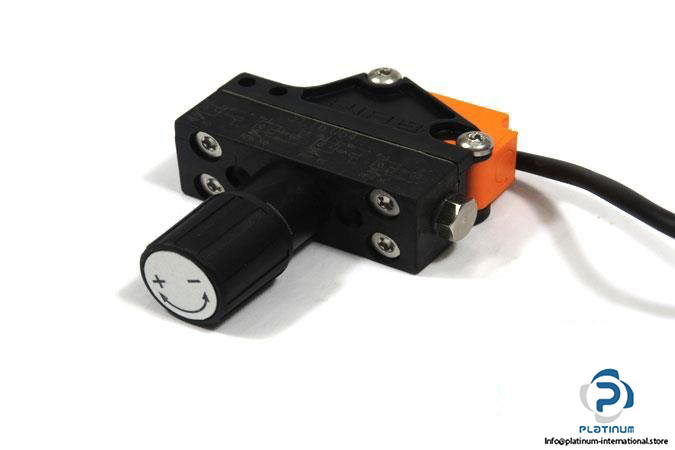

Vacuum setting options: Knob

Max. Current:  200 mA

Voltage: 24 (5…36) V DC

Max. Voltage drop:  4.6 V DC

Max. Pressure:  0.6 MPa

Valve function: PNP NO/NC, NPN NO/NC

Signal Range: 10 – 95 kPa

Safety Classification: IP67

Temperature: -25…80 °C

Dimensions (L x W x H): 16.5 x 47.5 x 63.8 mm

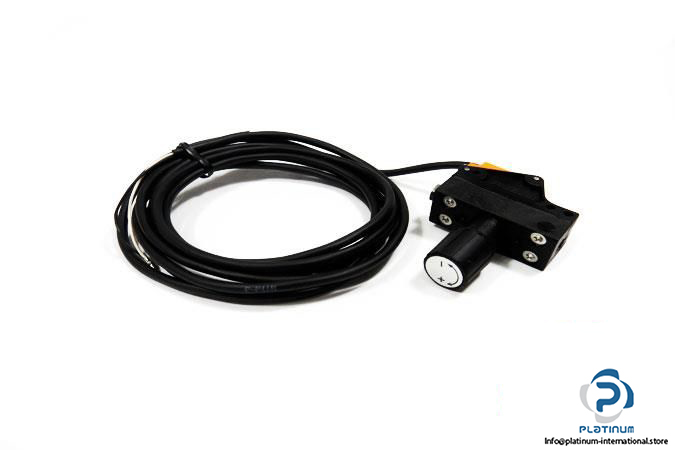

Connection: Cable, 2 m

Weight: 71 g

Condition: New
