Pizzato MS 09 Microswitch With Threaded Plunger

Name: PIZZATO MS 09 MICROSWITCH WITH THREADED PLUNGER
SKU: 1085823
Price: 11.11 USD
Availability: LimitedAvailability

pizzato-MS-09-microswitch-with-threaded-plunger-used

pizzato-MS-09-microswitch-with-threaded-plunger-used-1

pizzato-MS-09-microswitch-with-threaded-plunger-used-2

pizzato-MS-09-microswitch-with-threaded-plunger-used-3

Б/у

Доступно по запросу

11,11$

MICROSWITCH + PRESSURE SWITCH

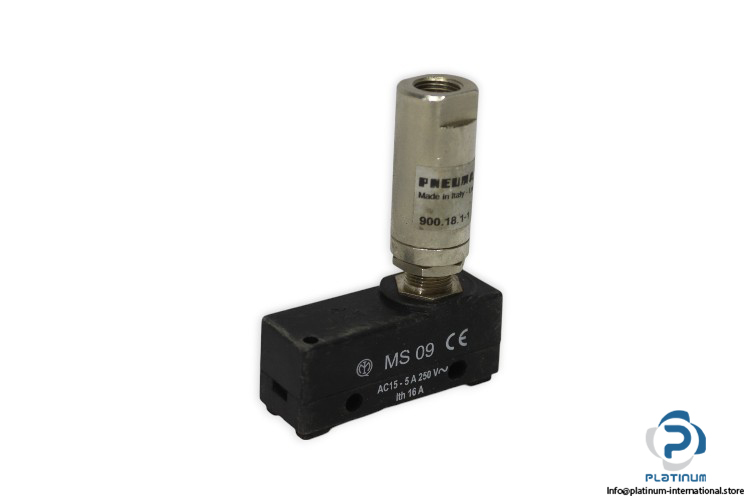

Pizzato MS 09 Microswitch with M10 x 0.75 threaded plunger, 250V AC15, 16 A thermal current, and high switching frequency. Includes Pneumax 900.18.1-1 pressure switch for air systems up to 10 bar.

Производитель

PIZZATO

SKU

1085823

Категория

Limit Switches

Состояние

Б/у

09 10 900.18.1-1 Automation bar Components Electro-Mechanical G1/8 Industrial IP40 M10 Microswitch ms Pizzato Plunger Pneumatic Pneumax Port Pressure Switch Threaded

Огромный ассортимент

Глобальная доставка

Экспертная поддержка

Гарантия качества

PIZZATO MS 09 MICROSWITCH WITH THREADED PLUNGER

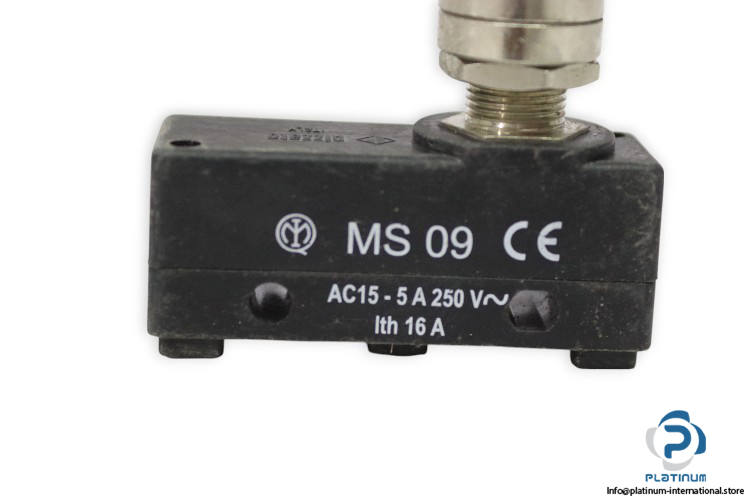

The Pizzato MS 09 is a compact and reliable microswitch featuring a threaded M10 x 0.75 plunger, designed for precise mechanical control in automation systems. With high switching frequency and sturdy build, it's suitable for a wide range of industrial environments.

Manufacturer: Pizzato

Type: Microswitch with Threaded Plunger

Model: MS 09

Voltage @AC15	250 V “ 5 A
Thermal Current	16 A
Actuator	Threaded Plunger M10 x 0.75
Temperature Range	-25 to 85 °C
Max Frequency	3600 cycles/hour
Protection Class	IP20/IP40

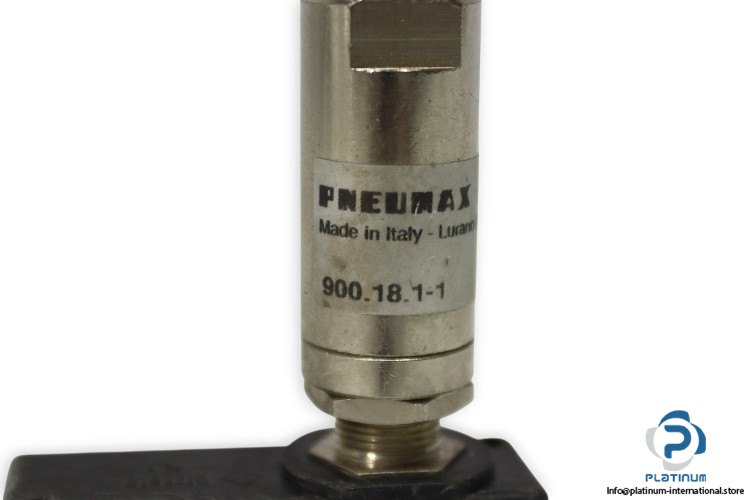

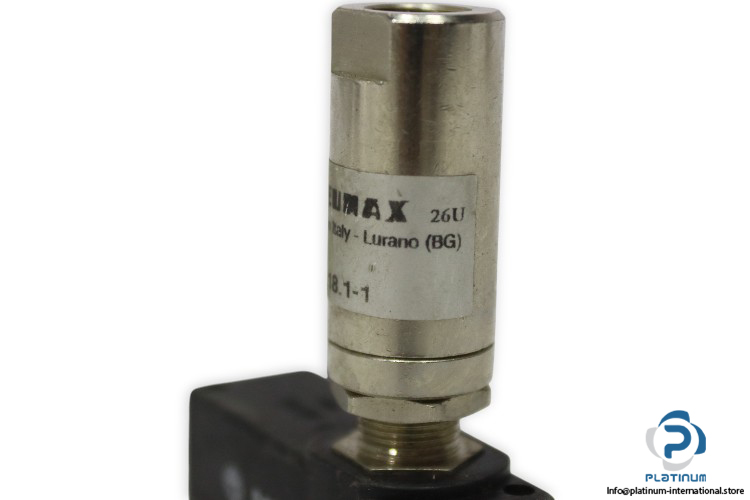

Attached Component	Pneumax 900.18.1-1 Pressure Switch
Code	26U
Fluid	Filtered and Lubricated Air
Port Size	G1/8
Temperature Range	-5 to 70 °C
Pressure Range	0.5 to 1 bar
Max Working Pressure	10 bar
Flow Rate Microswitch	13 (3) A - 220V ~
